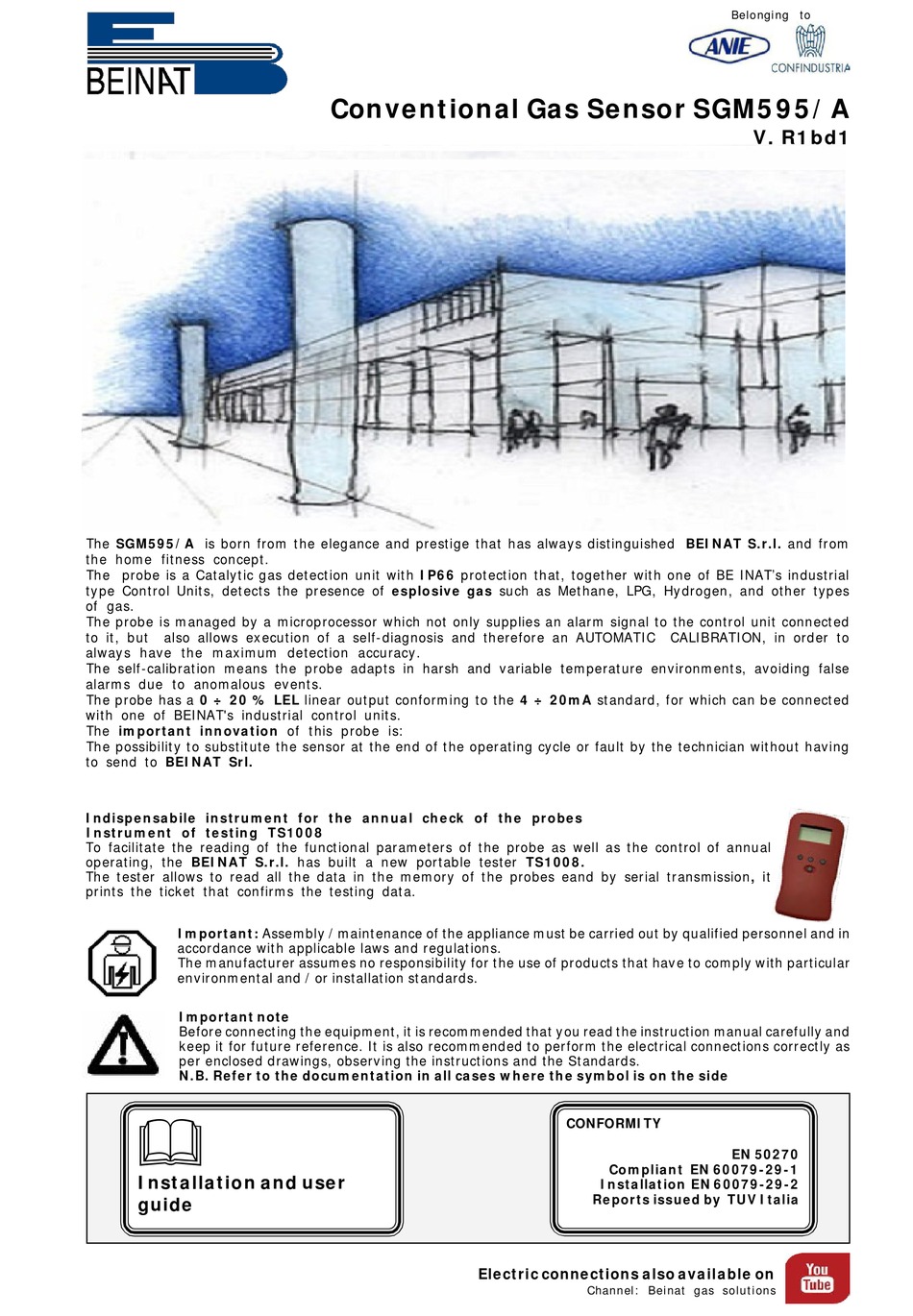

BEINAT SGM595/A Installation And User Manual

The SGM595/A is born from the elegance and prestige that has always distinguished BEINAT S.r.l. and from
the home fitness concept.

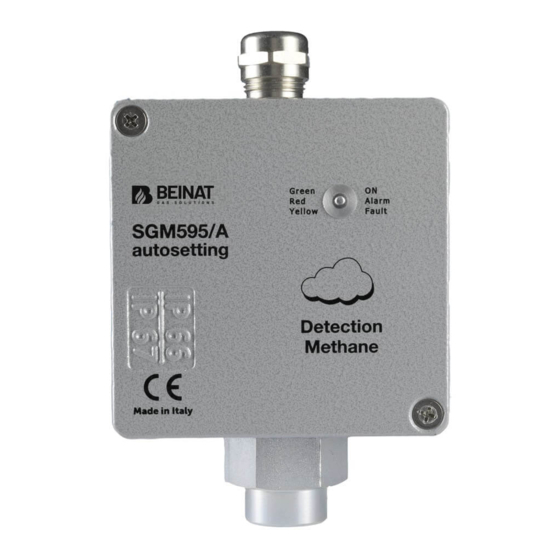

The probe is a Catalytic gas detection unit with IP66 protection that, together with one of BE INAT's industrial
type Control Units, detects the presence of esplosive gas such as Methane, LPG, Hydrogen, and other types
of gas.
The probe is managed by a microprocessor which not only supplies an alarm signal to the control unit connected
to it, but also allows execution of a self-diagnosis and therefore an AUTOMATIC
always have the maximum detection accuracy.
The self-calibration means the probe adapts in harsh and variable temperature environments, avoiding false
alarms due to anomalous events.
The probe has a 0 ÷ 20 % LEL linear output conforming to the 4 ÷ 20mA standard, for which can be connected
with one of BEINAT's industrial control units.
The important innovation of this probe is:
The possibility to substitute the sensor at the end of the operating cycle or fault by the technician without having
to send to BEINAT Srl.
Indispensabile instrument for the annual check of the probes
Instrument of testing TS1008
To facilitate the reading of the functional parameters of the probe as well as the control of annual
operating, the BEINAT S.r.l. has built a new portable tester TS1008.
The tester allows to read all the data in the memory of the probes eand by serial transmission, it
prints the ticket that confirms the testing data.
Important: Assembly / maintenance of the appliance must be carried out by qualified personnel and in
accordance with applicable laws and regulations.
The manufacturer assumes no responsibility for the use of products that have to comply with particular
environmental and / or installation standards.
Important note
Before connecting the equipment, it is recommended that you read the instruction manual carefully and
keep it for future reference. It is also recommended to perform the electrical connections correctly as
per enclosed drawings, observing the instructions and the Standards.
N.B. Refer to the documentation in all cases where the symbol is on the side

Installation and user
guide
Conventional Gas Sensor SGM595/A
Electric connections also available on
Belonging to
CALIBRATION, in order to
CONFORMITY
EN 50270
Compliant EN 60079-29-1
Installation EN 60079-29-2
Reports issued by TUV Italia
Channel: Beinat gas solutions
V. R1bd1
