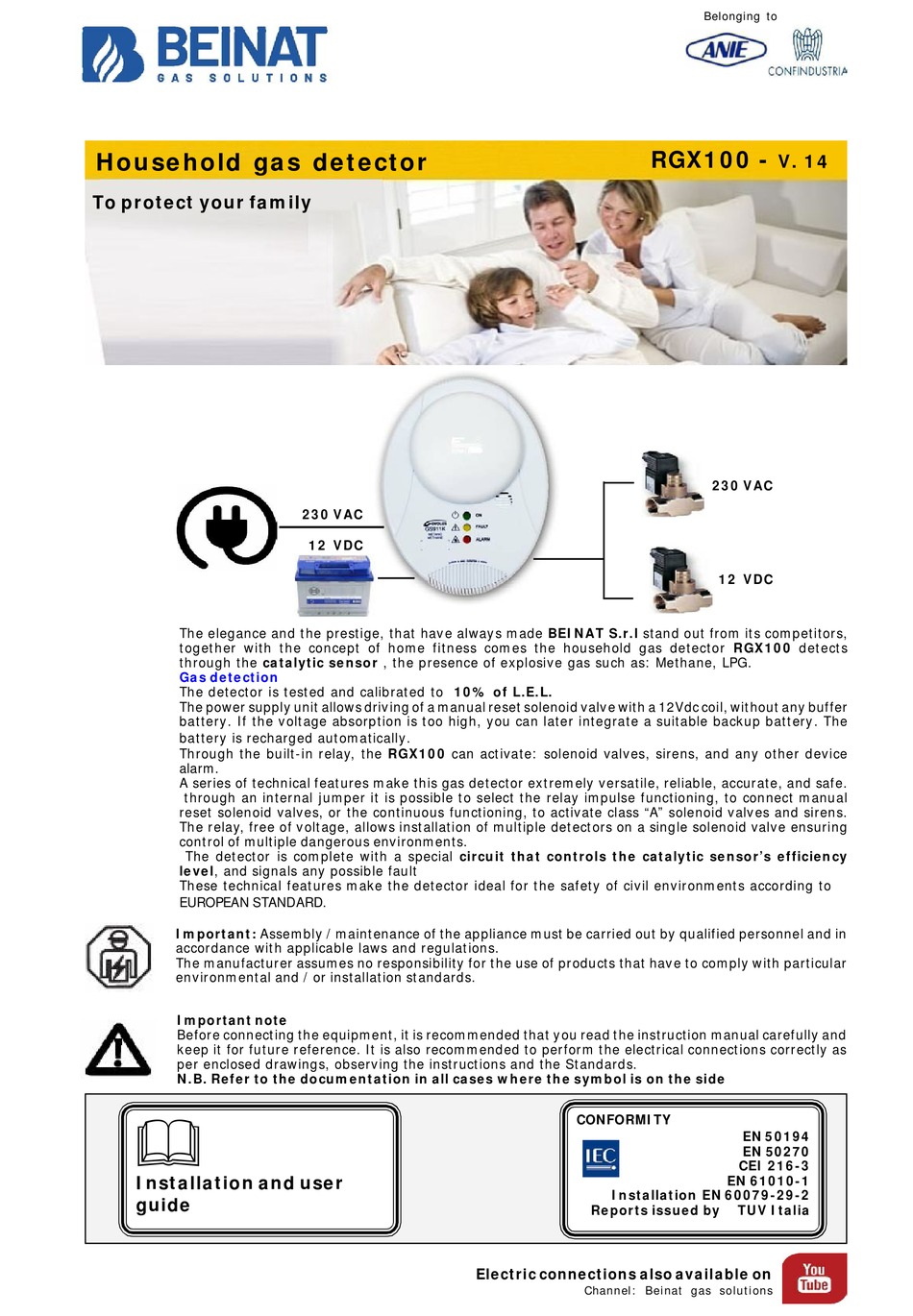

Household gas detector
To protect your family
The elegance and the prestige, that have always made BEINAT S.r.l stand out from its competitors,
together with the concept of home fitness comes the household gas detector RGX100 detects
through the catalytic sensor , the presence of explosive gas such as: Methane, LPG.
Gas detection
The detector is tested and calibrated to 10% of L.E.L.
The power supply unit allows driving of a manual reset solenoid valve with a 12Vdc coil, without any buffer
battery. If the voltage absorption is too high, you can later integrate a suitable backup battery. The
battery is recharged automatically.
Through the built-in relay, the RGX100 can activate: solenoid valves, sirens, and any other device
alarm.
A series of technical features make this gas detector extremely versatile, reliable, accurate, and safe.
through an internal jumper it is possible to select the relay impulse functioning, to connect manual
reset solenoid valves, or the continuous functioning, to activate class "A" solenoid valves and sirens.
The relay, free of voltage, allows installation of multiple detectors on a single solenoid valve ensuring
control of multiple dangerous environments.
The detector is complete with a special circuit that controls the catalytic sensor's efficiency
level, and signals any possible fault
These technical features make the detector ideal for the safety of civil environments according to
EUROPEAN STANDARD.
Important: Assembly / maintenance of the appliance must be carried out by qualified personnel and in
accordance with applicable laws and regulations.
The manufacturer assumes no responsibility for the use of products that have to comply with particular
environmental and / or installation standards.
Important note
Before connecting the equipment, it is recommended that you read the instruction manual carefully and
keep it for future reference. It is also recommended to perform the electrical connections correctly as
per enclosed drawings, observing the instructions and the Standards.
N.B. Refer to the documentation in all cases where the symbol is on the side
Installation and user
guide
230 VAC
12 VDC
CONFORMITY
Installation EN 60079-29-2
Reports issued by
Electric connections also available on
Channel: Beinat gas solutions
Belonging to
RGX100 -
V. 14
230 VAC
12 VDC
EN 50194
EN 50270
CEI 216-3
EN 61010-1
TUV Italia
Advertisement
Related Manuals for BEINAT RGX100
Summary of Contents for BEINAT RGX100
- Page 1 12 VDC 12 VDC The elegance and the prestige, that have always made BEINAT S.r.l stand out from its competitors, together with the concept of home fitness comes the household gas detector RGX100 detects through the catalytic sensor , the presence of explosive gas such as: Methane, LPG.
- Page 2 Dimensions ........................... 115x150x52 Functional Features Of Gas Sensors The installation of the RGX100 detector, its ordinary and extraordinary maintenance, and its out of service removal at the end of the functional life guaranteed by the manufacturer, must be carried out by authorized and/or specialized personnel.
- Page 3 Components and Commands Year 2018 Applicare Etichetta di scadenza 1 2 3 4 5 6 7 12 V BATTERY 1) MAINS connected indication LED (ON). 2) FAULT indication LED. If this LED turns on, it means that the gas detection catalytic sensor is not working efficiently and must be replaced by an authorized service center.
- Page 4 Carefully follow the instructions and the connections according to Regulations in force. An automatic disconnetting switch (appropriately identified as the detector sectioning device) must be incorporated in the electrical system, suitably located and easily accessible. Diagram of the Detector RGX100 1) Closed the relay works in pulsed Mode.
- Page 5 Electrical Connections Normaly open solenoid valve 12VDC ATTENTION ! Relay is voltage free The power supply is 2307240 VAC. with a buffer battery 12VDC 1.2Ah MAX 230/240 VAC Solenoid valve NA 12 VDC Normaly open solenoid valve 12VDC ATTENTION ! Relay is voltage free The power supply is 230/240 VAC.
- Page 6 Following the suggestions in this section you will get a high accuracy combined with a total absence of false alarms. The RGX100 is an equipment adapted to be mounted externally on a wall. Installing, it is fine to use ordinary care that requires an electronic device, and then: - Install the detector away from sources of excessive heat.
- Page 7 Check the scheme of connection. If RGX100 is connected to a Solenoid valves 12 VDC and does not work. To RGX100 you can not connect directly solenoid valves, sirens in 12 VDC. It must always to use to an external supply.
-
Page 8: Disposal Of Old Electrical & Electronic Equipment
Dealer Stamp Purchase Date: Registration Number : Beinat S.r.l. following the targhet to improve its products, reserves the right to modify the technical features, aesthetic and functional any time without prior notice.. BEINAT S.r.l. Via Fatebenefratelli 122/C 10077, S. Maurizio C/se (TO) - ITALY Tel.
