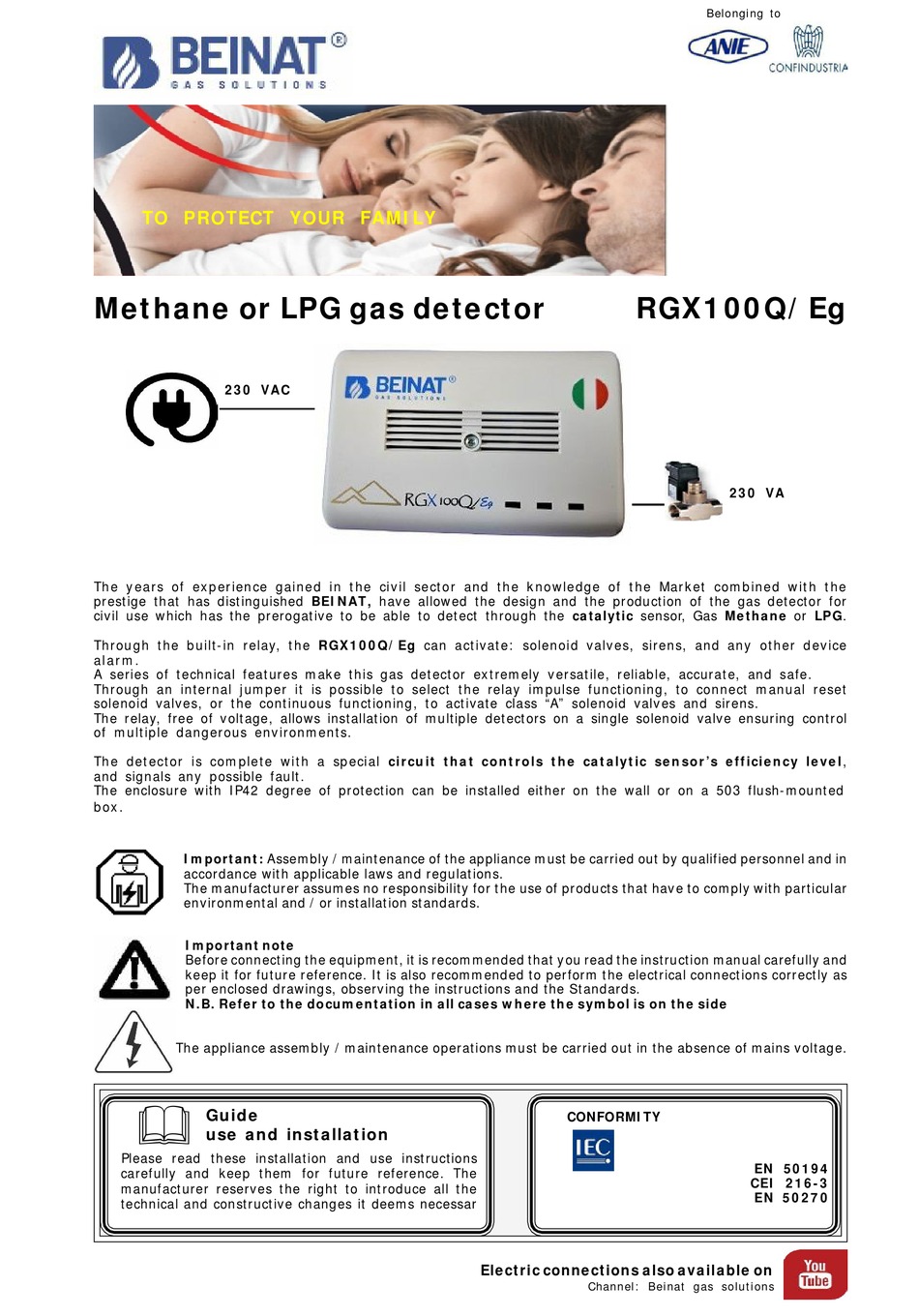

TO PROTECT YOUR FAMILY

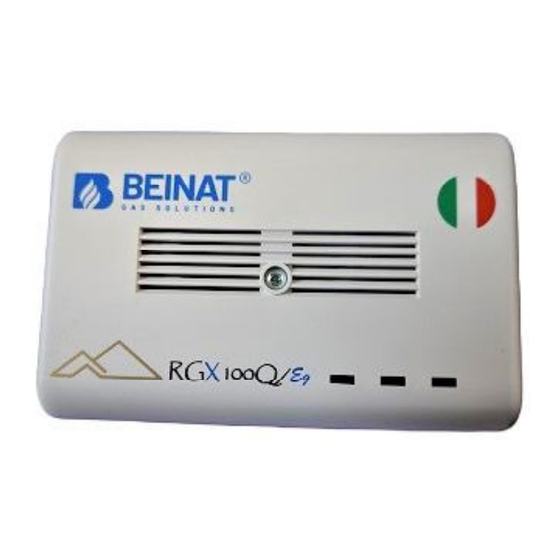

Methane or LPG gas detector
230 VAC
The years of experience gained in the civil sector and the knowledge of the Market combined with the
prestige that has distinguished BEINAT, have allowed the design and the production of the gas detector for
civil use which has the prerogative to be able to detect through the catalytic sensor, Gas Methane or LPG.
Through the built-in relay, the RGX100Q/Eg can activate: solenoid valves, sirens, and any other device
alarm.
A series of technical features make this gas detector extremely versatile, reliable, accurate, and safe.
Through an internal jumper it is possible to select the relay impulse functioning, to connect manual reset
solenoid valves, or the continuous functioning, to activate class "A" solenoid valves and sirens.
The relay, free of voltage, allows installation of multiple detectors on a single solenoid valve ensuring control
of multiple dangerous environments.
The detector is complete with a special circuit that controls the catalytic sensor's efficiency level,
and signals any possible fault.
The enclosure with IP42 degree of protection can be installed either on the wall or on a 503 flush-mounted
box.
Important: Assembly / maintenance of the appliance must be carried out by qualified personnel and in
accordance with applicable laws and regulations.
The manufacturer assumes no responsibility for the use of products that have to comply with particular
environmental and / or installation standards.
Important note
Before connecting the equipment, it is recommended that you read the instruction manual carefully and
keep it for future reference. It is also recommended to perform the electrical connections correctly as
per enclosed drawings, observing the instructions and the Standards.
N.B. Refer to the documentation in all cases where the symbol is on the side
The appliance assembly / maintenance operations must be carried out in the absence of mains voltage.
Guide
use and installation
Please read these installation and use instructions
carefully and keep them for future reference. The
manufacturer reserves the right to introduce all the
technical and constructive changes it deems necessar
RGX100Q/Eg
CONFORMITY
Electric connections also available on
Channel: Beinat gas solutions
Belonging to
230 VA
EN 50194
CEI 216-3
EN 50270
Advertisement
Table of Contents
Related Manuals for BEINAT RGX100Q/Eg
Summary of Contents for BEINAT RGX100Q/Eg
- Page 1 The years of experience gained in the civil sector and the knowledge of the Market combined with the prestige that has distinguished BEINAT, have allowed the design and the production of the gas detector for civil use which has the prerogative to be able to detect through the catalytic sensor, Gas Methane or LPG.
- Page 2 INSTALLATION When performing the installation, please remind that if you pierce the RGX100Q/Eg container, it will lose its properties and its conformity to REGULATIONS. TERMS and EXPECTATIONS: The installation of the RGX100Q/Eg detector, its ordinary and extraordinary maintenance, and its out of service removal at the end of the functional life guaranteed by the manufacturer, must be carried out by authorized and/or specialized personnel.
- Page 3 Dimensions 37 mm Rear view 5 mm 83 mm Fixing holes Pass cables 120 mm Wall installation Pass cables Installation on 503 box The installation of the detector does not exempt from ..The compliance with all regulations concerning the characteristics, installation and use of gas appliances.
- Page 4 Components and commands 6) Gas Sensor 7) Buzzer 5) Relay work mode jumper 1) Power led 8) Connection terminal block 2) Fault LED 3) Alarm Led 4) Test button 1) MAINS connected indication LED (ON). 2) FAULT LED and decadence of the functioning period If this LED turns on, it means that the gas detection catalytic sensor is not working efficiently and must be replaced by an authorized service center.
- Page 5 Following the suggestions in this section you will get a high accuracy combined with a total absence of false alarms. The RGX100Q/Eg is an equipment adapted to be mounted externally on a wall. Installing, it is fine to use ordinary care that requires an electronic device, and then: - Install the detector away from sources of excessive heat.
- Page 6 Electrical connections WARNING Before connecting to the mains power, ensure the voltage is correct. Carefully follow the instructions and the connections according to Regulations in force. An automatic disconnetting switch (appropriately identified as the detector sectioning device) must be incorporated in the electrical system, suitably located and easily accessible. Principle Schemes of the Detector ATTENTION ! The relay is voltage free...
- Page 7 Check the scheme of connection If RGX100Q/Eg is connected to a Solenoid valves 12V.cc and does not work. To RGX100Q/Eg you can not connect directly solenoid valves, sirens in 12V DC. It must always to use to an external supply.
- Page 8 Dealer Stamp Purchase Date: Registration Number : Beinat S.r.l. following the targhet to improve its products, reserves the right to modify the technical features, aesthetic and functional any time without prior notice.. BEINAT S.r.l. Via Fatebenefratelli 122/C 10077, S. Maurizio C/se (TO) - ITALY Tel.
