• ºF or ºC configurable, Child Lock Function, Large LCD display, Backlight.
• Heat and Cool set point storage, 5+2 Programmable
• Display of room temperature, set temperature and current time simultaneously.
• Fan switch ON and AUTO.
• Permanent user setting retention during power loss. No batteries are required.
• Apply to 24VAC or 2 *AA alkaline batteries power supply.
• Air Filter change Indicator, Low Battery Indicator, Temperature calibration.
• 4- or 5-wire compatible (C is optional for non-heat pump systems)
• Manual Changeover / Fan Switch, Easy operation friendly.
• Mercury-Free, Environmentally Safe
• Built-in compressor protection,
Power Supply
Terminal Load
Set Point Temp. Range
Accuracy
Dimensions
Color
Installation Hole Distance
○
10

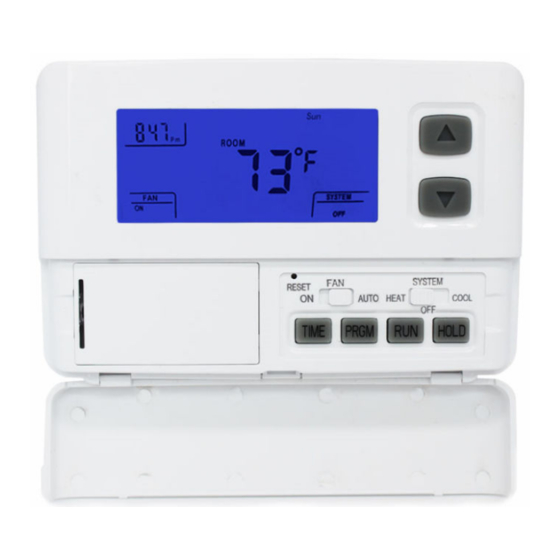

Programmable Single Stage Thermostat
Installation and Operation Manual
Features
IC= Intelligence Energy Management Recovery (EMR) Function
Specification
Display
Identify System Type
1 Heat / 1 Cool single stage thermostat.
5+2 Programmable, Compatible with heat pump system
****************************************************
This thermostat is compatible with the following systems:
• Gas, oil, Propane or electric furnace
• Central air conditioner
• Geo Thermal / Hot water system with or without pump
• Millivolt system
• Central heating and cooling system
• Heat pump without auxiliary/backup heat
• Forced Air / In-Floor Radiant / Radiator system
20VAC-30VAC 50-60HZ or Battery powered.
1.0A per terminal, 3.0A maximum total load
45ºF to 90ºF (7ºC to 32ºC).
+/- 1ºF or +/- 0.5ºC.
6.0" W X 4.7" H X 1.1" D/152.5x120x28mm
White
3.37
"/85.5mm Horizontal and 3 1/4
or 2.36"/60mm Horizontal
Time Room Temperature Setting Temperature
/ Heating/Cooling Output Heat/Off/Cool Mode Indicate
Low Battery Indicate
Fan Status
Program Period
○
10
- 1 -
Reference No.: HTW-ST01-B
( 83 mm)Vertical
"
Compressor Timing Delay
Version 2019-1.0
Advertisement
Table of Contents
Related Manuals for HOTOWELL HTW-ST01-B
Summary of Contents for HOTOWELL HTW-ST01-B
- Page 1 Programmable Single Stage Thermostat Reference No.: HTW-ST01-B Installation and Operation Manual Identify System Type 1 Heat / 1 Cool single stage thermostat. 5+2 Programmable, Compatible with heat pump system **************************************************** This thermostat is compatible with the following systems: • Gas, oil, Propane or electric furnace •...
-
Page 2: Remove Old Thermostat
Programmable Single Stage Thermostat Reference No.: HTW-ST01-B Installation ********************************Remove Old Thermostat******************************** 1.Turn Off the Power To ensure the power to your heating and cooling system has been turned off, try to turn on heating or cooling by changing the temperature on your old thermostat 2. - Page 3 Programmable Single Stage Thermostat Reference No.: HTW-ST01-B 4. Identify jumper wire On your old thermostat, if… Then, on your new thermostat… Terminal RC and RH are connected with a jumper wire Leave the jumper wire in its place There’s only one R wire (RC, RH, R or R5) coming out of the wall...
- Page 4 Programmable Single Stage Thermostat Reference No.: HTW-ST01-B ******************************Check Thermostat Operation****************************** Fan operation If your system does not have a G terminal connection, skip to 5.2 Heating system. Move FAN switch to ON position. The blower should begin to operate. Move FAN switch to AUTO position. The blower should stop immediately.
- Page 5 Programmable Single Stage Thermostat Reference No.: HTW-ST01-B Thermostat Operation Setting the temperature Set the SYSTEM switch to either HEAT or COOL, then press the ▲ or ▼ button until the temperature you want to maintain is shown on the right side of the display. If you want to turn the system off, just move the SYSTEM switch to the OFF position and the FAN switch to the AUTO position.
- Page 6 Programmable Single Stage Thermostat Reference No.: HTW-ST01-B Select system heating type: 0 = Gas, oil, or electric heating. HO (0) 0 or 1 PRGM 1 = Heat pump heating. Default = 0 Select display backlight : (1) = OFF. (2) = 30 seconds on any button push.
- Page 7 Programmable Single Stage Thermostat Reference No.: HTW-ST01-B Example: You select EMR and have your heating programmed to 65° at night and 70° at 7 AM. If the building temperature is 65° the difference between 65° and 70° is 5°. Allowing 5 minutes per degree the thermostat set-point will change to 70° at 6:35 AM.
- Page 8 Programmable Single Stage Thermostat Reference No.: HTW-ST01-B Weekdays (5 days) Saturday and Sunday Mode Period Start Time Temperature Start Time Temperature —WAKE --LEAVE Heat --RETURN --SLEEP —WAKE --LEAVE Cool --RETURN --SLEEP ************************ *********************** Enter the Heating/Cooling Program Move the SYSTEM switch to the HEAT/COOL position.
