Luxul XAP-1020 Quick Install Manual

Luxul XAP-1020 Quick Install Manual

Low profi le 802.11b/g/n wireless access point
Hide thumbs Also See for XAP-1020:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

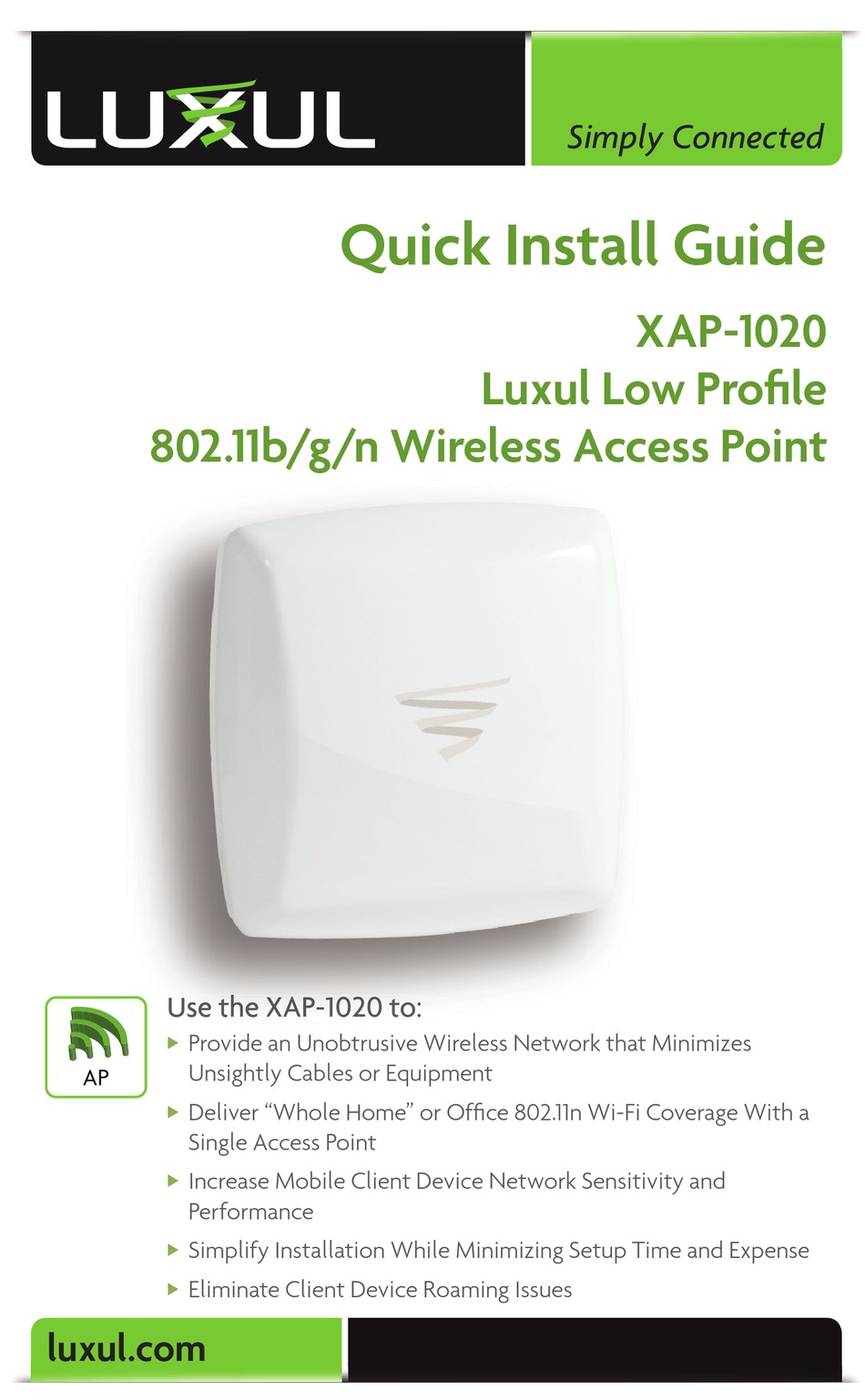

802.11b/g/n Wireless Access Point
Use the XAP-1020 to:
Use the XAP-1020 to:
Provide an Unobtrusive Wireless Network that Minimizes
Unsightly Cables or Equipment
AP
Deliver "Whole Home" or Offi ce 802.11n Wi-Fi Coverage With a
Single Access Point
Increase Mobile Client Device Network Sensitivity and
Performance
Simplify Installation While Minimizing Setup Time and Expense
Eliminate Client Device Roaming Issues
luxul.com
Quick Install Guide
Luxul Low Profi le
Simply Connected
XAP-1020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XAP-1020 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Luxul XAP-1020

Summary of Contents for Luxul XAP-1020

  • Page 1 Simply Connected Quick Install Guide XAP-1020 Luxul Low Profi le 802.11b/g/n Wireless Access Point Use the XAP-1020 to: Use the XAP-1020 to: Provide an Unobtrusive Wireless Network that Minimizes  Unsightly Cables or Equipment Deliver “Whole Home” or Offi ce 802.11n Wi-Fi Coverage With a ...

  • Page 2: Document Conventions

    (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. © Copyright 2014 Luxul. All rights reserved. Trademarks & Registered Trademarks are property of respective holders.

  • Page 3: Site Preparation

    1.1 WARNINGS Read all installation instructions and site survey reports, and verify correct equip-  ment installation before connecting the XAP-1020 to its power source. Remove jewelry and watches before installing this equipment.  Verify that the unit is grounded before connecting it to the power source.

  • Page 4: Package Contents

    The XAP-1020 contains no user-serviceable parts. If the access point is not  working properly, contact your dealer and ask for help. DO NOT attempt to disassemble the access point. © Copyright 2014 Luxul. All rights reserved. Trademarks & Registered Trademarks are property of respective holders.

  • Page 5: Hardware Features And Installation

    XAP-1020 Front View Rear View The rear of the XAP-1020 provides one RJ-45 connection that is used to deliver both power and data to the access point. It also provides a reset button for restoring the access point to factory default settings and multiple options for mounting the XAP- 1020 directly on a wall or ceiling or using the adjustable wall mount bracket.

  • Page 6: Top View

    XAP-1020 Rear View Top View The top left side of the XAP-1020 has a small viewing portal for validating System LED functionality during setup and/or for diagnostic purposes. For discreet installation, all System LEDs are internal and can only be seen through this view- ing portal.

  • Page 7: Environmental Requirements

    No power, check power connections At startup, the Green Power LED will stay on while the amber LAN Link light fl ashes. The blue LED will come on once the XAP-1020 wireless radio is active. Reset Button: The Reset button is used to clear the current settings of the XAP-1020 and restore factory default settings.

  • Page 8: Hardware Installation

    Mounting the Access Point on a Wall or Ceiling The XAP-1020 can be mounted directly to a wall or ceiling; or the mounting bracket included with this kit can be used to mount the access point for more fl exible directional coverage.

  • Page 9: Connecting To The Power Source

    Quick Install Guide .75” WALL 19.05mm Screw head distance from wall when the XAP-1020 is mounted directly to the wall .197” This side Mounts against wall Antenna mount mounting plate hole pattern Antenna mount installed on the XAP-1020 Connecting to the Power Source The XAP-1020 is POE ready and supports Legacy (48v 1a), 802.3af, and 802.3at...

  • Page 10: Applying Power

    Connecting to the Internet Source Note that the Luxul device is not a router and in most installations will be con- nected to a Router or Switch in order to deliver Internet access. To do so, connect the POE injector (or switch) to the desired Internet source using another Ethernet cable.
  • Page 11 IP address of your Operating System. Login The XAP-1020 is not equipped with internal DHCP server. If connected to the Luxul XBR-2300 Enterprise Dual-WAN Router, confi guration will be automatic. Otherwise, the IP address of the computer for login and confi guration will need to be manually confi...

  • Page 12: Quick Setup

    “admin”), and then click “OK” to login to the Quick Setup window. Quick Setup For confi guration instructions download the XAP-1020 User Guide from luxul.com. For any problems during the installation or confi guration of your XAP-1020, contact support@luxul.com for help. To check for fi rmware updates visit http://luxul.com/fi rmware Information on this document supersedes all previous versions.
