Summary of Contents for Luxul XAP-1210

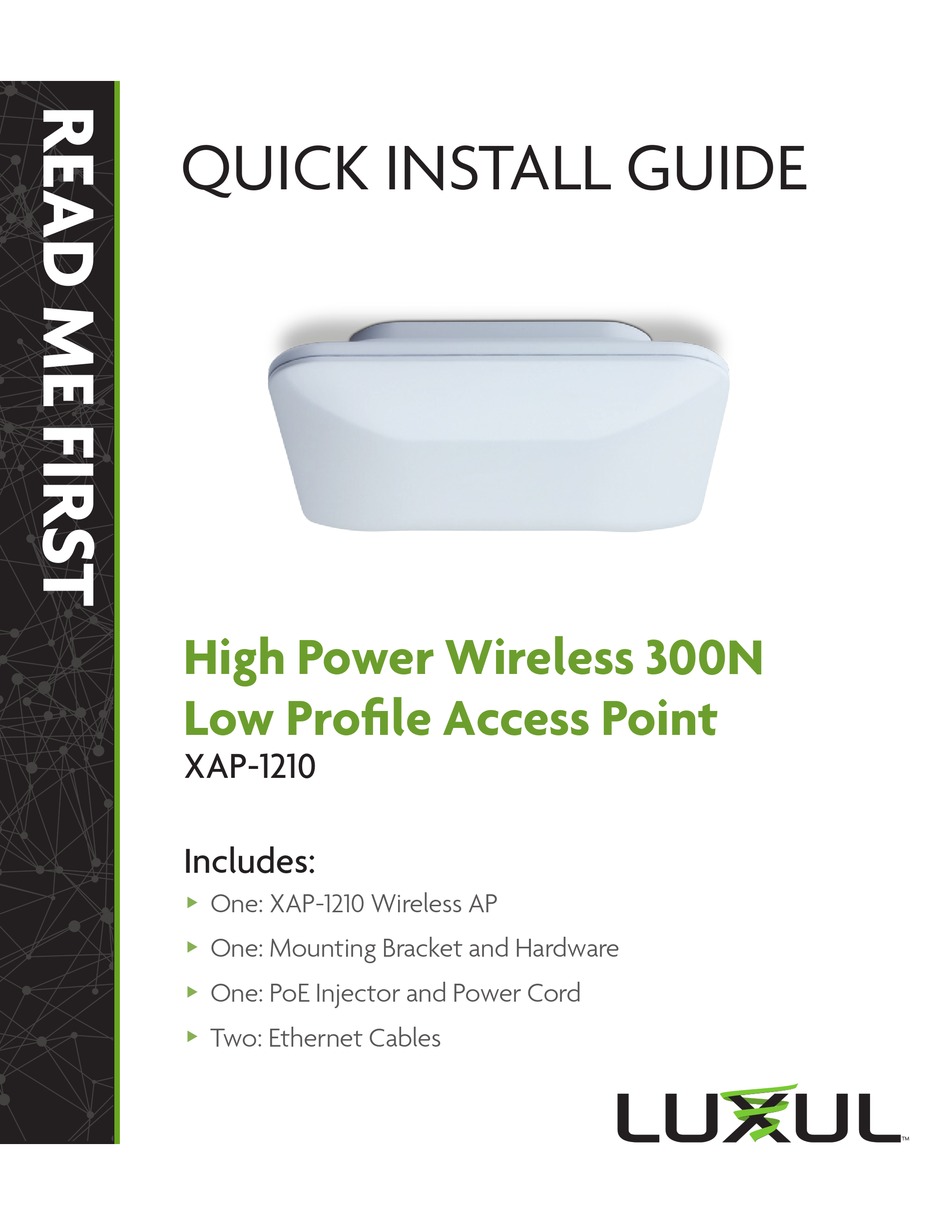

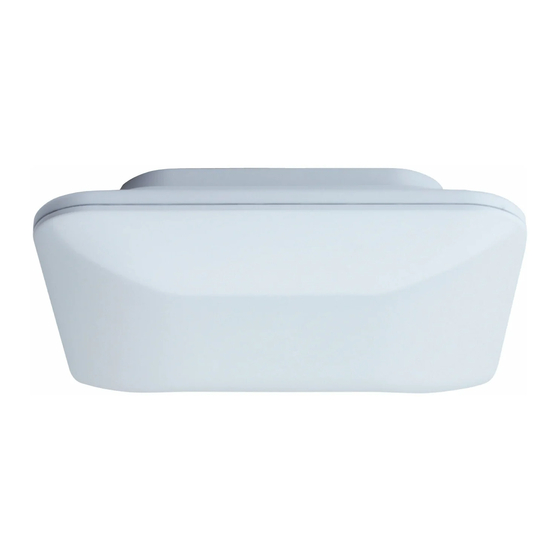

- Page 1 QUICK INSTALL GUIDE High Power Wireless 300N Low Profile Access Point XAP-1210 Includes: One: XAP-1210 Wireless AP „ One: Mounting Bracket and Hardware „ One: PoE Injector and Power Cord „ Two: Ethernet Cables „...
-
Page 2: Physical Installation
READ ME FIRST - AP COMPATIBILITY This XAP-1210 is compatible with the Luxul Wireless Controller for fast, easy configuration and deployment of wireless networks with multiple APs. Note: If you’ll be using this AP with a Wireless Controller, refer to the Quick Install Guide included with the Wireless Controller for setup instructions. - Page 3 APs in the range of -60 to -70 dBm at the midway point between two APs XAP-1210 Multiple AP Coverage and Overlap Note: Consider using Ekahau HeatMapper to assist with this process, available from www.ekahau.com. Luxul also offers an informative “How-To” video on HeatMapper at luxul.com/ how-to-videos.
- Page 4 With the XAP-1210 properly mounted, plug the Ethernet cable into the RJ-45 connector on the Access Point. The XAP-1210 is PoE ready and supports 802.3af PoE. A PoE injector is included with the device. To apply power, simply connect the opposite end of the Ethernet cable to which the access point is connected to the provided PoE injector or other PoE switch or injector.
- Page 5 Preparing for Access IP Addressing If the XAP-1210 is connected to a network with a 192.168.0.X address scheme, and your computer shares a similar address on the same network, you can skip to the next step, Access and Setup .
- Page 6 Note: If another device on your network shares the 192.168.0.10 address, you’ll need to temporarily reassign or remove that device while you configure the XAP-1210. Note: The XAP-1210 is not a router and will need to be connected to a network with a router in order to deliver Internet access.
-
Page 7: Led Indicators
Reset button. To Restore the Default Settings: With the XAP-1210 powered on, press and hold the Reset button for 15 seconds. Release the button and the XAP-1210 will be set to factory defaults. CAUTION: Pressing and holding the Reset button will restore the AP... -
Page 8: Technical Support
Luxul product. © Copyright 2015 Luxul. All rights reserved. The name Luxul, the Luxul logo, the Luxul logo mark and Simply Connected are all trademarks and or registered trademarks of Luxul Wireless, Inc. All other trademarks and registered trademarks are property of their respective holders.
