Luxul XAP-1020 User Manual

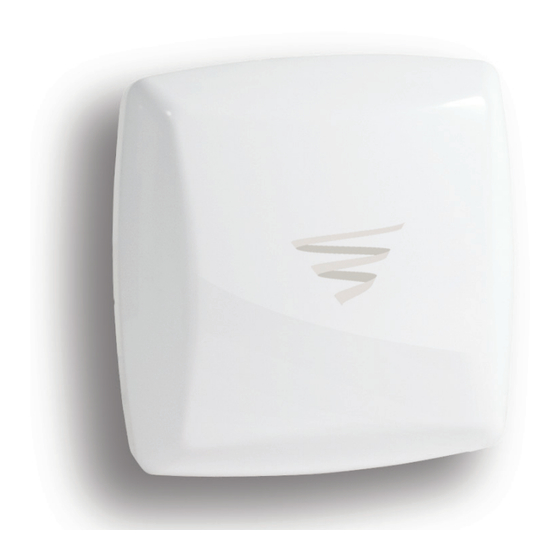

Low profi le 802.11b/g/n wireless access point
Hide thumbs Also See for XAP-1020:
Table of Contents

Advertisement

Quick Links

Download this manual
802.11b/g/n Wireless Access Point
Use the XAP-1020 to:
Use the XAP-1020 to:
Provide an Unobtrusive Wireless Network that Minimizes
Unsightly Cables or Equipment
AP
Deliver "Whole Home" or Offi ce 802.11n Wi-Fi Coverage With a
Single Access Point
Increase Mobile Client Device Network Sensitivity and
Performance
Simplify Installation While Minimizing Setup Time and Expense
Eliminate Client Device Roaming Issues
luxul.com
Simply Connected

User Guide

XAP-1020
Luxul Low Profi le

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XAP-1020 and is the answer not in the manual?

Questions and answers

Related Manuals for Luxul XAP-1020

Summary of Contents for Luxul XAP-1020

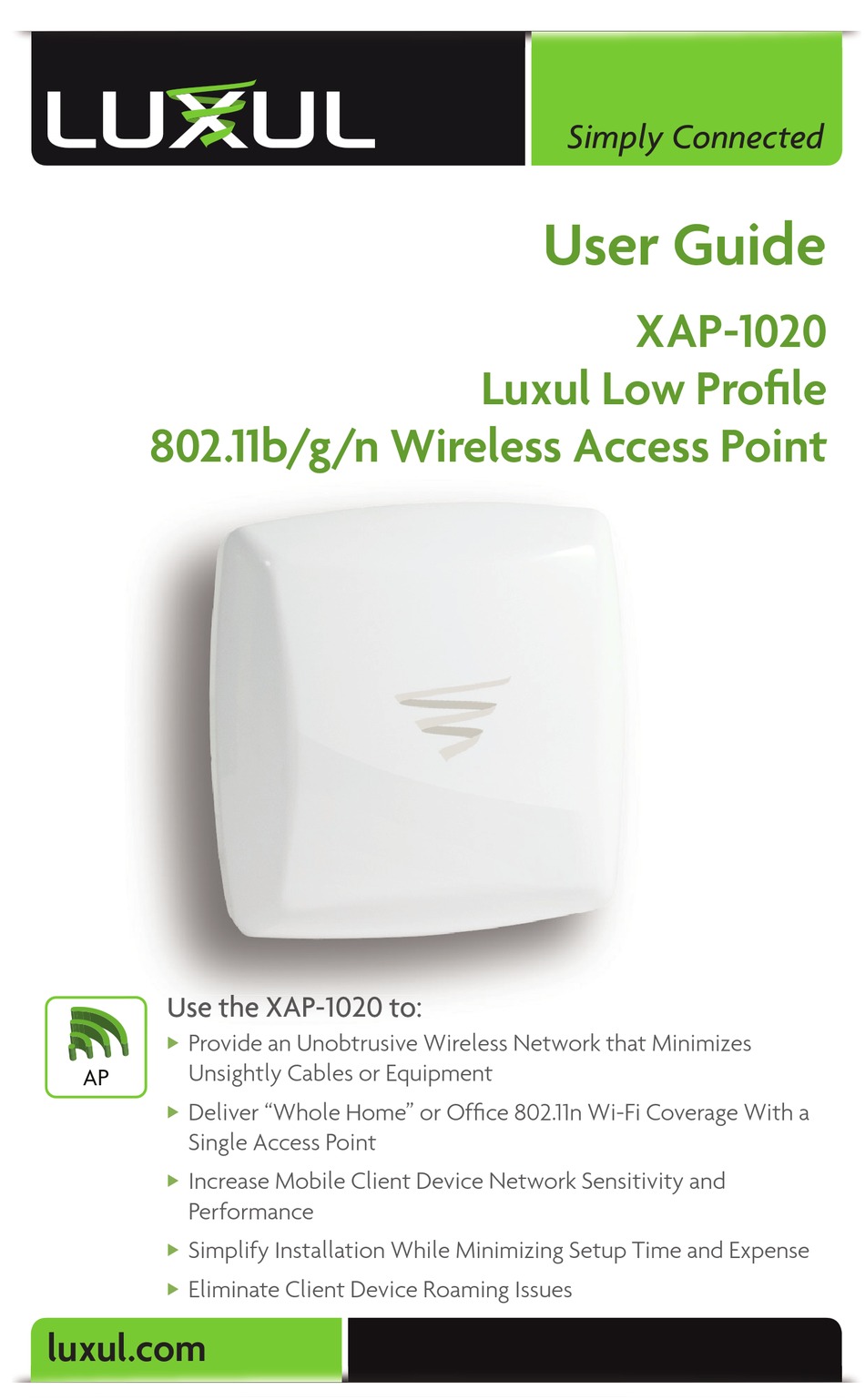

  • Page 1: User Guide

    Simply Connected User Guide XAP-1020 Luxul Low Profi le 802.11b/g/n Wireless Access Point Use the XAP-1020 to: Use the XAP-1020 to: Provide an Unobtrusive Wireless Network that Minimizes  Unsightly Cables or Equipment Deliver “Whole Home” or Offi ce 802.11n Wi-Fi Coverage With a ...

  • Page 2: Document Conventions

    (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. © Copyright 2014 Luxul. All rights reserved. Trademarks & Registered Trademarks are property of respective holders.

  • Page 3: Table Of Contents

    User Guide CONTENTS 1 INTRODUCTION 1.1 Warnings 1.2 Site Preparation 2 XAP-1020 SPECIFICATIONS 3 GETTING STARTED 3.1 System Requirements 3.2 Package Contents 3.3 Safety Information 4 HARDWARE FEATURES AND INSTALLATION 4.1 Front View 4.2 Rear View 4.3 Top View 4.4 Environmental Requirements 4.5 Hardware Installation...

  • Page 4: Introduction

    Easy 3 Step Setup through Web-based User Interface  Installs Discreetly on Wall or Ceiling  Enabled for Maximum Compatibility and Performance with Other Luxul Products  © Copyright 2014 Luxul. All rights reserved. Trademarks & Registered Trademarks are property of respective holders.

  • Page 5: Warnings

    1.1 Warnings Read all installation instructions and site survey reports, and verify correct equip-  ment installation before connecting the XAP-1020 to its power source. Remove jewelry and watches before installing this equipment.  Verify that the unit is grounded before connecting it to the power source.
  • Page 6 Storage: -40°F to 158°F (-40°C to 70°C)  Operating Humidity 5% to 95% (Non-condensing)  Mechanical Dimensions WxHxD: 5.5”(139.7mm) x 5.5”(139.7mm) x  1.5”(38.1mm) © Copyright 2014 Luxul. All rights reserved. Trademarks & Registered Trademarks are property of respective holders.

  • Page 7: Getting Started

    3.3 Safety Information To maintain the safety of users and property, follow these safety instructions: The XAP-1020 wireless access point is designed for indoor use only. DO NOT  place this access point outdoors. If you require an outdoor access point, please consider the Luxul XAP-1040.

  • Page 8: Hardware Features And Installation

    XAP-1020 Front View 4.2 Rear View The rear of the XAP-1020 provides one RJ-45 connection that is used to deliver both power and data to the access point. It also provides a reset button for restoring the © Copyright 2014 Luxul. All rights reserved. Trademarks & Registered Trademarks are property of respective holders.

  • Page 9: Rear View

    To Restore the Default Settings: With the XAP-1020 powered on, press and hold the Reset button for 15 seconds. When all the LEDs except the power LED turn off, release the reset button. The power LED will stay solid. The XAP-1020 will be set to factory defaults.

  • Page 10: Top View

    User Guide 4.3 Top View The top left side of the XAP-1020 has a small viewing portal for validating System LED functionality during setup and/or for diagnostic purposes. For discreet installa- tion, all System LEDs are internal and can only be seen through this viewing portal.

  • Page 11: Environmental Requirements

    No power, check power connections At startup, the Green Power LED will stay on while the amber LAN Link light fl ashes. The blue LED will come on once the XAP-1020 wireless radio is active. 4.4 Environmental Requirements Ethernet cable to provide Power and Data to the XAP-1020.
  • Page 12 4.5.2 Mounting the Access Point on a Wall or Ceiling The XAP-1020 can be mounted directly to a wall or ceiling; or the mounting bracket included with this kit can be used to mount the access point for more fl exible directional coverage.
  • Page 13 Antenna mount installed on the XAP-1020 4.5.3 Connecting to the Power Source The XAP-1020 is POE ready and supports Legacy (48v 1a), 802.3af, and 802.3at POE injectors. A POE injector is included with the device. To apply power, simply connect the opposite end of the Ethernet cable to which the access point is already connected to the provided POE injector or other POE switch or injector.

  • Page 14: Applying Power

    User Guide 4.5.4 Connecting to the Internet Source Note that the Luxul device is not a router and in most installations will be con- nected to a Router or Switch in order to deliver Internet access. To do so, connect the POE injector (or switch) to the desired Internet source using another Ethernet cable.

  • Page 15: Configuration

    5 CONFIGURATION 5.1 Login The XAP-1020 is not equipped with internal DHCP server. If connected to the Luxul XBR-2300 Enterprise Dual-WAN Router, IP address confi guration will be automatic. Otherwise, the IP address of the computer for login and confi guration will need to be manually confi...

  • Page 16: Quick Setup

    Quick Setup: For most installations, it is expected that the Quick Setup page will be suffi cient to optimally confi gure and deploy the XAP-1020 Wi-Fi network. The Quick Setup page consists of the following: © Copyright 2014 Luxul. All rights reserved. Trademarks & Registered Trademarks are property of respective holders.
  • Page 17 IP Address: An IP address is a numerical label assigned to each device on the net-  work. This fi eld shows the IP address that is assigned to the XAP-1020. To ensure plug and play capability with other Luxul networking products, the IP Address is automatically defaulted to 192.168.0.11.
  • Page 18 To change the SSID of the wireless network, simply type the desired name, click Save, and then Reboot for the change to take effect. © Copyright 2014 Luxul. All rights reserved. Trademarks & Registered Trademarks are property of respective holders.
  • Page 19 User Guide Security Mode: Sets the wireless security encryption mode. It is HIGHLY  recommended to change the Security Mode and use the highest security level supported by the client devices in the network. In most wireless networks, WPA/ WPA2 Personal is an excellent option that will support the largest cross section of client devices.

  • Page 20: Wireless

    The default (and recommended) setting is 20 MHz to provide maximum perfor- mance to all client devices and to avoid any potential client issues. © Copyright 2014 Luxul. All rights reserved. Trademarks & Registered Trademarks are property of respective holders.
  • Page 21 User Guide Channel: This fi eld allows the user to set which 2.4GHz channel to use. The  default is set to Channel 6 and is the recommended setting due to the Access Point being optimized to run on Channel 6. However, any other channel (1-11) may be selected.

  • Page 22: Bridge Setup

    NOTE: If no Network Name (SSID) is specifi ed, the profi le is not active. 5.4 Bridge Setup 5.4.1 Client Mode Client: Connects to an existing wireless network as a client device  © Copyright 2014 Luxul. All rights reserved. Trademarks & Registered Trademarks are property of respective holders.
  • Page 23 When setting the AP in Client Mode you will enter the Name (SSID) of the Network it will connect to, the Security Mode that Network uses and the Passphrase needed to connect. Then simply click Save and Reboot to apply the changes, the Luxul AP will now connect as a client device.
  • Page 24 Bridge Clients will be able to connect. 5.4.3 Bridge Mode with Client Access Client device access when running in Bridge Mode:  © Copyright 2014 Luxul. All rights reserved. Trademarks & Registered Trademarks are property of respective holders.

  • Page 25: Administration

    User Guide To allow devices to connect to any Luxul AP in Bridge Mode we recommend setting a second SSID to allow client devices to connect. In the AP’ s management page select Wireless >> Settings, then select SSID 2 and confi gure the Client network.

  • Page 26: Firmware Upgrade

    3. Click Upgrade to perform the update CAUTION: Do not power off the access point or computer being used during the upgrade or the access point may be damaged. © Copyright 2014 Luxul. All rights reserved. Trademarks & Registered Trademarks are property of respective holders.

  • Page 27: Factory Defaults

    User Guide 5.5.2 Factory Defaults Factory Defaults: Use this page to return the XAP-1020 to the original default set- tings. Please note that using this feature will reset ALL values and custom changes or settings that have been made to default settings. It is recommended to backup current settings prior to performing a Factory Default.

  • Page 28: Qos

    WMM will be given top priority. There are 4 priority levels, from highest to lowest: 1. Voice 2. Video 3. Background 4. Best Effort 5.7 Status 5.7.1 Basic Status © Copyright 2014 Luxul. All rights reserved. Trademarks & Registered Trademarks are property of respective holders. LUX-UG-XAP-1020 073141106...

  • Page 29: Status

    User Guide Basic Status: This page displays basic setup information of the confi guration and status of the AP including: Firmware Version, Hardware Model, Uptime, Connection Type, IP Address, Subnet Mask, Default Gateway, LAN MAC Address, Wireless Mode, Wireless MAC Address, Network Name (SSID), Channel Width, Channel, and type of Security 5.7.2 Connected Clients Connected Clients: This page displays the MAC Address, Speed and Signal Strength...

  • Page 30: Health And Safety Recommendations

    Remote and Standalone Antenna Confi gurations: To comply with FCC RF expo- sure requirements, antennas that are mounted externally at remote locations or operating near users at stand-alone desktop of similar confi gurations must operate © Copyright 2014 Luxul. All rights reserved. Trademarks & Registered Trademarks are property of respective holders.

  • Page 31: Radio Frequency Interference Requirements-Fcc

    User Guide with a minimum separation distance of 20 cm from all persons. 6.3 Radio Frequency Interference Requirements—FCC This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential instal- lation.

  • Page 32: Appendix 1: Technical Support

    APPENDIX 1: TECHNICAL SUPPORT For any problems during the installation or confi guration of your XAP-1020, contact support@luxul.com for help. To check for fi rmware updates visit http://luxul.com/fi rmware Technical Support Tel: (801) 822-5450 Email: support@luxul.com Contact Information: Luxul Corporation...
