INSTRUCTION AND SAFETY MANUAL

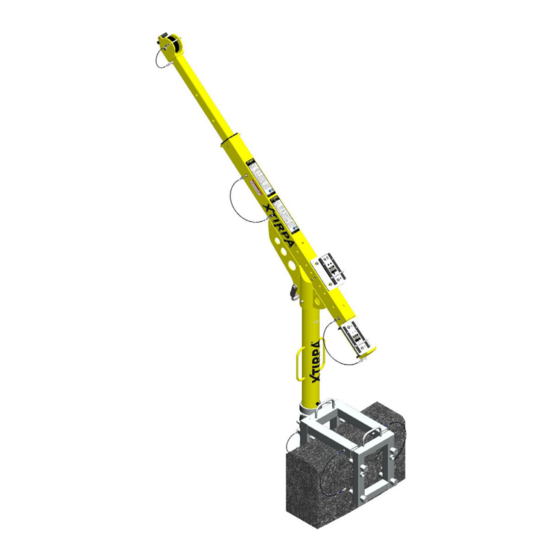

Expandable gallows system762 mm - 1219 mm
(30» - 48») XTIRPA removable adaptor for EPI
UNIVERSAL RESCUE SYSTEM
IN-8015
MUST BE READ AND UNDERSTOOD BY THE USER BEFORE EACH USE
INNOVA Public Utility Products, Inc
Inc.1040 Boulevard Industriel, Granby, Quebec, Canada
Tel (450) 777-1240 Fax (450) 372-9936 www.xtirpa.com
MU8015-012ENG rev02
1
Advertisement
Related Manuals for Innova XTIRPA IN-8015
Summary of Contents for Innova XTIRPA IN-8015
- Page 1 (30» - 48») XTIRPA removable adaptor for EPI UNIVERSAL RESCUE SYSTEM IN-8015 MUST BE READ AND UNDERSTOOD BY THE USER BEFORE EACH USE INNOVA Public Utility Products, Inc Inc.1040 Boulevard Industriel, Granby, Quebec, Canada Tel (450) 777-1240 Fax (450) 372-9936 www.xtirpa.com MU8015-012ENG rev02...
- Page 2 EC DECLARATION OF CONFORMITY (English) Manufacturer established in the community: Produits de Services Publics INNOVA inc., 1040, boul. Industriel, Granby, Québec, Canada J2J 1A4 Declares that the following PPE product : IN-8015 XTIRPA 30’’ – 48’’ (762mm - 1219mm) Mast&Davit arm system with removable adaptor for PPE...
- Page 3 XTIRPA system waiving any arising claim, right and remedy against the manufacturer. The XTIRPA IN-8015 universal rescue system, including the components: IN-2240 or IN-2313 or IN-2426 (Mast for fall arrest and recuperation); IN-2237 (Fall arrest gallows and expandable recuperation);...
- Page 4 MU8015-012ENG rev02. APAVE SUDEUROPE SAS, Headquarters: 8 rue Jean-Jacques Vernazza - ZAC Saumaty-Séon -CS 60193 - 13322 MARSEILLE CEDEX 16, is the notified body concerned by the design phase and the notified body concerned by the control phase from production. DESCRIPTION AND INTERPRETATION OF THE MARKING SYMBOLS This symbol is used to attract the user’s attention on a potential danger.
- Page 5 APPLICATION The XTIRPA system as well as its numerous components and parts (including the gallows, safety guard, removable adapter, permanent adapter, integrated mast and side entrance trolley) were engineered to be used as part of a personal protection equipment system, a protection system against falls, a work and safety positioning system, a staff management system, an equipment management system and a safeguard system to be used in isolation.
- Page 6 g) Always work in team composed of at least two (2) people: 1 agent and 1 worker in a closed space (the person attached to the cable or lifeline) who must be qualified and trained in us- ing the XTIRPA system and who must have read and understood the Instruction and Safety manual before using the XTIRPA system.
- Page 7 If you have questions related to the use, maintenance or adequacy of the XTIRPA system for your application, please contact the PSP INNOVA INC. manufacturer. WARNING : To ensure security during the use of the fall arrest system, it is essential to make sure that there is enough clearance below the user, so as to avoid any injury.
- Page 8 IMPORTANT : If you have questions related to the use, maintenance or adequacy of the XTIRPA system for your application, please contact the PSP INNOVA INC. manufacturer. IMPORTANT : Enter the product’s ID number indicated on the ID label on the maintenance and inspection sheet contained in this Instruction and Safety manual.
- Page 9 f) The owners must also ensure that all users were trained to use the XTIRPA system before allowing them to use the XTIRPA system, as well as at least once a year thereafter. g) A person who hasn’t read the Instruction and Safety manual, who hasn’t been trained to use the XTIRPA system and who doesn’t understand all the operation and safety instructions, is not qualified to use the XTIRPA system.
- Page 10 MAINTENANCE/REPAIRS/STORAGE a) Before each use, the user must read, understand and follow the manufacturer’s Instruction and Safety manual. Ensure that markings are visible at all times. b) Before each use, inspect carefully the XTIRPA system as well as all its components and parts.
-
Page 11: Warranty
WARRANTY The XTIRPA system, offered by the PSP INNOVA INC. manufacturer, is warranted against all defects in material and labor for a (2) two-year period from the date of purchase, this warranty does not protect the XTIRPA system’s initial buyer. The manufacturer will promptly repair or... - Page 12 DESCRIPTION OF THE XTIRPA SYSTEM WARNING The XTIRPA system is part of a personal protection equipment system, a protection sys- tem against falls, a work and safety positioning system, a staff management system, an equipment management system and a safeguard system to be used in isolation. The XTIRPA system was engineered to act as a supporting or anchoring structure for these uses.
- Page 13 Illustration 1 Illustration 2 Illustration 3 Illustration 4 IN-2237 IN-2426 IN-2240 IN-2313 Illustration 5 Illustration 5 IN-2380 A2237-06 Illustration 7 IN-8015 MU8015-012ENG rev02...
- Page 14 IMPORTANT : If you have questions related to the use, maintenance or adequacy of the XTIRPA system for your application, please contact the PSP INNOVA INC. manufacturer. IMPORTANT : Enter the product’s ID number indicated on the ID label on the maintenance of the XTIRPA system and inspection sheet contained in this Instruction and Safety man- ual.
- Page 15 OPERATION, INSTALLATION AND USE OF THE XTIRPA SYSTEM SYSTEM’S OPERATION AND USE GALLOWS WITH MAST AND BARREL ADAPTOR Ensure that all components and parts are in perfect operating condition and that every- thing works properly. Remove the retention pins. Adjust both parts of the adaptor to get a distance that is barely greater than the low wall on which it is installed.
- Page 16 Lock using the pin. Install the gallows’ receptacle on the mast. Lock using the pin. Install the lifeline or winch onto the gallows’ support designed to receive this type of equipment. Use the locking pin provided along with the lifeline or winch sup- port and lock with the latter.
- Page 17 Steps 6-7-8 to install the lifeline/winch will have to be repeated. If you have questions related to the use, maintenance or adequacy of the XTIRPA system for your application, please contact the PSP INNOVA INC. manufacturer. MU8015-012ENG rev02...
- Page 18 If you have questions related to the use, maintenance or adequacy of the XTIRPA system for your application, please contact the PSP INNOVA INC. manufacturer . WARNING : Any system must immediately be removed from circulation: if the security is questioned or if it was used to stop a fall.
- Page 19 WARNING : In the case of fall arrest systems and to ensure the user’s safety, the an- choring device or anchorage point must always be placed correctly and the work must be performed in a way that reduces the risk of falls as well as the height of falls. The anchoring device or anchorage point must imperatively be placed above the user’s position.
- Page 20 THE FOLLOWING INFORMATIVE AND SAFETY LABELS MUST BE CLEAN AND READABLE AT ALL TIMES MU8015-012ENG rev02...
- Page 21 SERIAL NUMBER LABEL CE ACCREDITATION LABEL Product serial number Product number Accredited standard’s no. EN 795:2012 Type A S2337-003 revD Product standard Manufacturing date Manufacturing batch number CE ACCREDITATION LABEL CE ACCREDITATION LABEL Notified body’s no. Notified body’s no. Accredited standard’s no. Accredited standard’s no.
- Page 22 CALCULATION DIAGRAM Ground Clearance: Length of the lanyard carabiner Extended length of the absorber Distance between harness buckle and feet = 4.9’ (1.5 m) Minimum safe distance = 3.3’ (1 m) Pay attention to the distance to the ground! MU8015-012ENG rev02...
- Page 23 MU8015-012ENG rev02...
- Page 24 MU8015-012ENG rev02...
- Page 25 NOTES MU8015-012ENG rev02...
- Page 26 NOTES MU8015-012ENG rev02...
- Page 28 CONFINED SPACE SAFETY SOLUTIONS Canada Head Office Manufacturing Plant Innova Public Utility Products Inc. 1040, Boulevard Industriel Canada, Qc, Canada J2J 1A4 Phone : 450.777.1240 Toll free : 1.800.461.1937 Xtirpa is a registered trademark of Innova Public Utility Productions Inc.
