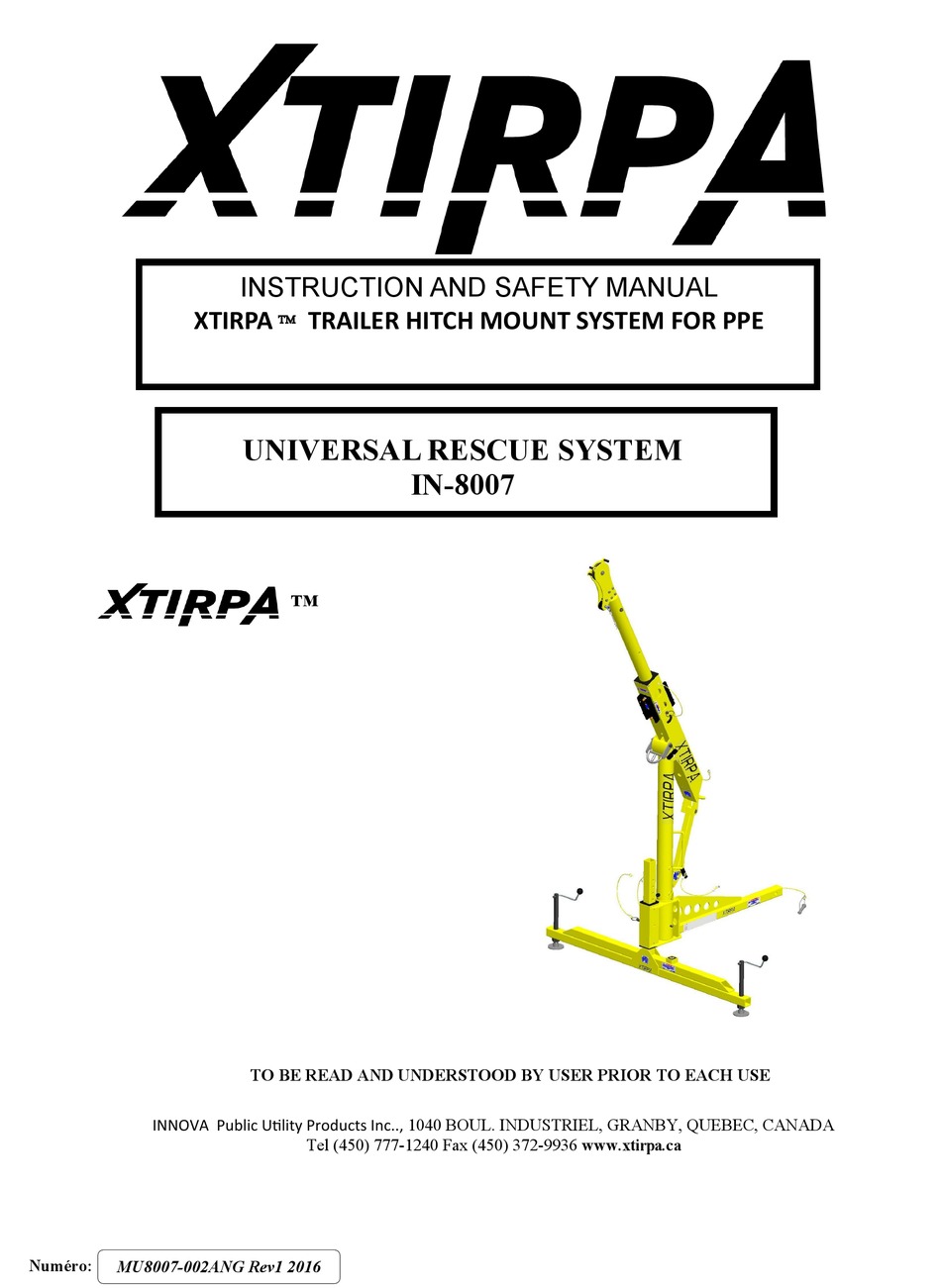

INSTRUCTION AND SAFETY MANUAL

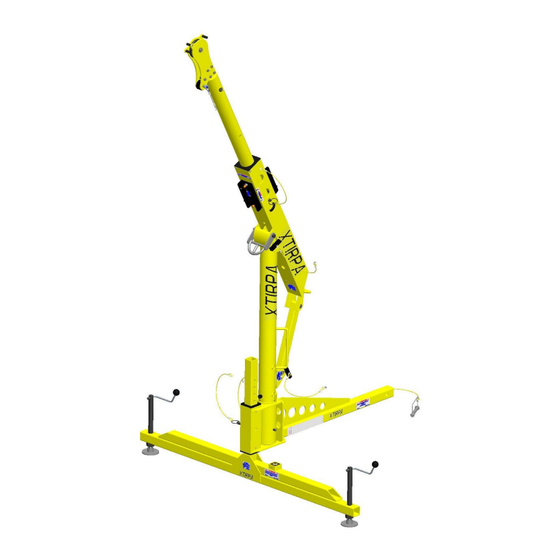

XTIRPA
TRAILER HITCH MOUNT SYSTEM FOR PPE
UNIVERSAL RESCUE SYSTEM
IN-8007
™
TO BE READ AND UNDERSTOOD BY USER PRIOR TO EACH USE
INNOVA Public Utility Products Inc.., 1040 BOUL. INDUSTRIEL, GRANBY, QUEBEC, CANADA
Tel (450) 777-1240 Fax (450) 372-9936 www.xtirpa.ca
P. 1
Numéro:
MU8007-002ANG Rev1 2016

Advertisement

loading
Need help?

Need help?

Do you have a question about the Xtirpa and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Innova Xtirpa

Summary of Contents for Innova Xtirpa

  • Page 1 UNIVERSAL RESCUE SYSTEM IN-8007 ™ TO BE READ AND UNDERSTOOD BY USER PRIOR TO EACH USE INNOVA Public Utility Products Inc.., 1040 BOUL. INDUSTRIEL, GRANBY, QUEBEC, CANADA Tel (450) 777-1240 Fax (450) 372-9936 www.xtirpa.ca P. 1 Numéro: MU8007-002ANG Rev1 2016...
  • Page 2 Altera- tions or misuse of the XTIRPA System or of any component or part thereof or failure to follow instruc- tions may result in serious injury or death, for which the manufacturer disclaims all warranties and lia- bilities whatsoever, user, owner and purchaser of the XTIRPA...
  • Page 3 The XTIRPA System is intended to act as a support structure or anchor for these uses.
  • Page 4 XTIRPA System, with appropriate specifications designed and recommended for use in specialized work conditions such as those for which the XTIRPA System is intended to be used as per this instruc- tion and safety manual. For the installation of lifeline cables and ropes on the certified 12kn anchor points of the davit arm, see section 6 paragraphs 3 through 5.
  • Page 5 WARNING: This equipment (system) is reserved for the use of one person at a time. WARNING: It is important to place the XTIRPA™ System on a hard and level surface. Do not use the XTIRPA™ System on a soft surface, including, but not limited to, sand, grass, gravel and rocks. If you have any questions about use or maintenance or whether the XTIRPA™...
  • Page 6 Make sure that the support legs can support the weight at all times. a) The XTIRPA System is intended to be used as part of a personal fall arrest, work positioning, per- sonnel riding, material handling, or rescue system for use in confined spaces and act as a support struc- ture or anchorage.
  • Page 7 Life expectancy of the XTIRPA System and its components will be determined based on the conclu- sions of periodic and monthly inspections which will determine whether or not the product may remain in service.
  • Page 8 It is recommended that the anchoring device be marked with the most recent or next inspection date. e) Remove the XTIRPA System from service if a problem or an unsafe or defective condition is found during the inspection. Return to an authorized service center or the manufacturer for service.

  • Page 9: Warranty

    God, war insurrection, acts of terrorism or other damage beyond the control of the Manufac- turer. This warranty applies only to the original purchaser and is the only one applicable to the XTIRPA  System, and is in lieu of all other warranties, expressed or implied. Without limiting the generality of...
  • Page 10 The XTIRPA System is part of a personal fall arrest, work positioning, personnel handling, material handling or rescue system for use in confined spaces. The XTIRPA System is intended to act as a sup- port structure or anchor for these uses. The user must read, understand and follow the manufacturer’s instructions for each component or part of the complete XTIRPA...
  • Page 11 Illustration 11: A2305-07 Illustration 1: IN-2126 / IN-2204 Illustration 5: A2126-07 Illustration 6: A2126-09 Illustration 2: IN-2210 Illustration 12: IN-2348 Illustration 7: A2126-10 Illustration 13: A2348-03 Illustration 8: A2126-38 Illustration 3: IN-2003 Illustration 14: A2348-05 Illustration 9: A2126-21 Illustration 15: A2348-08 Illustration 4: IN-8007 Illustration 10: A2126-14/A2126-33 Illustration 16: A2126-57...
  • Page 12 Assembly compatibility for TYPE A ↓Typical composition↓ IN-2126 ou IN-2204 IN-2003 IN-2210 Assembly with A2126-21 Assembly with IN-2348 (with or without optional accessories) Wall installation IN-2348 IN-2348 A2348-05 A2126-07 A2126-09 IN-2348 IN-2348 IN-2348 A2348-05 A2126-09 A2126-07 P. 11 MU8007-002ANG Rev1 2016...
  • Page 13 Wall installation (cont.) IN-2348 IN-2348 A2348-05 A2126-09 A2126-07 A2126-07 IN-2348 IN-2348 A2126-09 A2126-07 A2126-07 IN-2348 IN-2348 A2126-09 IN-2348 A2348-05 A2126-09 For installation on a column, use above configurations Column installation IN-2348 A2348-05 A2348-08 IN-2348 A2348-08 A2126-09 A2126-07 P. 12 MU8007-002ANG Rev1 2016...
  • Page 14 Assembly compatibility for TYPE B Assembly with A2126-14 or A2126-33 Without extension IN-2126 or IN-2204 IN-2003 IN-2210 With extension IN-2126 or IN-2204 IN-2003 IN-2210 A2126-29 A2126-07 A2126-09 A2126-09 A2126-07 A2126-10 A2126-10 A2126-07 P. 13 MU8007-002ANG Rev1 2016...
  • Page 15 Assembly on vehicle Without extension IN-2126 or IN-2204 IN-2003 IN-2210 With extension IN-2126 or IN-2204 IN-2003 IN-2210 A2126-29 A2126-07 A2126-09 A2126-09 A2126-07 A2126-10 A2126-10 A2126-07 P. 14 MU8007-002ANG Rev1 2016...
  • Page 16 Assembly compatibility with TYPE E ↓Typical composition↓ IN-2126 or IN-2204 IN-2003 IN-2210 Assembly with A2305-07 A2126-38 Assembly with A2305-65 A2126-57 P. 15 MU8007-002ANG Rev1 2016...
  • Page 17 OPERATION, ASSEMBLY AND USE XTIRPA SYSTEM Type A Type A IN-8007 with A2126-21 IN-8007 with A2126-07, A2126-09 IN-2348 and/or A2348-05 or A2348- 03 or A2348-08 Type B Type B Type B IN-8007 with vehicle IN-8007 with, A2126- A2126-10 and A2126-...
  • Page 18 XTIRPA System waiving all claims, rights and recourses against the manufacturer and derived therefrom. IMPORTANT : If you have questions on the use, car e or suitability of the XTIRPA System for your application, please contact the Manufacturer INNOVA Public Utility Products Inc.
  • Page 19 OPERATION AND INSTALLATION OF TRAILER HITCH SYSTEM WITH UNIVERSAL WALL ADAPTER IN-2348 Make sure that all components and parts are in perfect working order and that everything is functioning IN-2210 correctly. IN-2126 or IN-2204 IN-2348 IN-2003 . Insert 50.8mm x 50.8mm (2”x2”) tube or any other adapter or connector that has been certified, approved and recommended by the manufacturer into the universal wall adapter receptacle.
  • Page 20 A. Determine the placement of the truck. B. Remove the pins from the leveling supports and rotate them into a vertical position. A. Adjust the leveling suppor ts. B. Using a bubble level, ensur e that the bubble is in the center of the indicator. WARNING: During use, the counterbalanced truck must be raised so that the wheels are not in contact with the ground, only the leveling supports.
  • Page 21 A. Assemble the two parts of the tank platform. B. Attach the two parts of the platform with pin. Attach the water tank with the 4 pins situated on the edges of the platform. A. Inser t extension on the fr ont of the platform.
  • Page 22 LEVELING THE TRAILER HITCH SYSTEM Remove locking pin and adjust the height of the trailer hitch so that the mast re- ceptacle is in a horizontal position. Proceed to stabilize the system with the adjustable sup- port legs (A). Make sure that the level bubble is in the center of the indicator (B).
  • Page 23 XTIRPAsystem. WARNING: It is impor tant to place the XTIRPA™ System on a har d and level sur face. Do not use the XTIRPA™ System on a soft surface, including, but not limited to, sand, grass, gravel and rocks.
  • Page 24 XTIRPA System and may result in serious injury or death, for which the manufacturer disclaims all warranties and liabilities whatsoever, user, owner and purchaser of the XTIRPA System waiving all claims, rights and recourses against the manufacturer derived therefrom.
  • Page 25 Keep the following instructional and safety signs clean and legible at all times. SERIAL NUMBER LABEL Product serial number Product number Date of manufacture Batch number P. 24 MU8007-002ANG Rev1 2016...
  • Page 26 Keep the following instructional and safety signs clean and legible at all times. EC A CCREDITATION ABEL Accredited Standard Number Standard Product Type EC A CCREDITATION ABEL Notified body Number Accredited Standard Number Standard Product Type European comformity EC A CCREDITATION ABEL Notified body Number...
  • Page 27 Calculation diagram P. 26 MU8007-002ANG Rev1 2016...
  • Page 28 *Any failure to follow the Manufacturer's instructions contained in the Instruction and safety manual, including with regard to the inspection and maintenance of the XTIRPA TM system and of components and parts there of, will cause warranty to become null and void and may result in serious injury or death of the user, for which the Manufacturer disclaims all warranties and liabilities whatsoever, user, owner and purchaser of the XTIRPA TM system waiving all claims, rights and recourses against Manufacturer and derived there from.
  • Page 29 Manufacturer disclaims all warranties and liabilities whatsoever, user, owner and purchaser of the XTIRPA system waiving all claims, rights and recourses against Manufacturer and derived there from.
