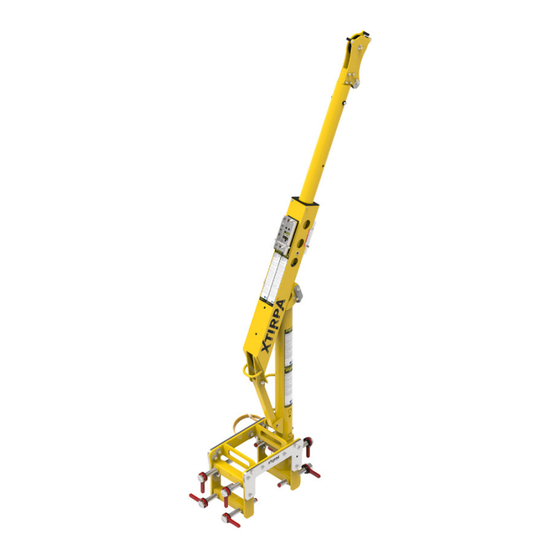

INSTRUCTION AND SAFETY MANUAL
XTIRPA DAVIT ARM, MAST AND ADJUSTABLE ADAPTOR
SYSTEM
UNIVERSAL RESCUE SYSTEM
IN-8010
TO BE READ AND UNDERSTOOD BY USER PRIOR TO EACH USE
INNOVA Public Utility Products Inc.
1040 Boulevard Industriel, Granby, Québec, Canada
Tel (450) 777-1240 Fax (450) 372-9936 www.xtirpa.com
MU8010-012ENG rev04

Advertisement

loading
Need help?

Need help?

Do you have a question about the xtirpa IN-8010 and is the answer not in the manual?

Questions and answers

Related Manuals for Innova xtirpa IN-8010

Summary of Contents for Innova xtirpa IN-8010

  • Page 1 XTIRPA DAVIT ARM, MAST AND ADJUSTABLE ADAPTOR SYSTEM UNIVERSAL RESCUE SYSTEM IN-8010 TO BE READ AND UNDERSTOOD BY USER PRIOR TO EACH USE INNOVA Public Utility Products Inc. 1040 Boulevard Industriel, Granby, Québec, Canada Tel (450) 777-1240 Fax (450) 372-9936 www.xtirpa.com MU8010-012ENG rev04...
  • Page 2 EC DECLARATION OF CONFORMITY (English) Manufacturer established in the community: Produits de Services Publics INNOVA inc., 1040, boul. Industriel, Granby, Québec, Canada J2J 1A4 Declares that the following PPE product: IN-8010 Davit arm, mast and adapter XTIRPA system for PPE.
  • Page 3 INTRODUCTION WARNING The XTIRPA system is part of a personal protection equipment system for fall protection, work positioning, or rescue, for use in confined spaces. The user must read, understand and follow the manufacturer’s instructions for each com- ponent or part of the complete XTIRPA system. These instructions must be provided to the user of the XTIRPA system.
  • Page 4 APAVE SUDEUROPE SAS (Headquarters: 8 rue Jean-Jacques Vernazza—Z.A.C. Sau- maty-Séon - CS 60193 - 13322 MARSEILLE CEDEX 16) is the notified body involved in the initial production and certification control phase. DESCRIPTION & INTERPRETATION OF MARKING SYMBOLS This symbol is used to alert the user to a potential hazard. The safety of the worker is in jeopardy.
  • Page 5 RESTRICTIONS a) CAPACITY: The maximum working load (CMT) of this product is 360lbs (164kg). According to CE (EN 795: 2012 and TS16415: 2013), use an EN-360 and / or EN-363 fall protection system or EN-1496 recovery system. b) The manufacturer attests that anchoring devices have been tested accordingly to the current European standard (EN 795:2012 Type B and et TS16415 : 2013) and, except otherwise stipulated, they are to be used by a single person, by anchor point, using a shock absorber in accordance with regulation EN 355.
  • Page 6 h) Use only a certified full body harness and lifeline cables and ropes for any user of the XTIR- PA system, with appropriate specifications designed and recommended for use in special- ized work conditions such as those for which the XTIRPA system is intended to be used as per this instruction and safety manual.
  • Page 7 If you have any questions about use or maintenance or whether the XTIRPA system is appropriate for your job, please contact the Manufacturer PSP INNOVA INC. WARNING: For safety reasons, make sure when using the anti-drop system that you have enough space under the user, so as to avoid injury.
  • Page 8 IMPORTANT: If you have questions on the use, care or suitability of the XTIRPA system for your application, please contact the manufacturer INNOVA Public Utility Products Inc. IMPORTANT: Record the product identification information from the ID label in the main- tenance and inspection log of this instruction and safety manual.
  • Page 9 possible serious injury or death, for which the Manufacturer disclaims all warranties and liabilities whatsoever, user, owner and purchaser of the XTIRPA system waiving all claims, rights and recourses against the Manufacturer derived therefrom. h) Refer to and follow all EN standards or other local standards and regulations. Comply with all requirements of your local regulations for your applications.
  • Page 10 MAINTENANCE, SERVICING, STORAGE a) Before each use, the user must read and understand the manufacturer’s Instruction and safety manual. Ensure that the markings are visible at all times. b) Before each use, carefully inspect the XTIRPA system and all components and parts there- of.

  • Page 11: Warranty

    WARRANTY The XTIRPA system offered by the Manufacturer, INNOVA Public Utility Products Inc., is war- ranted against manufacturing defects in workmanship and materials for a period of two (2) years from the date of shipment of the product, which warranty only covers the original purchaser of the XTIRPA system.
  • Page 12 XTIRPA SYSTEM DESCRIPTION WARNING The XTIRPA system is part of a personal fall arrest, work positioning, personnel handling, material handling or rescue system for use in confined spaces. The XTIRPA system is intended to act as a support structure or anchor for these uses. The user must read, understand and follow the manufacturer’s instructions for each component or part of the complete XTIRPA system.
  • Page 13 Illustration 1: MANHOLE COLLAR (MULTIPLE OP- TIONS) (IN-2287) (IN-2180) Illustration 2: ANGULAR MANHOLE COLLAR (MULTI- PLE OPTIONS) (IN-2437) (IN-2440) MU8010-012ENG rev04...
  • Page 14 Illustration 6: IN- Illustration 3: ADJUSTABLE WALL ADAPTER (MULTIPLE OPTIONS) 2003 IN-2008 ; IN-2075 ; IN-2125 ; IN-2168 ; IN-2251 Illustration 4: Illustration 7 - IN- Illustration 5: IN-2210 NON-ADJUSTABLE WALL 2482 ADAPTER (MULTIPLE OP- TIONS): IN-2021 ; IN-2129 ; IN-2315 Illustration 8: IN-8010 MU8010-012ENG rev04...
  • Page 15 IMPORTANT: If you have questions on the use, care or suitability of the XTIRPA system for your application, please contact the Manufacturer INNOVA Public Utility Products Inc. IMPORTANT: Record the product identification information from the ID label in the main- tenance and inspection log of this instruction and safety manual.
  • Page 16 Insert the collar into the manhole, making sure that it is ledged firmly around the manhole’s circumference. If possible, tighten the holding clamps to prevent the collar from toppling backwards. #1: Pull the handle for a quick adjustment, then #2 tighten the bolt for optimum fit. Insert the mast into the designed spot.
  • Page 17 XTIRPA system on a soft surface, including, but not limited to, sand, grass, gravel and rocks. If you have any questions about the use or maintenance or whether the XTIRPA system is appropriate for your job, please contact the manufacturer PSP INNOVA INC. OPERATION AND INSTALLATION OF THE ADJUSTABLE WALL ADAPTER SYSTEM Make sure that all components and parts are in perfect working order and that every- thing functions correctly.
  • Page 18 Adjust the removable part so that there is the smallest possible gap (less than 50 mm) for the bolts and lock with the pin. With the torque wrench, apply specific torque to each of the eight bolts. Insert the mast into the provided wing. Lock the mast with the locking pin.
  • Page 19 XTIRPA system on a soft surface, including, but not limited to, sand, grass, gravel and rocks. If you have any questions about the use or maintenance or whether the XTIRPA system is appropriate for your job, please contact the manufacturer PSP INNOVA INC. MU8010-012ENG rev04...
  • Page 20 XTIRPA system on soft ground, such as, but not limited to, sand, lawn, gravel and rocks. If you have any questions regarding the use, maintenance or suitability of the XTIRPA system for your application, please contact the Manufacturer PSP INNOVA INC. OPERATION AND INSTALLATION OF THE WINCH ON BASE OF DAVIT ARM...
  • Page 21 Install the winch on the base of the davit arm. Use a locking pin which was provided with the winch adaptor and lock it. A second lifeline can be installed on the gray “D” anchor point. Install the lifeline cable or rope or winch on mounting bracket made to accept the hoisting device.
  • Page 22 Remove locking pin located in the mid section of the davit arm. Extend the inner mast to full extension. Replace locking pin to secure the davit arm. IMPORTANT: Make sure that the lifeline cable or rope is directly positioned above the working area.
  • Page 23 WARNING: For the fall arrest systems, it is essential for safety that the anchoring device or the anchor point is always correctly positioned and that effort is made so as to reduce the risk of falls and the height of fall. It is essential that the device or the anchor point is placed above the position of the user.
  • Page 24 KEEP THE FOLLOWING INSTRUCTIONAL AND SAFETY SIGNS CLEAN AND LE- GIBLE AT ALL TIMES SERIAL NUMBER LABEL Product serial number Product number Manufacturing date Manufacturing batch number CE ACCREDITATION LABEL Accredited standard’s no. EN 795:2012 Type A S2337-003 revD Product standard CE ACCREDITATION LABEL Notified body’s no.
  • Page 25 MU8010-012ENG rev04...
  • Page 26 CALCULATION DIAGRAM Ground Clearance: Length of the lanyard carabiner Extended length of the absorber Distance between harness buckle and feet = 4.9’ (1.5 m) Minimum safe distance = 3.3’ (1 m) Pay attention to the distance to the ground! MU8010-012ENG rev04...
  • Page 27 MU8010-012ENG rev04...
  • Page 28 MU8010-012ENG rev04...
  • Page 29 NOTES MU8010-012ENG rev04...
  • Page 30 NOTES MU8010-012ENG rev04...
  • Page 32 Head Office and Manufacturing Plant Innova Public Utility Productions Inc. 1040, Boulevard Industriel Canada, Qc, Canada J2J 1A4 Phone: 450.777.1240 Toll free: 1.800.461.1937 Xtirpa is a registered trademark of Innova Public Utility Productions Inc. used under www.xtirpa.com license in Canada MU8010-012ENG rev04...
