Innova XTIRPA IN-8002 Instruction And Safety Manual

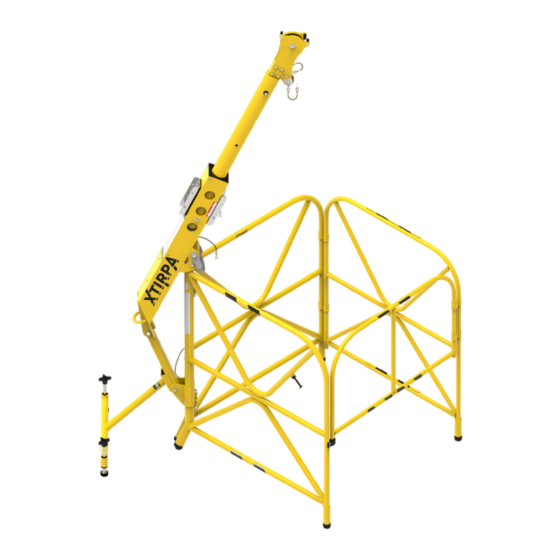

1067mm (42») portable manhole guard system for ppe. universal rescue system
Hide thumbs Also See for XTIRPA IN-8002:

Advertisement

Quick Links

Download this manual
INSTRUCTION AND SAFETY MANUAL XTIRPA™
1067mm (42») PORTABLE MANHOLE GUARD
SYSTEM FOR PPE
UNIVERSAL RESCUE SYSTEM
IN-8002
TO BE READ AND UNDERSTOOD BY USER PRIOR TO EACH USE
INNOVA Public Utility Products Inc.
1040 Boulevard Industriel, Granby, Québec, Canada
Tel (450) 777-1240 Fax (450) 372-9936 www.xtirpa.com
MU8002-012ENEU rev03

Advertisement

loading
Need help?

Need help?

Do you have a question about the XTIRPA IN-8002 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Innova XTIRPA IN-8002

Summary of Contents for Innova XTIRPA IN-8002

  • Page 1 1067mm (42») PORTABLE MANHOLE GUARD SYSTEM FOR PPE UNIVERSAL RESCUE SYSTEM IN-8002 TO BE READ AND UNDERSTOOD BY USER PRIOR TO EACH USE INNOVA Public Utility Products Inc. 1040 Boulevard Industriel, Granby, Québec, Canada Tel (450) 777-1240 Fax (450) 372-9936 www.xtirpa.com MU8002-012ENEU rev03...
  • Page 2 EC DECLARATION OF CONFORMITY (English) Manufacturer established in the community: Produits de Services Publics INNOVA inc., 1040, boul. Industriel, Granby, Québec, Canada J2J 1A4 Declares that the following PPE product: IN-8002 Système Garde-corps portatif 42po (1,07m) XTIRPA pour EPI. is in conformity with the provisions of the regulation (EU) 2016/425 and complies to the standard:...
  • Page 3 INTRODUCTION WARNING The XTIRPA system is part of a personal protection equipment system for fall protection, work positioning, or rescue, for use in confined spaces. The user must read, understand and follow the manufacturer’s instructions for each com- ponent or part of the complete XTIRPA system. These instructions must be provided to the user of the XTIRPA system.
  • Page 4 012ENEU rev03. APAVE SUDEUROPE SAS (Headquarters: 8 rue Jean-Jacques Vernazza—Z.A.C. Sau- maty-Séon - CS 60193 - 13322 MARSEILLE CEDEX 16) is the notified body involved in the initial production and certification control phase. DESCRIPTION & INTERPRETATION OF MARKING SYMBOLS This symbol is used to alert the user to a potential hazard. The safety of the worker is in jeopardy.
  • Page 5 APPLICATION The XTIRPA system, and its many components and parts (including davit arm and manhole guard), are intended to be used as part of a personal protection equipment system for fall pro- tection, work positioning, personnel handling, materials handling, or rescue, for use in confined spaces.
  • Page 6 (the user attached to the lifeline cable or rope) and the other (attendant) pays out the line and reels it in, keeps contact with the person inside and remains available in case of any emer- gency. The attendant makes sure, at all times, that the user who is tying his lifeline cable or rope to his EN 361-compliant harness is in the right position.
  • Page 7 If you have any questions about the use or maintenance or whether the XTIRPA system is appropriate for your job, please contact the Manufacturer PSP INNOVA INC. WARNING: For safety reasons, make sure when using the anti-drop system that you have enough space under the user, so as to avoid injury.
  • Page 8 IMPORTANT: If you have questions about the use, care or suitability of the XTIRPA sys- tem for your application, please contact the Manufacturer INNOVA Public Utility Products Inc. IMPORTANT: Record the product identification information from the ID label in the main- tenance and inspection log of this Instruction and safety manual.
  • Page 9 e) When attaching the EN 361-compliant safety harness with the lifeline cable or rope, it is imperative, in order to avoid the manhole guard toppling over, that the user tie himself to the front of the XTIRPA system. f) Always open the manhole guard to its full capacity before installing davit arm. g) Make sure the lifeline cable or rope is positioned directly over the work area.
  • Page 10 m) It is imperative to supply all information in sufficient quantity to assure that different equip- ment articles are compatible when assembled as system. n) Life expectancy of the XTIRPA system and its components will be determined based on the conclusions of periodic and monthly inspections which will determine whether or not the product may remain in service.
  • Page 11 MAINTENANCE, SERVICING, STORAGE a) Before each use, the user must read and understand the Manufacturer’s Instruction and safety manual. Ensure that the markings are visible at all times. b) Before each use, carefully inspect the XTIRPA system and all components and parts there- of.

  • Page 12: Warranty

    WARRANTY The XTIRPA system offered by the Manufacturer, INNOVA Public Utility Products Inc., is war- ranted against manufacturing defects in workmanship and materials for a period of two (2) years from the date of shipment of the product, which warranty only covers the original purchaser of the XTIRPA system.
  • Page 13 XTIRPA SYSTEM DESCRIPTION WARNING The XTIRPA system is part of a personal fall arrest, work positioning, personnel handling, material handling or rescue system for use in confined spaces. The XTIRPA system is intended to act as a support structure or anchor for these uses. The user must read, understand and follow the manufacturer’s instructions for each component or part of the complete XTIRPA system.
  • Page 14 IMPORTANT: If you have questions on the use, care or suitability of the XTIRPA system for your application, please contact the Manufacturer INNOVA Public Utility Products Inc. IMPORTANT: Record the product identification information from the ID label of the XTIRPA system in the maintenance and inspection log of this Instruction and safety manual.
  • Page 15 IMPORTANT: Always open the manhole guard to its full capacity before installing davit arm. A) Remove both handle pins from their locations. B) Install the receptacle of the davit arm on the integrated mast of the manhole guard. A) Lock all with the first handle pin. B) Install the inferior leg of the davit arm between the eyelets of the manhole guard and lock with the second handle pin.
  • Page 16 A) If a material positioning winch is required, use the bottom mounting bracket located un- der the davit arm. Install winch to mounting bracket and lock with pin attached to winch. B) Remove the small pulley locking pin. Po- sition cable over pulley and re-install pulley using locking pin.
  • Page 17 WARNING: The integrated mast on the manhole guard must be positioned at the highest point of the area to be barricaded. IMPORTANT: When attaching the EN 361-compliant safety harness with the lifeline cable or rope, it is imperative, in order to avoid the manhole guard toppling over, that the user tie himself at the front of the XTIRPA system, where the door opens.

  • Page 18: Serial Number Label

    2 MAX result in serious injury or death, for which Products manufactured by: the Manufacturer disclaims all warranties Innova Public Utility Products inc. 1040 boul. Industriel and liabilities whatsoever. The user, owner Granby, QC, Canada J2J 1A4 and purchaser of the XTIRPA system waive www.xtirpa.com...
  • Page 19 CALCULATION DIAGRAM Ground Clearance: Length of the lanyard carabiner Extended length of the absorber Distance between harness buckle and feet = 1.5 m Minimum safe distance = 1 m Pay attention to the distance to the ground! MU8002-012ENEU rev03...
  • Page 20 MU8002-012ENEU rev03...
  • Page 21 MU8002-012ENEU rev03...
  • Page 22 NOTES MU8002-012ENEU rev03...
  • Page 23 NOTES MU8002-012ENEU rev03...
  • Page 24 Head Office and Manufacturing Plant Innova Public Utility Productions Inc. 1040, Boulevard Industriel Canada, Qc, Canada J2J 1A4 Phone: 450.777.1240 Toll free: 1.800.461.1937 Xtirpa is a registered trademark of Innova Public Utility Productions Inc. used under www.xtirpa.com license in Canada MU8002-012ENEU rev03...
