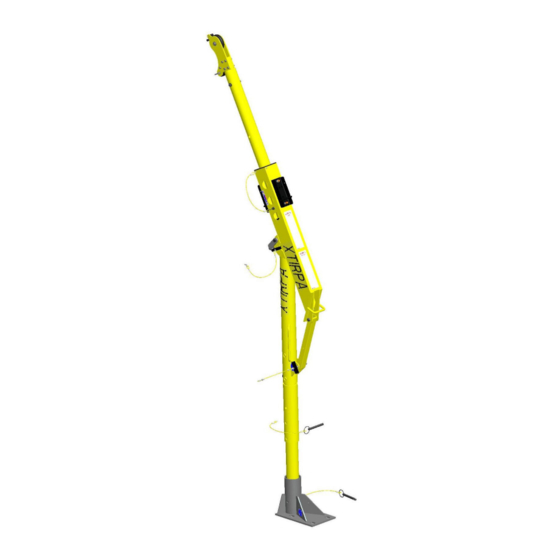

Innova XTIRPA IN-8003 Instruction And Safety Manual

Davit arm and mast system for ppe universal rescue system
Hide thumbs

Advertisement

Quick Links

Download this manual
INSTRUCTION AND SAFETY MANUAL
XTIRPA DAVIT ARM AND MAST SYSTEM FOR PPE
UNIVERSAL RESCUE SYSTEM
IN-8003
TO BE READ AND UNDERSTOOD BY USER PRIOR TO EACH USE
INNOVA Public Utility Products Inc.
1040 Boulevard Industriel, Granby, Québec, Canada
Tel (450) 777-1240 Fax (450) 372-9936 www.xtirpa.com
MU8003-012ENG rev03

Advertisement

loading
Need help?

Need help?

Do you have a question about the XTIRPA IN-8003 and is the answer not in the manual?

Questions and answers

Related Manuals for Innova XTIRPA IN-8003

Summary of Contents for Innova XTIRPA IN-8003

  • Page 1 XTIRPA DAVIT ARM AND MAST SYSTEM FOR PPE UNIVERSAL RESCUE SYSTEM IN-8003 TO BE READ AND UNDERSTOOD BY USER PRIOR TO EACH USE INNOVA Public Utility Products Inc. 1040 Boulevard Industriel, Granby, Québec, Canada Tel (450) 777-1240 Fax (450) 372-9936 www.xtirpa.com MU8003-012ENG rev03...
  • Page 3 INTRODUCTION WARNING The XTIRPA system is part of a personal protection equipment system for fall protection, work positioning, or rescue, for use in confined spaces. The user must read, understand and follow the manufacturer’s instructions for each com- ponent or part of the complete XTIRPA system. These instructions must be provided to the user of the XTIRPA system.
  • Page 4 DESCRIPTION & INTERPRETATION OF MARKING SYMBOLS This symbol is used to alert the user to a potential hazard. The safety of the worker is in jeopardy. It is imperative to follow the manufacturer’s recommendations. This symbol asks the user to read and understand the manual for this product before use.
  • Page 5 APPLICATION The XTIRPA system, and its many components and parts (including davit arm, manhole guard, movable adapter, permanent adapter, integrated mast and side entry cart), are intended to be used as part of a personal protection equipment system for fall protection, work positioning, per- sonnel handling, materials handling, or rescue, for use in confined spaces.
  • Page 6 safety manual before using the XTIRPA system. One person works in the confined space (the user attached to the lifeline cable or rope) and the other (attendant) pays out the line and reels it in, keeps in contact with the person inside and remains available in case of any emer- gency.
  • Page 7 If you have any questions about use or maintenance or whether the XTIRPA system is appropriate for your job, please contact the manufacturer PSP INNOVA INC. WARNING: For safety reasons, make sure when using the anti-drop system that you have enough space under the user, so as to avoid injury.
  • Page 8 IMPORTANT: If you have questions on the use, care or suitability of the XTIRPA system for your application, please contact the manufacturer INNOVA Public Utility Products Inc. IMPORTANT: Record the product identification information from the ID label in the main- tenance and inspection log of this Instruction and safety manual.
  • Page 9 h) Refer to and follow all EN standards or other local standards and regulations. Observe all the requirements of your local regulations for your applications. See other important operation instruction and safety information contained hereafter in this instruction and safety manual. It is imperative to supply all information in sufficient quantity to assure that different equip- ment articles are compatible when assembled as a system.
  • Page 10 MAINTENANCE, SERVICING, STORAGE a) Before each use, the user must read and understand the manufacturer’s Instruction and safety manual. Ensure that the markings are visible at all times. b) Before each use, carefully inspect the XTIRPA system and all components and parts there- of.

  • Page 11: Warranty

    WARRANTY The XTIRPA system offered by the manufacturer, INNOVA Public Utility Products Inc., is war- ranted against manufacturing defects in workmanship and materials for a period of two (2) years from the date of shipment of the product, which warranty only covers the original purchaser of the XTIRPA system.
  • Page 12 XTIRPA SYSTEM DESCRIPTION WARNING The XTIRPA system is part of a personal fall arrest, work positioning, personnel handling, material handling or rescue system for use in confined spaces. The XTIRPA system is intended to act as a support structure or anchor for these uses. The user must read, understand and follow the manufacturer’s instructions for each component or part of the complete XTIRPA system.
  • Page 13 Illustration 1: IN- Illustration 5: IN- Illustration 9: 2210 2044 IN-2106 Illustration 2: IN- Illustration 6: IN- Illustration 10: 2003 2045 IN-2107 Illustration 3: IN- Illustration 7: IN- 2005 2067 Illustration 4: Illustration 8: IN-2013 IN-2105 MU8003-012ENG rev03...
  • Page 14 Illustration 11: Illustration 15: Illustration 19: IN-2109 IN-2133 IN-2329 Illustration 20: Illustration 12: Illustration 16: IN-8003 IN-2117 IN-2137 Illustration 13: Illustration 17: IN-2124 IN-2311 Illustration 14: Illustration 18: IN-2131 IN-2327 MU8003-012ENG rev03...
  • Page 15 IMPORTANT: If you have questions on the use, care or suitability of the XTIRPA system for your application, please contact the manufacturer INNOVA Public Utility Products Inc. IMPORTANT: Record the product identification information from the ID label in the main- tenance and inspection log of this instruction and safety manual.
  • Page 16 Install davit arm receptacle on the mast. Lock everything with the first pin. Install the lower leg of the davit arm using the holes in the mast and lock with the second pin. Install the lifeline or winch on the davit arm bracket designed to be used with this type of equipment.
  • Page 17 Remove the pin from the small pulley, pass the winch cable through the opening and reposition the pulley under the cable and lock with pin. WARNING: It is strictly forbidden to use a winch or lifeline for fall protection when posi- tioned above the davit arm.
  • Page 18 WARNING: If necessary, use a manhole guard to secure your working area and to prevent falls. IMPORTANT: Make sure the lifeline cable or rope is positioned directly over the work area. Use only certified lifeline cable or rope, in perfect working condition, with appropri- ate specifications, including maximum leverage capabilities, for the intended use of the XTIRPA system.

  • Page 19: Serial Number Label

    CA 2.479.513 2 MAX EP 03 744 296.9 2 MAX Products manufactured by: Product manufactured by: Innova Public Utility Products inc. 2 MAX Innova Public Utility Products, Inc. 1040 boul. Industriel 1040 boul. Industriel Granby, QC, Canada J2J 1A4 Granby, QC, Canada J2J 1A4 www.xtirpa.com...
  • Page 20 CE ACCREDITATION LABEL Notified body’s no. Accredited standard’s no. 0082 EN 795:2012 Type E S2305-007 revC Product standard Compliance with regulation 2016/425 MU8003-012ENG rev03...
  • Page 21 CALCULATION DIAGRAM Ground Clearance: Length of the lanyard carabiner Extended length of the absorber Distance between harness buckle and feet = 4.9’ (1.5 m) Minimum safe distance = 3.3’ (1 m) Pay attention to the distance to the ground! MU8003-012ENG rev03...
  • Page 22 MU8003-012ENG rev03...
  • Page 23 MU8003-012ENG rev03...
  • Page 24 NOTES MU8003-012ENG rev03...
  • Page 25 NOTES MU8003-012ENG rev03...
  • Page 26 NOTES MU8003-012ENG rev03...
  • Page 28 Head Office and Manufacturing Plant Innova Public Utility Productions Inc. 1040, Boulevard Industriel Canada, Qc, Canada J2J 1A4 Phone: 450.777.1240 Toll free: 1.800.461.1937 Xtirpa is a registered trademark of Innova Public Utility Productions Inc. used under www.xtirpa.com license in Canada MU8003-012ENG rev03...
