  • Page 1 1067mm (42») LARGE PORTABLE MANHOLE GUARD SYSTEM FOR PPE UNIVERSAL RESCUE SYSTEM IN-8011 TO BE READ AND UNDERSTOOD BY USER PRIOR TO EACH USE INNOVA Public Utility Products Inc. 1040 Boulevard Industriel, Granby, Québec, Canada Tel (450) 777-1240 Fax (450) 372-9936 www.xtirpa.com MU8011-012ENEU rev03...
  • Page 2 EC DECLARATION OF CONFORMITY (English) Manufacturer established in the community: Produits de Services Publics INNOVA inc., 1040, boul. Industriel, Granby, Québec, Canada J2J 1A4 Declares that the following PPE product: IN-8011 Large manhole guard with integrated mast 1067mm (42") XTIRPA...
  • Page 3 INTRODUCTION WARNING The XTIRPA system is part of a personal protection equipment system for fall protection, work positioning, or rescue, for use in confined spaces. The user must read, understand and follow the manufacturer’s instructions for each com- ponent or part of the complete XTIRPA system. These instructions must be provided to the user of the XTIRPA system.
  • Page 4 Large Portable Manhole Guard and IN-2210, Davit Arm for Fall Protection and Retrieval, con- forms to document number MU8011-012ENEU rev03. APAVE SUDEUROPE SAS (Headquarters: 8 rue Jean-Jacques Vernazza—Z.A.C. Sau- maty-Séon - CS 60193 - 13322 MARSEILLE CEDEX 16) is the notified body involved in the initial production and certification control phase.
  • Page 5 APPLICATION The XTIRPA system, and its many components and parts (including davit arm and manhole guard), are intended to be used as part of a personal protection equipment system for fall pro- tection, work positioning, personnel handling, materials handling, or rescue, for use in confined spaces.
  • Page 6 (the user attached to the lifeline cable or rope) and the other (attendant) performs the oper- ation of out the line and reels it in, keeps contact with the person inside and remains avail- able in case of any emergency. The attendant makes sure, at all times, that the user who is tying his lifeline cable or rope to his EN 361-compliant harness is in the right position.
  • Page 7 If you have any questions about the use or maintenance or whether the XTIRPA system is appropriate for your job, please contact the Manufacturer PSP INNOVA INC. WARNING: For safety, make sure when using the anti-drop system that you have enough space under the user, so as to avoid injury.
  • Page 8 XTIRPA SYSTEM REQUIREMENTS IMPORTANT: If you have questions about the use, care or suitability of the XTIRPA sys- tem for your application, please contact the Manufacturer INNOVA Public Utility Products Inc. IMPORTANT: Record the product identification information from the ID label in the main- tenance and inspection log of this Instruction and safety manual.
  • Page 9 g) Make sure the lifeline cable or rope is positioned directly over the work area. Use only cer- tified lifeline cable or rope, in perfect working condition, with appropriate specifications, in- cluding maximum leverage capabilities, for the intended use of the XTIRPA system. h) Owners must make sure that, before each use, all users of the XTIRPA system have read, understood and follow the Manufacturer’s Instructions and safety manual.
  • Page 10 MAINTENANCE, SERVICING, STORAGE a) Before each use, the user must read and understand the Manufacturer’s Instruction and safety manual. Ensure that the inscriptions are visible at all times. b) Before each use, carefully inspect the XTIRPA system and all components and parts there- of.

  • Page 11: Warranty

    WARRANTY The XTIRPA system offered by the Manufacturer, INNOVA Public Utility Products Inc., is war- ranted against manufacturing defects in workmanship and materials for a period of two (2) years from the date of shipment of the product, which warranty only covers the original purchaser of the XTIRPA system.

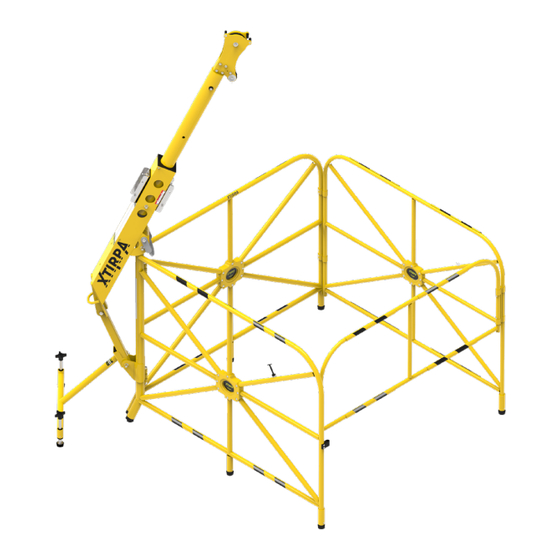

  • Page 12 XTIRPA SYSTEM DESCRIPTION WARNING The XTIRPA system is part of a personal fall arrest, work positioning, personnel handling, material handling or rescue system for use in confined spaces. The XTIRPA system is intended to act as a support structure or anchor for these uses. The user must read, understand and follow the manufacturer’s instructions for each component or part of the complete XTIRPA system.
  • Page 13 IMPORTANT: If you have questions on the use, care or suitability of the XTIRPA system for your application, please contact the Manufacturer INNOVA Public Utility Products Inc. IMPORTANT: Record the product identification information from the ID label of the XTIRPA system in the maintenance and inspection log of this Instruction and safety manual.
  • Page 14 Undo the rubber draw latch (A) and open the manhole guard to its maximum capacity. If necessary, adjust the legs to level the system (B). Close and lock the door using locking mechanism (C). IMPORTANT: Always open the manhole guard to its full capacity before installing davit arm.
  • Page 15 Pass the lifeline cable or rope into the pulley located at the top end of the davit arm. Make sure that the lifeline cable or rope is well in place. If a material positioning winch is required, use the bottom mounting bracket locat- ed under the davit arm.
  • Page 16 If you have questions on the use, care or suitability of the XTIRPA system for your application, please contact the manufacturer PSP INNOVA INC. WARNING: The integrated mast on the manhole guard must be positioned at the highest point of the area to be barricaded.
  • Page 17 WARNING: The XTIRPA system must be used only with adapters, anchors, connectors (EN 362), pulleys and other components, parts or subsystems that have been certified, ap- proved and recommended by the Manufacturer. Substitutions or replacements made with other adapters, anchors, connectors (EN 362), other components, parts or subsystems may be incompatible, may jeopardize the safety and reliability of the complete XTIRPA system and may result in serious injury or death, for which the Manufacturer disclaims all warranties and liabilities whatsoever, user, owner and purchaser of the XTIRPA system...
  • Page 18 The user, owner and purchaser of the XTIRPA system waive all claims, rights and recourses against the manu- facturer and distributor arising therefrom. 2 MAX Products manufactured by: Innova Public Utility Products inc. 1040 boul. Industriel Granby, QC, Canada J2J 1A4 www.xtirpa.com S2324-102 revF...

  • Page 19: Ground Clearance

    Calculation diagram Ground Clearance: Length of the lanyard carabiner Extended length of the absorber Distance between harness buckle and feet = 1.5 m Minimum safe distance = 1 m Pay attention to the distance to the ground! MU8011-012ENEU rev03...
  • Page 20 MU8011-012ENEU rev03...
  • Page 21 MU8011-012ENEU rev03...
  • Page 22 NOTES MU8011-012ENEU rev03...
  • Page 23 NOTES MU8011-012ENEU rev03...
  • Page 24 Head Office and Manufacturing Plant Innova Public Utility Productions Inc. 1040, Boulevard Industriel Canada, Qc, Canada J2J 1A4 Phone: 450.777.1240 Toll free: 1.800.461.1937 Xtirpa is a registered trademark of Innova Public Utility Productions Inc. used under www.xtirpa.com license in Canada MU8011-012ENEU rev03...
