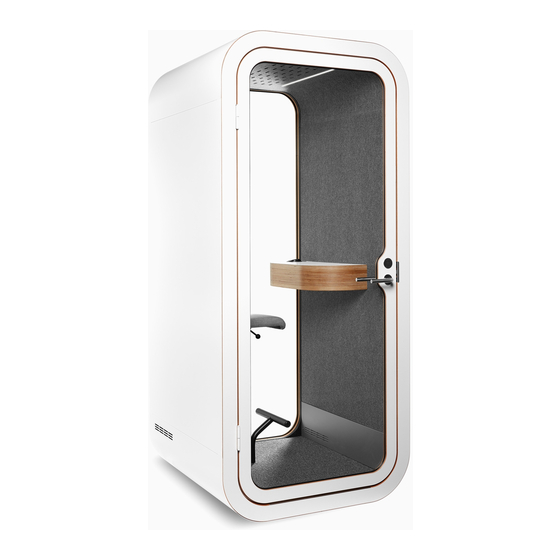

Framery O
English
Fire safety
Version 1.0

Advertisement

loading
Need help?

Need help?

Do you have a question about the Framery O and is the answer not in the manual?

Questions and answers

Related Manuals for Framery Framery O

Summary of Contents for Framery Framery O

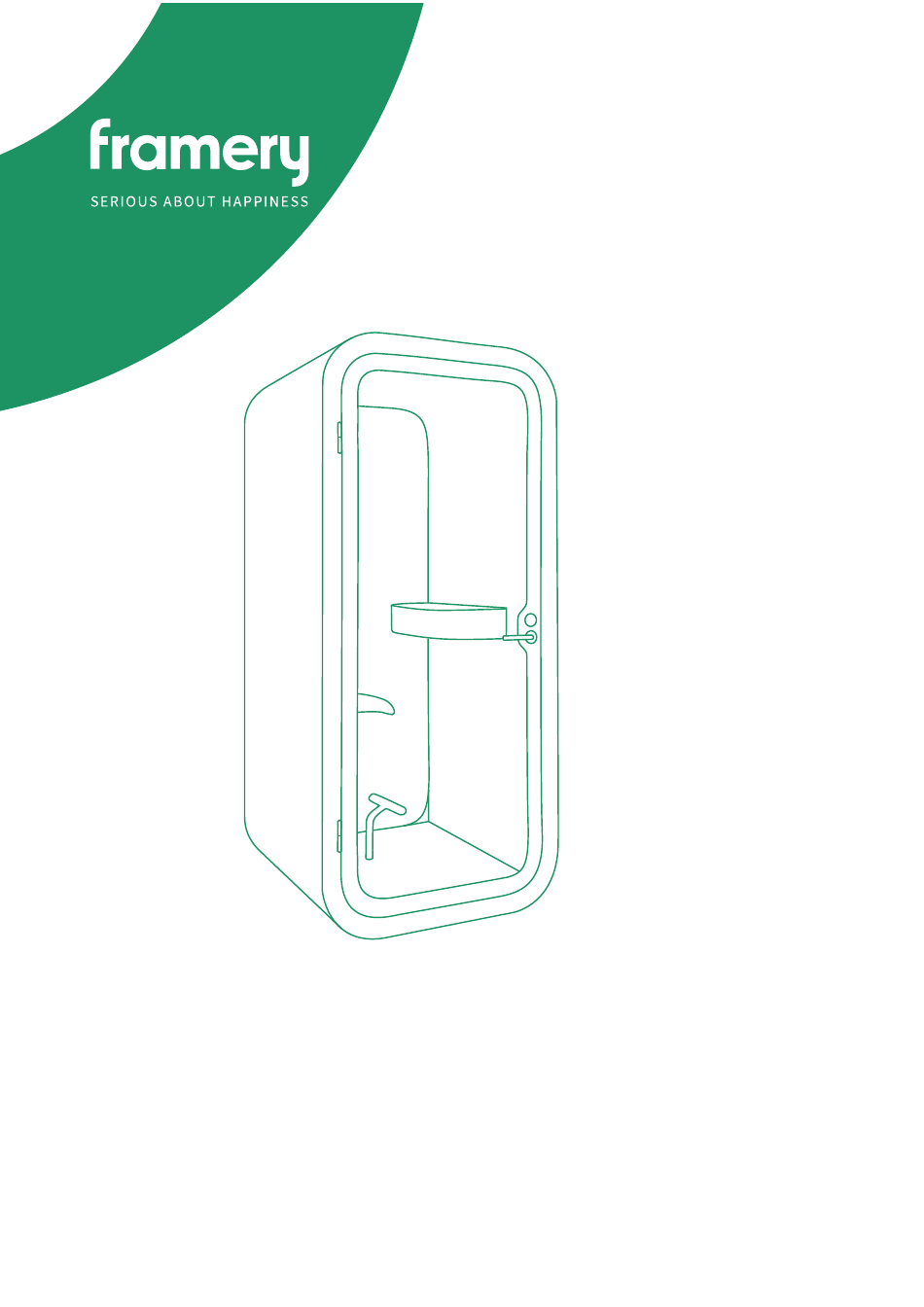

  • Page 1 Framery O English Fire safety Version 1.0...
  • Page 3 Contents 1 Install the fire alarm..................5 2 Install the customer supplied sprinkler..........10 2.1 Prepare the installation..................10...
  • Page 5 Note: The maximum recommended screw size is 5x25 mm. If you intend to install a wired alarm, follow these instructions. Remove the roof body cover. Framery O Fire safety info@frameryacoustics.com...
  • Page 6 Remove the light. Cut a notch in the ceiling felt. Use a utility knife. Framery O Fire safety info@frameryacoustics.com...
  • Page 7 Guide the electrical wiring for the fire alarm under the light and through the notch in the roof. Note: Make sure that the wiring can move freely and that it is not stuck between the edge of the light and the ceiling felt. Framery O Fire safety info@frameryacoustics.com...
  • Page 8 Guide the electrical wiring out of the notch in the roof. Reinstall the light. Framery O Fire safety info@frameryacoustics.com...
  • Page 9 Cut a notch in the roof cover panel for the electrical wiring. Reinstall the roof body covers. Framery O Fire safety info@frameryacoustics.com...

  • Page 10: Prepare The Installation

    Install the sprinkler at the back of the pod. Note: Use the hole at the back of the pod for the sprinkler head. Cut away the flap on the roof body cover. Use side cutters. Framery O Fire safety info@frameryacoustics.com...
  • Page 11 Cut the three layers of acoustic material for leading a pipe through them. Use a utility knife or a 70-80 mm (3 1/3 in) hole saw. Note: Leave the ceiling felt intact. Note: Use snippers to remove the inner sheet metal from between the acoustic panels. Framery O Fire safety info@frameryacoustics.com...
  • Page 12 Cut out a hole in the ceiling felt for the sprinkler head from the inside of the pod. You can use a hole saw or utility knife. If you use a hole saw, chose the size according to the size of the sprinkler head. Framery O Fire safety info@frameryacoustics.com...
  • Page 14 Framery O Fire safety Patamäenkatu 7 33900 Tampere FINLAND VAT: FI 23527139...
