Framery O VCR
English
Troubleshooting instructions
Version 2.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the O and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Framery O

Summary of Contents for Framery O

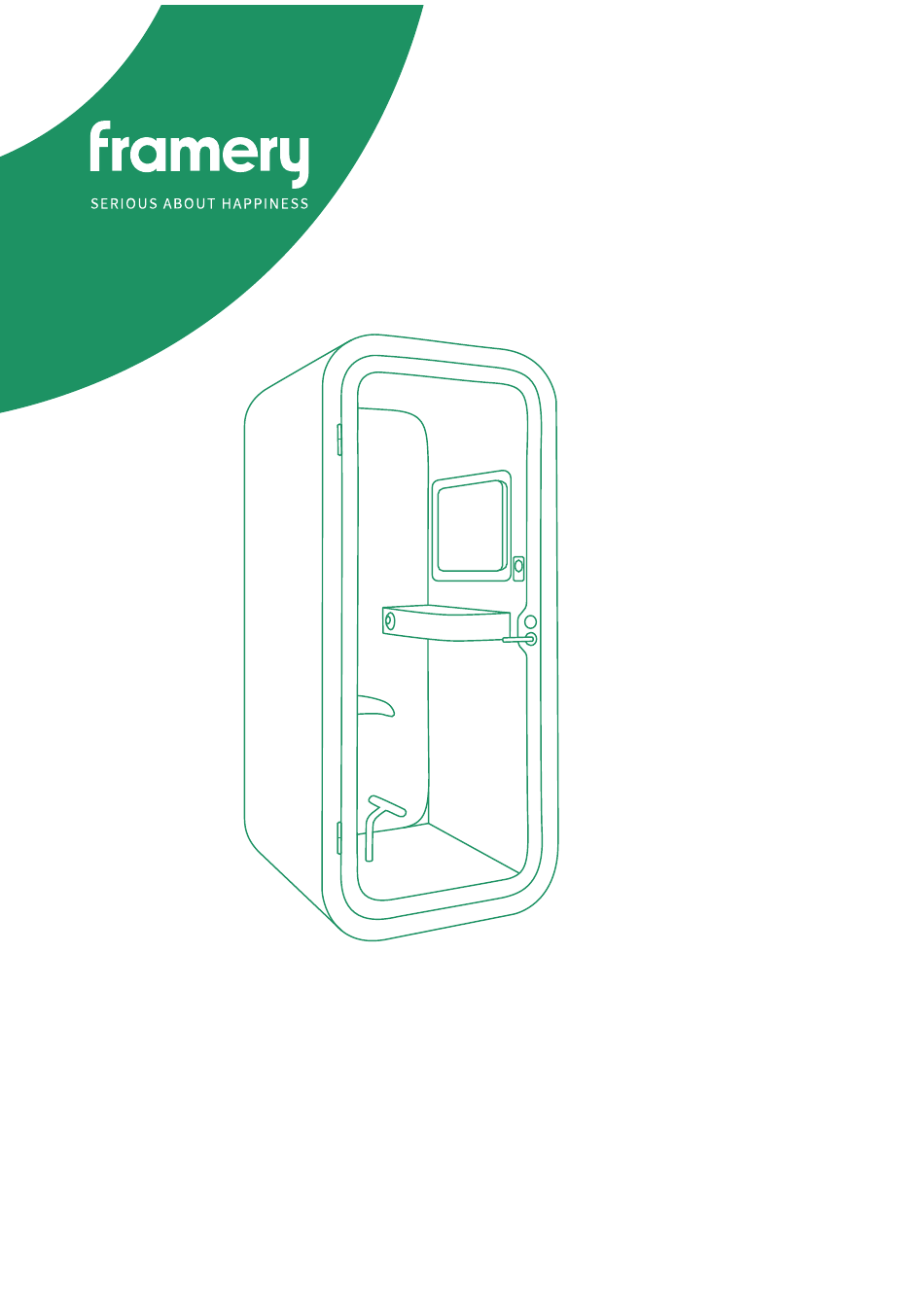

  • Page 1 Framery O VCR English Troubleshooting instructions Version 2.0...

  • Page 3: Table Of Contents

    Contents 1 Safety......................5 2 The door is leaking sound or does not seal properly......7 3 The body covers do not fit...............23 4 Power issues....................26 4.1 There is no electricity in the pod or the electricity goes on and off...... 26 4.2 The power outlet does not work................

  • Page 5: Safety

    Note: Never drop or insert any object into any opening unless instructed. Note: Do not place heavy objects on the roof of the pod. Note: Do not attach or hang extra weight from the door. Framery O VCR Troubleshooting instructions info@frameryacoustics.com...
  • Page 6 Installation environment The pod is intended to be used in the following conditions. • Ambient temperature: +15°C ... +30°C (59°F ... 86°F) • Humidity: max. 50% Framery O VCR Troubleshooting instructions info@frameryacoustics.com...

  • Page 7: The Door Is Leaking Sound Or Does Not Seal Properly

    Cause: The door is too low. The door is not vertically in the middle of the door opening. Solution: Adjust the door height. Remove the caps from the hinges. Framery O VCR Troubleshooting instructions info@frameryacoustics.com...
  • Page 8 To raise the door, insert the hex key into the top of the upper hinge and turn clockwise. To lower the door, turn counter-clockwise. Note: After the initial installation, the door normally does not have to be lowered, but raised. Framery O VCR Troubleshooting instructions info@frameryacoustics.com...
  • Page 9 Make sure that the door is aligned correctly. Test with a flashlight from the inside of the pod. If the flashlight shines through the door seams, adjust the door. Repeat steps 4–6 if needed. Close the door. Framery O VCR Troubleshooting instructions info@frameryacoustics.com...
  • Page 10 Note: Make sure that both hinges have the same height setting. 11. Install the caps. Cause: The floor of the pod is not leveled. Solution: Level the floor. Pull the carpet out from under the wall felts and remove (the carpet) from the pod. Framery O VCR Troubleshooting instructions info@frameryacoustics.com...
  • Page 11 Measure the floor module with a spirit level at four measuring points: • Along the sides • At the edge of the floor module (on the ABS strips) Framery O VCR Troubleshooting instructions info@frameryacoustics.com...
  • Page 12 Measure opposite points repeatedly and adjust the feet of the leveling screws gradually. Reinstall the carpet. Note: Make sure that the carpet is firmly in place and that there are no bumps. Framery O VCR Troubleshooting instructions info@frameryacoustics.com...
  • Page 13 Cause: The pod is not standing straight. Solution: Straighten the pod. Check the straightness of the pod with a spirit level on both sides. If the pod is not standing straight, complete the following steps. Remove the wall body covers. Framery O VCR Troubleshooting instructions info@frameryacoustics.com...
  • Page 14 Remove the roof and bottom body covers. Pull the carpet out from under the wall felts and remove (the carpet) from the pod. Framery O VCR Troubleshooting instructions info@frameryacoustics.com...
  • Page 15 Unscrew the 4x30 screws (8 pcs) and remove the wall cover panels (4 pcs). Unscrew the 4x30 screws (32 pcs) and remove the top and bottom cover panels (4 pcs). Framery O VCR Troubleshooting instructions info@frameryacoustics.com...
  • Page 16 Unscrew the 4x30 screws (4 pcs) and remove the floor cover panels (2 pcs). Unscrew the 4x30 screws (4 pcs) and remove the roof cover panels (2 pcs). Framery O VCR Troubleshooting instructions info@frameryacoustics.com...
  • Page 17 Remove the seal from the glass wall. 10. Open the door completely (180°). Framery O VCR Troubleshooting instructions info@frameryacoustics.com...
  • Page 18 11. Loosen all the frame and body bolts slightly. 12. Measure and push the pod walls as needed and, keeping them straight, tighten the bolts at the same time. Note: Do not overtighten the bolts. Framery O VCR Troubleshooting instructions info@frameryacoustics.com...
  • Page 19 13. Install a new seal to the glass wall. 14. Reinstall the removed parts. Cause: The door is sagging. Solution: Install an adjustment plate under the lower hinges. Open the door completely (180°). Framery O VCR Troubleshooting instructions info@frameryacoustics.com...
  • Page 20 Lift the door to detach it. Unscrew the 5x30 screws (4 pcs) and remove the lower hinges. Framery O VCR Troubleshooting instructions info@frameryacoustics.com...
  • Page 21 Cause: The door seal has come loose or is compressed. Solution: Reinstall the door seal. Insert the seal into the groove. Make sure that the seal is correctly installed. Tip: A spline roller can be a useful tool to help you work faster. Framery O VCR Troubleshooting instructions info@frameryacoustics.com...
  • Page 22 Framery O VCR Troubleshooting instructions info@frameryacoustics.com...

  • Page 23: The Body Covers Do Not Fit

    • The fold of the body cover will not go into the installation groove. • There is a gap between the roof or bottom body cover and the frame. • There is a big gap between two body covers. Figure 1: Gap between two body covers Framery O VCR Troubleshooting instructions info@frameryacoustics.com...
  • Page 24 Solution: Adjust the position of the wall cover panels. Remove the body cover that does not fit and the body cover next to it. Unscrew the 4x30 screws (8 pcs) and remove the wall cover panel. Framery O VCR Troubleshooting instructions info@frameryacoustics.com...
  • Page 25 Position the cover panel slightly higher or lower and reinstall the cover panel. Note: Make sure that the cover panel is positioned straight. Install the body covers. Framery O VCR Troubleshooting instructions info@frameryacoustics.com...

  • Page 26: Power Issues

    Solution: If needed, connect the power cord of the pod to another power outlet. Cause: One or more electrical connections are disconnected. Solution: Check all the electrical connections inside the table. Disconnect the power cord. Framery O VCR Troubleshooting instructions info@frameryacoustics.com...
  • Page 27 Remove the countersunk M6x25 screws (2 pcs) from the table bottom board and open the table bottom board. Check that all the electrical connections are secure. Framery O VCR Troubleshooting instructions info@frameryacoustics.com...
  • Page 28 Fasten the table bottom board with countersunk M6x25 screws (2 pcs). Note: Make sure that the cords are not between the table boards. Connect the power cord. Framery O VCR Troubleshooting instructions info@frameryacoustics.com...
  • Page 29 Cause: The power cord and AC extension cord are disconnected. Solution: Check that the connection between the power cord and AC extension cord is secure (power cord installed from the floor). Disconnect the power cord. Remove the wall body cover from the techwall. Framery O VCR Troubleshooting instructions info@frameryacoustics.com...
  • Page 30 Remove the bottom body cover. Unscrew the 4x30 screws (8 pcs) and remove the wall cover panel. Framery O VCR Troubleshooting instructions info@frameryacoustics.com...
  • Page 31 Check that the connection between the power cord and AC extension cord is secure. Install the removed parts in reverse order. Connect the power cord. Framery O VCR Troubleshooting instructions info@frameryacoustics.com...
  • Page 32 Solution: Check that the connection between the power cord and AC extension cord is secure (power cord installed from the roof). Disconnect the power cord. Remove the wall body cover from the techwall. Framery O VCR Troubleshooting instructions info@frameryacoustics.com...
  • Page 33 Remove the roof body cover. Unscrew the 4x30 screws (8 pcs) and remove the wall cover panel. Framery O VCR Troubleshooting instructions info@frameryacoustics.com...
  • Page 34 Check that the connection between the power cord and AC extension cord is secure. Install the removed parts in reverse order. Connect the power cord. Framery O VCR Troubleshooting instructions info@frameryacoustics.com...
  • Page 35 Cause: The fuse tripped. Solution: Reset the fuse. Disconnect the power cord. Remove countersunk M6x25 screws (2 pcs) from the table bottom board and open the table bottom board. Framery O VCR Troubleshooting instructions info@frameryacoustics.com...
  • Page 36 Turn the ON/OFF switch of the power unit in the "I" position. Fasten the table bottom board with countersunk M6x25 screws (2 pcs). Framery O VCR Troubleshooting instructions info@frameryacoustics.com...

  • Page 37: The Power Outlet Does Not Work

    Disconnect the faulty device from the power outlet. 4.2 The power outlet does not work Condition The fans and lights work normally. There is no electricity in the power outlet in the table. Framery O VCR Troubleshooting instructions info@frameryacoustics.com...
  • Page 38 Cause: The power outlet cord is disconnected. Solution: Check that the power outlet cord is connected. Disconnect the power cord. Remove countersunk M6x25 screws (2 pcs) from the table bottom board and open the table bottom board. Framery O VCR Troubleshooting instructions info@frameryacoustics.com...
  • Page 39 Check that the power outlet cord is securely connected to the AC splitter. Fasten the table bottom board with countersunk M6x25 screws (2 pcs). Framery O VCR Troubleshooting instructions info@frameryacoustics.com...
  • Page 40 Connect the power cord. Framery O VCR Troubleshooting instructions info@frameryacoustics.com...

  • Page 41: Fans And Lights

    The fans and light do not switch on when a person enters the pod but the power outlet in the table works. Cause: One or more electrical connections are disconnected. Solution: Check all the electrical connections inside the table. Disconnect the power cord. Framery O VCR Troubleshooting instructions info@frameryacoustics.com...
  • Page 42 Remove the countersunk M6x25 screws (2 pcs) from the table bottom board and open the table bottom board. Check that all the electrical connections are secure. Framery O VCR Troubleshooting instructions info@frameryacoustics.com...
  • Page 43 Fasten the table bottom board with countersunk M6x25 screws (2 pcs). Note: Make sure that the cords are not between the table boards. Connect the power cord. Framery O VCR Troubleshooting instructions info@frameryacoustics.com...
  • Page 44 Cause: The roof module DC cord and wall module DC cord are disconnected. Solution: Check that the connection between the roof module DC cord and wall module DC cord is secure. Disconnect the power cord. Remove the wall body cover from the techwall. Framery O VCR Troubleshooting instructions info@frameryacoustics.com...
  • Page 45 Remove the roof body cover. Unscrew the 4x30 screws (8 pcs) and remove the wall cover panel. Framery O VCR Troubleshooting instructions info@frameryacoustics.com...
  • Page 46 If the fans and light switch on normally and go off after 8 minutes, but do not switch on when a person enters the pod, the motion detector is broken. Solution: Contact Framery support for a replacement part. Framery O VCR Troubleshooting instructions...

  • Page 47: The Ceiling Light Does Not Switch On

    If the green LED in the PWR IN connector of the control unit is not lit, the converter that supplies power to the control unit is broken. Solution: Contact Framery support for a replacement part. 5.2 The ceiling light does not switch on Condition The ceiling light does not work.
  • Page 48 Gently pull out the light from the ceiling. Note: Be careful when removing the light. The metal springs holding the light in place may break. Check that the connectors are securely connected. Framery O VCR Troubleshooting instructions info@frameryacoustics.com...
  • Page 49 Push the light back into the ceiling. Connect the power cord. Framery O VCR Troubleshooting instructions info@frameryacoustics.com...
  • Page 50 Cause: The light cord is not connected to the control unit. Solution: Check that the light cord is connected to the control unit. Disconnect the power cord. Remove countersunk M6x25 screws (2 pcs) from the table bottom board and open the table bottom board. Framery O VCR Troubleshooting instructions info@frameryacoustics.com...
  • Page 51 Check that the light cord is connected to the LED 1 connector of the control unit. Fasten the table bottom board with countersunk M6x25 screws (2 pcs). Note: Make sure that the cords are not between the table boards. Framery O VCR Troubleshooting instructions info@frameryacoustics.com...

  • Page 52: The Display Light Does Not Switch On

    Connect the power cord. Cause: One of the wires of the roof module or wall module DC cord is broken or disconnected. Solution: Contact Framery support for a replacement part. 5.3 The display light does not switch on Condition The display light does not work. The fans, ceiling light, and power outlet in the table work normally.
  • Page 53 Solution: Check that the display light cord is connected to the control unit. Disconnect the power cord. Remove countersunk M6x25 screws (2 pcs) from the table bottom board and open the table bottom board. Framery O VCR Troubleshooting instructions info@frameryacoustics.com...
  • Page 54 Check that the display light cord is connected to the LED 2 connector of the control unit. Fasten the table bottom board with countersunk M6x25 screws (2 pcs). Note: Make sure that the cords are not between the table boards. Framery O VCR Troubleshooting instructions info@frameryacoustics.com...

  • Page 55: The Control Panel Does Not Work

    Connect the power cord. 5.4 The control panel does not work Cause: The control panel cord is disconnected. Solution: Check that the control panel cord is connected. Framery O VCR Troubleshooting instructions info@frameryacoustics.com...
  • Page 56 Solution: Check that the control panel cord is connected to the control unit. Disconnect the power cord. Remove countersunk M6x25 screws (2 pcs) from the table bottom board and open the table bottom board. Framery O VCR Troubleshooting instructions info@frameryacoustics.com...
  • Page 57 Check that the control panel cord is connected to the UI connector of the control unit. Fasten the table bottom board with countersunk M6x25 screws (2 pcs). Note: Make sure that the cords are not between the table boards. Framery O VCR Troubleshooting instructions info@frameryacoustics.com...

  • Page 58: When You Adjust The Ceiling Light, The Display Light Is Also Adjusted

    If the ceiling light is connected to the connector reserved for the display light (LED 2) and vice versa, the lights are controlled together. Solution: Check that the lights are connected to the correct connectors of the control unit. Disconnect the power cord. Framery O VCR Troubleshooting instructions info@frameryacoustics.com...
  • Page 59 Remove countersunk M6x25 screws (2 pcs) from the table bottom board. Check that the ceiling light cord is connected to the LED 1 connector and the display light cord is connected to the LED 2 connector of the control unit. Framery O VCR Troubleshooting instructions info@frameryacoustics.com...

  • Page 60: One Or Both Fans Do Not Work

    Note: Make sure that the cords are not between the table boards. Connect the power cord. 5.6 One or both fans do not work Condition The light and power outlet work normally. The fans are not running. Framery O VCR Troubleshooting instructions info@frameryacoustics.com...
  • Page 61 Cause: The fan module's electrical connections are disconnected. Solution: Check that the fan module’s electrical connections are secure. Disconnect the power cord. Remove the 3.5x16 screws (4 pcs) and take out the fan module. Framery O VCR Troubleshooting instructions info@frameryacoustics.com...
  • Page 62 Check that the fan DC cord and the DC extension cord are securely connected. Reinstall the fan module. Framery O VCR Troubleshooting instructions info@frameryacoustics.com...
  • Page 63 Connect the power cord. Cause: The fan cord is not connected to the control unit. Solution: Check that the fan cord is connected to the control unit. Disconnect the power cord. Framery O VCR Troubleshooting instructions info@frameryacoustics.com...
  • Page 64 Remove countersunk M6x25 screws (2 pcs) from the table bottom board and open the table bottom board. Check that the fan cord is connected to the FAN 1 connector of the control unit. Framery O VCR Troubleshooting instructions info@frameryacoustics.com...
  • Page 65 Note: Make sure that the cords are not between the table boards. Connect the power cord. Cause: One of the wires of the roof module or wall module DC cord is broken or disconnected. Solution: Contact Framery support for a replacement part. Framery O VCR Troubleshooting instructions info@frameryacoustics.com...

  • Page 66: The Fans Are Noisy

    The fans are exceptionally loud or make an abnormal sound. Cause: There is something touching the fan blades. Solution: Check that there is nothing touching the fan blades. Disconnect the power cord. Remove the 3.5x16 screws (4 pcs) from the fan module. Framery O VCR Troubleshooting instructions info@frameryacoustics.com...
  • Page 67 Take out the fan module and disconnect the fan DC cord. Check that there is nothing touching the blades. Connect the fan DC cord. Framery O VCR Troubleshooting instructions info@frameryacoustics.com...
  • Page 68 Solution: If needed, move the pod to a more suitable location. Cause: The fan speed is set to 100%. By default, the fan speed is set to the maximum speed. Reducing the fan speed, reduces the noise the fans produce. Framery O VCR Troubleshooting instructions info@frameryacoustics.com...
  • Page 69 80 % (when occupied). Solution: Reduce the fan speed. Disconnect the power cord. Remove the countersunk M6x25 screws (2 pcs) from the table bottom board and open the table bottom board. Framery O VCR Troubleshooting instructions info@frameryacoustics.com...
  • Page 70 Note: Reducing the fan speed decreases the rate of air flow inside the pod. Adjusting the fan speed to under 80 % when occupied is not recommended. It is at your own risk to set the fan speed to under 80 % (when occupied). Framery O VCR Troubleshooting instructions info@frameryacoustics.com...
  • Page 71 92 % 50 % 100 % 25 % 92 % 50 % Fasten the table bottom board with countersunk M6x25 screws (2 pcs). Note: Make sure that the cords are not between the table boards. Framery O VCR Troubleshooting instructions info@frameryacoustics.com...

  • Page 72: The Air Inside The Pod Does Not Feel Fresh

    Connect the power cord. 5.8 The air inside the pod does not feel fresh Cause: The ventilation channels are dirty. Solution: Clean the ventilation channels with a vacuum cleaner. Framery O VCR Troubleshooting instructions info@frameryacoustics.com...
  • Page 73 Cause: The fans do not work. Solution: Check that the fan module’s electrical connections are secure. Disconnect the power cord. Remove the 3.5x16 screws (4 pcs) and take out the fan module. Framery O VCR Troubleshooting instructions info@frameryacoustics.com...
  • Page 74 Check that the fan DC cord and the DC extension cord are securely connected. Reinstall the fan module. Framery O VCR Troubleshooting instructions info@frameryacoustics.com...
  • Page 75 Connect the power cord. Solution: Check that the fan cord is connected to the control unit. Disconnect the power cord. Framery O VCR Troubleshooting instructions info@frameryacoustics.com...
  • Page 76 Remove countersunk M6x25 screws (2 pcs) from the table bottom board and open the table bottom board. Check that the fan cord is connected to the FAN 1 connector of the control unit. Framery O VCR Troubleshooting instructions info@frameryacoustics.com...
  • Page 77 Fasten the table bottom board with countersunk M6x25 screws (2 pcs). Note: Make sure that the cords are not between the table boards. Connect the power cord. Framery O VCR Troubleshooting instructions info@frameryacoustics.com...
  • Page 78 Solution: Adjust the settings of the motion detector. Solution: Adjust the settings of the motion detector. Disconnect the power cord. Remove the countersunk M6x25 screws (2 pcs) from the table bottom board and open the table bottom board. Framery O VCR Troubleshooting instructions info@frameryacoustics.com...
  • Page 79 Note: Reducing the fan speed decreases the rate of air flow inside the pod. Adjusting the fan speed to under 80 % when occupied is not recommended. It is at your own risk to set the fan speed to under 80 % (when occupied). Framery O VCR Troubleshooting instructions info@frameryacoustics.com...
  • Page 80 92 % 50 % 100 % 25 % 92 % 50 % Fasten the table bottom board with countersunk M6x25 screws (2 pcs). Note: Make sure that the cords are not between the table boards. Framery O VCR Troubleshooting instructions info@frameryacoustics.com...
  • Page 81 If the pod is located under a heating duct or in direct sunlight, the temperature inside the pod might rise. If there is not enough space around the pod, air does not circulate sufficiently. Figure 2: Operating space measurements Framery O VCR Troubleshooting instructions info@frameryacoustics.com...

  • Page 82: Door Handle And Lock

    6 Door handle and lock 6.1 The door handle is loose Cause: The screws are not properly tightened. Solution: Reinstall the handle. Loosen the set screw on the inside handle. Remove the M5x32 screws. Framery O VCR Troubleshooting instructions info@frameryacoustics.com...
  • Page 83 Adjust the spindle at least 5 mm to find a new spot for the set screw to pierce the spindle. Note: Do not turn or rotate the spindle in any way, because it can only be pierced on one side. Framery O VCR Troubleshooting instructions info@frameryacoustics.com...
  • Page 84 Note: In the final position, the head of the set screw is level with the handle surface. Do either of the following: • Replace the M5x32 screws with new ones. Note: Make sure that the new screws have Loctite. • Add Loctite to the existing screws. Framery O VCR Troubleshooting instructions info@frameryacoustics.com...
  • Page 85 Tighten the set screw on the inside handle. The resistance increases steadily until the screw pierces the spindle. Note: In the final position, the head of the set screw is level with the handle surface. Framery O VCR Troubleshooting instructions info@frameryacoustics.com...

  • Page 86: The Door Handle Is Tight

    Cause: The screws used to attach the handles are overtightened. Solution: Reinstall the handle. Loosen the set screw on the inside handle. Remove the M5x32 screws. Remove the inside handle and the outside handle with the spindle attached to it. Framery O VCR Troubleshooting instructions info@frameryacoustics.com...
  • Page 87 Adjust the spindle at least 5 mm to find a new spot for the set screw to pierce the spindle. Note: Do not turn or rotate the spindle in any way, because it can only be pierced on one side. Framery O VCR Troubleshooting instructions info@frameryacoustics.com...
  • Page 88 Note: In the final position, the head of the set screw is level with the handle surface. Do either of the following: • Replace the M5x32 screws with new ones. Note: Make sure that the new screws have Loctite. • Add Loctite to the existing screws. Framery O VCR Troubleshooting instructions info@frameryacoustics.com...

  • Page 89: The Lock Latch Is Stiff Or Gets Stuck

    Note: In the final position, the head of the set screw is level with the handle surface. 6.3 The lock latch is stiff or gets stuck Condition: The lock latch gets stuck in either the extended or retracted position. Framery O VCR Troubleshooting instructions info@frameryacoustics.com...
  • Page 90 Cause: The screws used to attach the handles are overtightened. Solution: Reinstall the handle. Loosen the set screw on the inside handle. Remove the M5x32 screws. Remove the inside handle and the outside handle with the spindle attached to it. Framery O VCR Troubleshooting instructions info@frameryacoustics.com...
  • Page 91 Adjust the spindle at least 5 mm to find a new spot for the set screw to pierce the spindle. Note: Do not turn or rotate the spindle in any way, because it can only be pierced on one side. Framery O VCR Troubleshooting instructions info@frameryacoustics.com...
  • Page 92 Note: In the final position, the head of the set screw is level with the handle surface. Do either of the following: • Replace the M5x32 screws with new ones. Note: Make sure that the new screws have Loctite. • Add Loctite to the existing screws. Framery O VCR Troubleshooting instructions info@frameryacoustics.com...
  • Page 93 Tighten the set screw on the inside handle. The resistance increases steadily until the screw pierces the spindle. Note: In the final position, the head of the set screw is level with the handle surface. Framery O VCR Troubleshooting instructions info@frameryacoustics.com...
  • Page 94 Framery O VCR Troubleshooting instructions info@frameryacoustics.com...
  • Page 96 Framery O VCR Troubleshooting instructions Patamäenkatu 7 33900 Tampere FINLAND VAT: FI 23527139...
