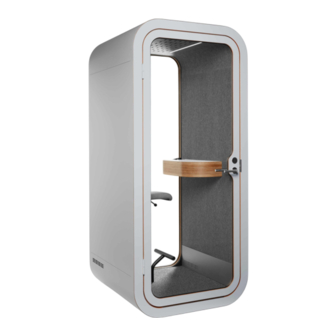

Framery O VCR
English
Maintenance instructions
Version 2.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the O and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Framery O

Summary of Contents for Framery O

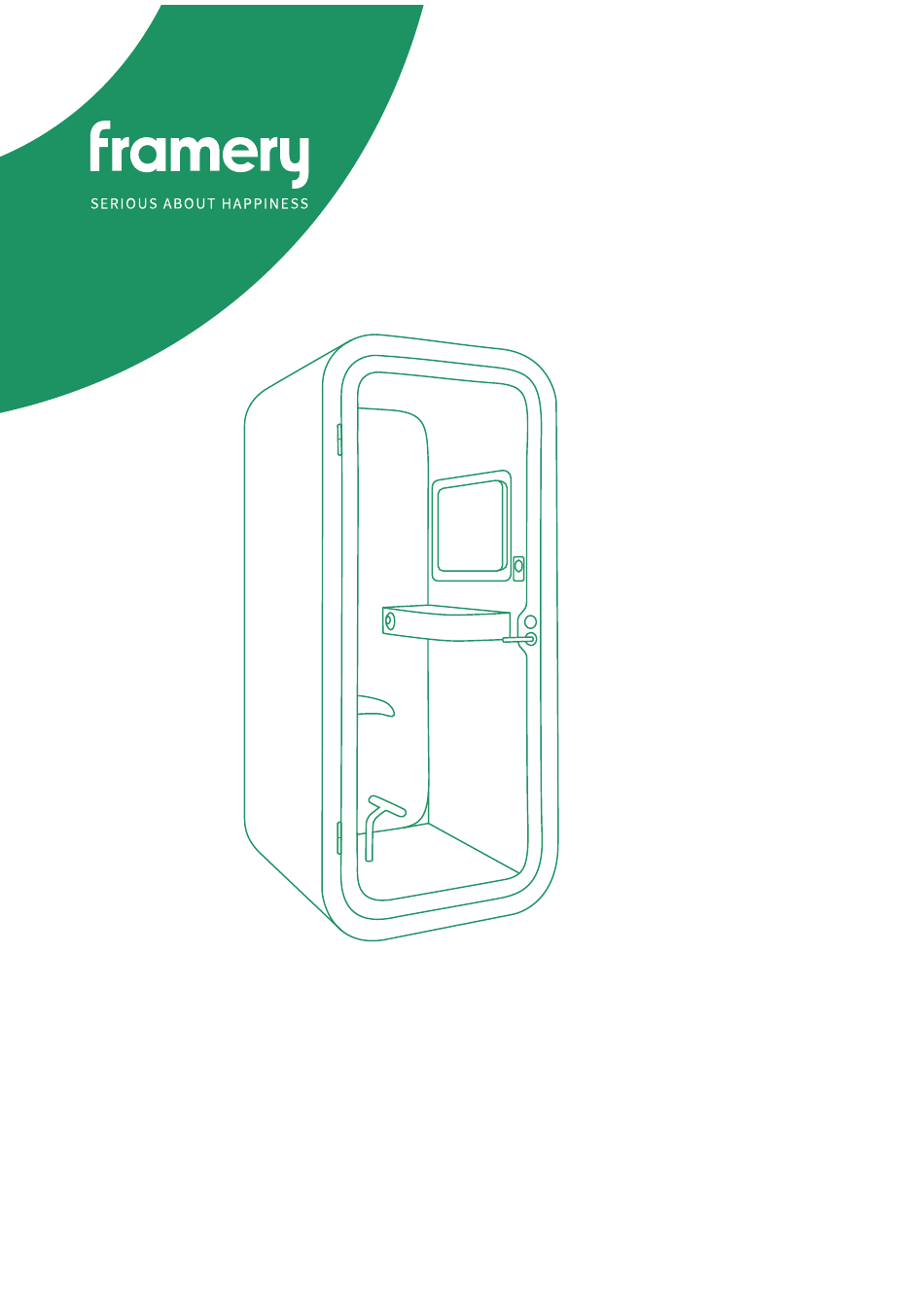

  • Page 1 Framery O VCR English Maintenance instructions Version 2.0...

  • Page 3: Table Of Contents

    Contents 1 Safety......................5 2 Tools and accessories................7 3 General inspection..................8 4 Check sound insulation................9 5 Disassemble the necessary parts............10 5.1 Disconnect the power cord.................. 10 5.2 Remove the body covers..................10 5.3 Remove the carpet....................11 5.4 Remove the cover panels..................
  • Page 4 11.3 Install the carpet....................41 11.4 Install the wall cover panels................42 11.5 Install the roof cover panels................42 11.6 Install the bottom body covers................43 11.7 Install the roof body covers................46 11.8 Install the wall body covers................48 12 Clean up....................50 13 Finalize......................

  • Page 5: Safety

    Note: Never drop or insert any object into any opening unless instructed. Note: Do not place heavy objects on the roof of the pod. Note: Do not attach or hang extra weight from the door. Framery O VCR Maintenance instructions info@frameryacoustics.com...
  • Page 6 Installation environment The pod is intended to be used in the following conditions. • Ambient temperature: +15°C ... +30°C (59°F ... 86°F) • Humidity: max. 50% Framery O VCR Maintenance instructions info@frameryacoustics.com...

  • Page 7: Tools And Accessories

    Note: Use a white rubber mallet to prevent marks on the body covers. Note: Use a plastic chisel to remove the body covers. Note: Use a lint-free cloth to clean the pod. Note: Use a mild alcohol-based cleaning solution to clean the pod. Framery O VCR Maintenance instructions info@frameryacoustics.com...

  • Page 8: General Inspection

    16 Straighten the walls on page 17 Adjust the door height on page 27 Straighten the sagging door on page 25 Check sound insulation on page 9 Adjust the handle on page 32 Framery O VCR Maintenance instructions info@frameryacoustics.com...

  • Page 9: Check Sound Insulation

    Listen to the incoming sounds or check the seal seam. Tip: Typical leakage point is the handle side top corner. Use a flashlight to locate the part of the seam where the light shines through. Framery O VCR Maintenance instructions info@frameryacoustics.com...

  • Page 10: Disassemble The Necessary Parts

    5.1 Disconnect the power cord To provide a safe working environment, disconnect the power cord. 5.2 Remove the body covers To access the frame bolts, remove the body covers. Remove the wall body covers. Framery O VCR Maintenance instructions info@frameryacoustics.com...

  • Page 11: Remove The Carpet

    Place the removed covers in a safe place out of the way. 5.3 Remove the carpet To access the body bolts, remove the carpet. Pull the carpet out from under the wall felts and remove it from the pod. Framery O VCR Maintenance instructions info@frameryacoustics.com...

  • Page 12: Remove The Cover Panels

    Remove the wooden cover panels to access the frame bolts that you should check and tighten, if needed. The screws are 4x30 AW20 (TX20 torx screwdriver can be used). Unscrew the 4x30 screws (8 pcs) and remove the wall cover panels (4 pcs). Framery O VCR Maintenance instructions info@frameryacoustics.com...
  • Page 13 Unscrew the 4x30 screws (32 pcs) and remove the top and bottom cover panels (4 pcs). Unscrew the 4x30 screws (4 pcs) and remove the floor cover panels (2 pcs). Framery O VCR Maintenance instructions info@frameryacoustics.com...

  • Page 14: Detach The Fan Module

    Unscrew the 4x30 screws (4 pcs) and remove the roof cover panels (2 pcs). 5.5 Detach the fan module Unscrew the 3.5x16 screws (4 pcs) holding the fan module in its place. Lift the fan module out of the roof module. Framery O VCR Maintenance instructions info@frameryacoustics.com...
  • Page 15 Detach the fan DC cord and DC extension cord. Place the fan module in a safe place out of the way. Framery O VCR Maintenance instructions info@frameryacoustics.com...

  • Page 16: Check The Straightness Of The Pod

    Measure the floor module with a spirit level at four measuring points: • Along the sides • At the edge of the floor module (on the ABS strips) Measure opposite points repeatedly and adjust the feet of the leveling screws gradually. Framery O VCR Maintenance instructions info@frameryacoustics.com...

  • Page 17: Straighten The Walls

    Disassemble all the necessary parts before adjusting the shape of the pod. See Disassemble the necessary parts on page 10. If the walls are not straight, perform the following task. Remove the seal from the glass wall. Open the door completely (180°). Framery O VCR Maintenance instructions info@frameryacoustics.com...
  • Page 18 Loosen all the frame and body bolts slightly. Measure and push the pod walls as needed and, keeping them straight, tighten the bolts at the same time. Note: Do not overtighten the bolts. Framery O VCR Maintenance instructions info@frameryacoustics.com...

  • Page 19: Tighten The Frame And Body Bolts

    Disassemble all the necessary parts to access all the bolts that you should tighten. See Disassemble the necessary parts on page 10. Even if the pod walls are straight, tighten all the frame and body bolts of the pod. Open the door completely (180°). Framery O VCR Maintenance instructions info@frameryacoustics.com...
  • Page 20 Tighten all the frame and body bolts. Note: Do not overtighten them. Framery O VCR Maintenance instructions info@frameryacoustics.com...

  • Page 21: Service The Door

    7 Service the door 7.1 Check the hinges 7.1.1 Replace the hinges Open the door completely (180°). Lift the door to detach it. Framery O VCR Maintenance instructions info@frameryacoustics.com...
  • Page 22 Unscrew the 5x30 screws (16 pcs) and remove the hinges. Note: Do not use power tools. Attach the new hinges with 5x30 screws (16 pcs). Framery O VCR Maintenance instructions info@frameryacoustics.com...

  • Page 23: Lubricate The Hinges

    Lift the door into place. 7.1.2 Lubricate the hinges If you have replaced the hinges according to section Replace the hinges on page 21, you do not need to perform this task. Open the door completely (180°). Framery O VCR Maintenance instructions info@frameryacoustics.com...
  • Page 24 Lift the door to detach it. Apply a small drop of lubricant on top of the hinge joints. Wipe away any stains. Framery O VCR Maintenance instructions info@frameryacoustics.com...

  • Page 25: Straighten The Sagging Door

    Lift the door into place. 7.1.3 Straighten the sagging door Open the door completely (180°). Framery O VCR Maintenance instructions info@frameryacoustics.com...
  • Page 26 Lift the door to detach it. Unscrew the 5x30 screws (4 pcs) and remove the lower hinges. Framery O VCR Maintenance instructions info@frameryacoustics.com...

  • Page 27: Adjust The Door Height

    Install an adjustment plate into the lower hinge mounting hole and attach the lower hinges. Lift the door into place. 7.1.4 Adjust the door height Make sure that the door is vertically aligned correctly. If the door is not in the middle of the frame, adjust it. Framery O VCR Maintenance instructions info@frameryacoustics.com...
  • Page 28 Remove the caps from the hinges. Open the door and loosen the set screws. Close the door. Framery O VCR Maintenance instructions info@frameryacoustics.com...
  • Page 29 Note: After the initial installation, the door normally does not have to be lowered, but raised. Adjust the height setting of the lower hinge accordingly so that the load on both hinges is the same. Turn clockwise to raise and counter-clockwise to lower the setting. Framery O VCR Maintenance instructions info@frameryacoustics.com...
  • Page 30 If the flashlight shines through the door seams, adjust the door. Repeat steps 4–6 if needed. Close the door. 10. Open the door and tighten the set screws when the adjustment is complete. Note: Make sure that both hinges have the same height setting. Framery O VCR Maintenance instructions info@frameryacoustics.com...

  • Page 31: Check The Door Seal

    11. Install the caps. 7.2 Check the door seal Inspect the door seal for defects and replace the seal, if needed. Remove the old seal. Framery O VCR Maintenance instructions info@frameryacoustics.com...

  • Page 32: Check The Door Handle

    Tip: A spline roller can be a useful tool to help you work faster. 7.3 Check the door handle 7.3.1 Adjust the handle If the screws are too loose or too tight, adjust the handle. Loosen the set screw on the inside handle. Framery O VCR Maintenance instructions info@frameryacoustics.com...
  • Page 33 Remove the M5x32 screws. Remove the inside handle and the outside handle with the spindle attached to it. Loosen the set screw on the outside handle. Framery O VCR Maintenance instructions info@frameryacoustics.com...
  • Page 34 Tighten the set screw on the outside handle. The resistance increases steadily until the screw pierces the spindle. Note: In the final position, the head of the set screw is level with the handle surface. Framery O VCR Maintenance instructions info@frameryacoustics.com...

  • Page 35: Check The Strike Plate

    Tighten the set screw on the inside handle. The resistance increases steadily until the screw pierces the spindle. Note: In the final position, the head of the set screw is level with the handle surface. 7.3.2 Check the strike plate Check the condition of the strike plate. Framery O VCR Maintenance instructions info@frameryacoustics.com...

  • Page 36: Lubricate The Lock

    7.3.3 Lubricate the lock Press the door handle down. The lock latch withdraws into the lock case. Spray some lubricant into the lock case above and below the lock latch. Wipe off any excess oil. Framery O VCR Maintenance instructions info@frameryacoustics.com...

  • Page 37: Tighten The Stool And Table Bolts

    8 Tighten the stool and table bolts Tighten the stool screws at the base of the pedestal. Tighten the table bolts. Wipe the table surface with a clean cloth. Framery O VCR Maintenance instructions info@frameryacoustics.com...

  • Page 38: Clean The Fans And Ventilation Channels

    Note: Do not press the blades of the fan. Clean the other parts under the fan module with a vacuum cleaner and a cloth. Clean the ventilation channels with a vacuum cleaner. Related tasks Replace the fan module Framery O VCR Maintenance instructions info@frameryacoustics.com...

  • Page 39: Check All The Electrical Connections

    10 Check all the electrical connections Check the connections inside the wall. Note: Note that the power cord may have been installed to either the roof module or the floor module. Check the connections inside the table. Framery O VCR Maintenance instructions info@frameryacoustics.com...

  • Page 40: Reassemble

    11 Reassemble 11.1 Replace the fan module Connect the DC connectors. Install the fan module with 3.5x16 screws (4 pcs). Framery O VCR Maintenance instructions info@frameryacoustics.com...

  • Page 41: Install The Floor Cover Panels

    Note: Place the countersunk holes upwards. Use the existing screw holes. 11.3 Install the carpet Slide the carpet around the stool and under the wall felt. Note: Make sure that the carpet is firmly in place and that there are no bumps. Framery O VCR Maintenance instructions info@frameryacoustics.com...

  • Page 42: Install The Wall Cover Panels

    11.5 Install the roof cover panels Install the roof cover panels (2 pcs) with 4x30 screws (2 pcs each). Note: Place the countersunk holes upwards. Use the existing screw holes. Framery O VCR Maintenance instructions info@frameryacoustics.com...

  • Page 43: Install The Bottom Body Covers

    11.6 Install the bottom body covers Slide the left-hand bottom body cover under the pod. Guide the body cover folds into the installation grooves under the pod. Framery O VCR Maintenance instructions info@frameryacoustics.com...
  • Page 44 If you installed the power cord to the floor module, install the lead-through rubber to the right-hand bottom body cover. Bend the rubber into shape before installing it. Note: You only have to do this when installing for the first time. Framery O VCR Maintenance instructions info@frameryacoustics.com...
  • Page 45 Note: Align the body cover to the door frame. Make sure that there are no gaps between the body cover and the door frame. Make sure that the body cover is installed evenly and aligned correctly. Framery O VCR Maintenance instructions info@frameryacoustics.com...

  • Page 46: Install The Roof Body Covers

    Note: Align the cover to the door frame. Make sure that there are no gaps between the body cover and the door frame. Make sure that the body cover is installed evenly and aligned correctly. Framery O VCR Maintenance instructions info@frameryacoustics.com...
  • Page 47 Place the upper fold of the roof body cover into the installation groove on the right-hand side of the roof. Note: If you installed the power cord to the roof module, guide the power cord out of the cut in the cover. Framery O VCR Maintenance instructions info@frameryacoustics.com...

  • Page 48: Install The Wall Body Covers

    Make sure that the body cover is installed evenly and aligned correctly. 11.8 Install the wall body covers Place the upper body cover fold against the wall module and slide it into the upper installation groove. Framery O VCR Maintenance instructions info@frameryacoustics.com...
  • Page 49 Note: Make sure that the body cover is installed evenly and aligned correctly. Use a white rubber mallet to tap the wall covers into alignment if needed. Repeat the steps for the other wall body cover. Framery O VCR Maintenance instructions info@frameryacoustics.com...

  • Page 50: Clean Up

    12 Clean up Clean the outer and inner surfaces with mild alcohol-based cleaning solution and a lint- free cloth. Vacuum clean the interior. Vacuum clean the working area. Framery O VCR Maintenance instructions info@frameryacoustics.com...

  • Page 51: Finalize

    13 Finalize Connect the power cord. Check that the power outlet in the table works. Check the functionality of fans and light. The light should switch off after approximately eight minutes of no activity. Framery O VCR Maintenance instructions info@frameryacoustics.com...
  • Page 52 Framery O VCR Maintenance instructions info@frameryacoustics.com...
  • Page 54 Framery O VCR Maintenance instructions Patamäenkatu 7 33900 Tampere FINLAND VAT: FI 23527139...
