Framery One Compact Quick Installation Manual

Framery One Compact
Quick Installation Guide

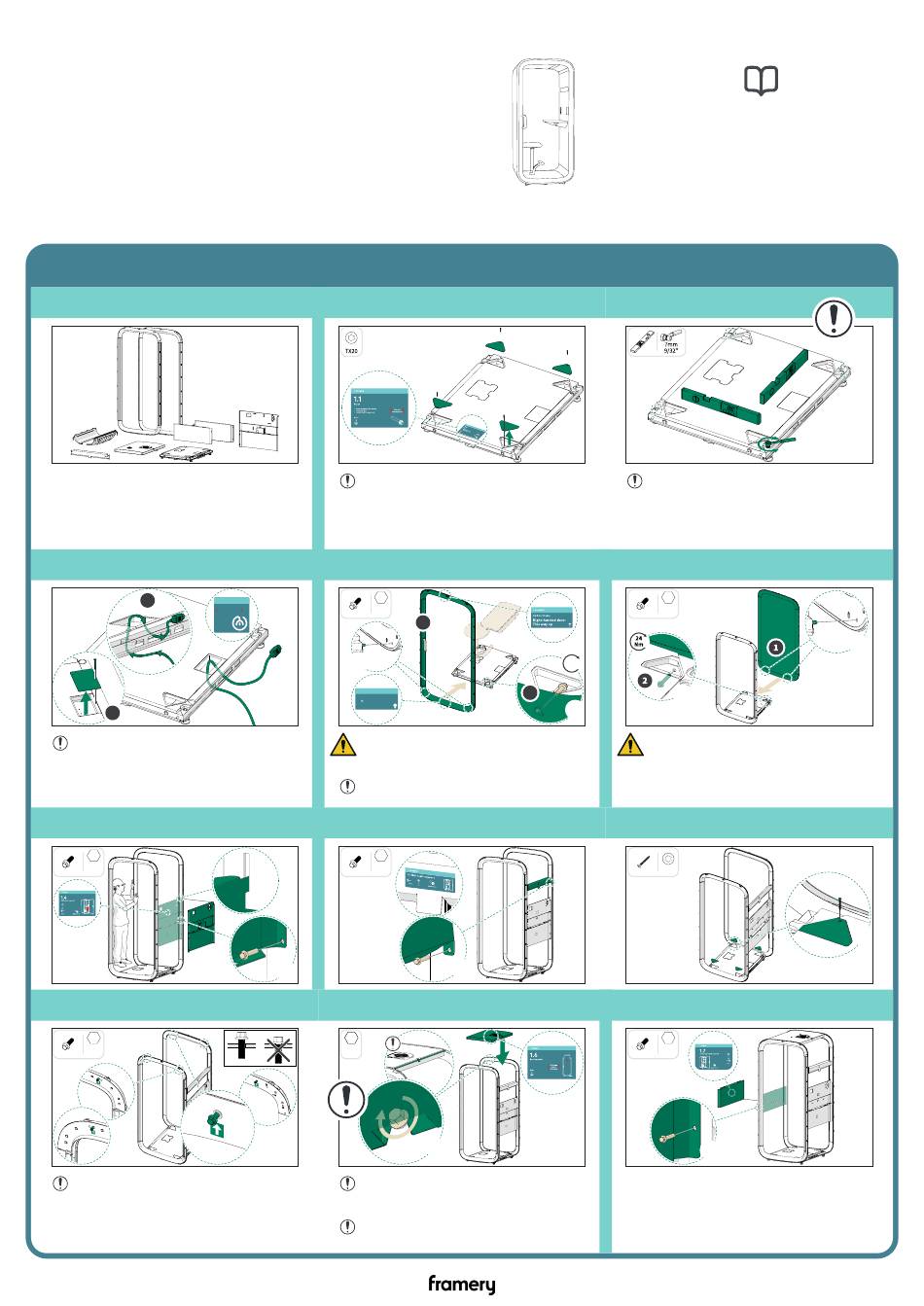

1. CHASSIS
Unpack the following parts
1.1 Floor - 1.2 Door frame - 1.3 Glass wall
- 1.4 Table wall support - 1.5 Wall light
support - 1.6 Roof module -
1.7 Lower back wall support - 1.8 Upper
back wall support - 1.9 Kickboards
AC power cord (floor)
2
1. CHASSIS
AC power cord
1
If the power cord is routed through
the roof, continue to the next phase.
The power cord is installed later after
connecting the electrics.
1.4 Table wall support
8x
13mm
M8x16 1/2"
1.6 Roof module
4x
13mm
M8x16 1/2"
Make sure that the fan cables or the
roof module seal do not get pinned
between the roof module and pod
frame.
version 3
1.1 Floor
If the delivery includes the optional
casters, see the full installation
manual for instructions on how to
install the casters.
1.2 Door frame
2x
13mm
M8x55 1/2"
1
2x
1. CHASSIS
1.2 Door frame
Le -handed door:
This way up
Hold the door frame upright while
another installation technician secures
it to the floor module.
The orientation of the door frame
determines the door handedness.
1.5 Wall light support
4x
13mm
M8x16 1/2"
4x
8x
13mm 13mm 13mm
1/2" 1/2" 1/2"
4x
Before tightening the screws, pull
down firmly on the roof module to
make sure that it is seated properly.
Remove the blue foam from the roof
module.
FOR MORE DETAILED
INSTALLATION INSTRUCTIONS, SEE
THE FULL INSTALLATION MANUAL
PROVIDED IN THE FASTENERS AND
ACCESSORIES 1 BOX.
If the floor is not leveled, the sound
insulation of the pod will be improper.
Level the floor and after leveling, stand
on it to make sure that it is stable.
1.3 Glass wall
2x
13mm
M8x55 1/2"
24
Nm
2 2x
2x
Hold the glass wall upright until
another installation technician has
installed the table wall support
between the frames.
4x
M4x20 TX20
1.7 Lower back wall support
4x
13mm
M8x16 1/2"
2x
4x
4x
