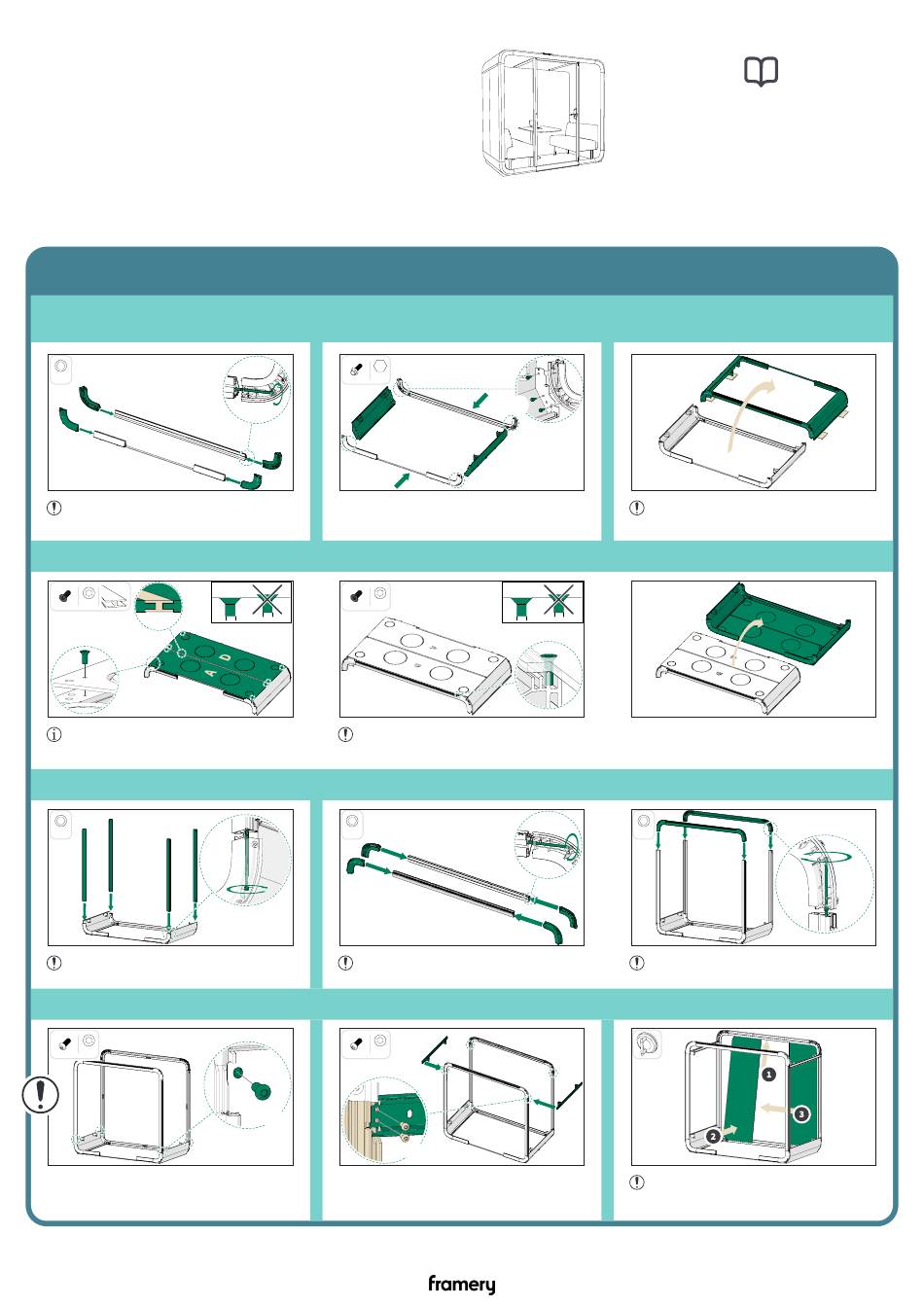

Framery Four Quick Installation Manual

Framery Four
Quick Installation Guide
SCREWS AND BOLTS ARE IN THE
FASTENERS ACCESSORIES 1 BOX.
1. CHASSIS
1.1 Front frame
1.2 Back frame
6mm
Make sure that the bolts are properly
tightened.
8x
M6x16 TX30
Place the corner frame boxes under
the floor boards to avoid bending the
boards.
1.5. Vertical frames
6mm
Make sure that the bolts are properly
tightened.
4x
M6x16 TX30
1.3 Bottom corners
12x
M8x25 13mm
25x
M6x16 TX30
Make sure that the screw heads are
level with the floor boards.
1.6 Horizontal frames
6mm
Make sure that the bolts are properly
tightened.
1.7 Horizontal supports
8x
M6x16 TX30
4x
2x
INSTALLATION INSTRUCTIONS, SEE
THE FULL INSTALLATION MANUAL
PROVIDED IN THE FASTENERS AND
1.4 Floor boards
3x
Place a carpet on the floor before
flipping the bottom frame to protect
the floor from scratches.
6mm
Make sure that the bolts are properly
tightened.
1.8 Back glasses
Handle glasses with care. Do not slide
the glasses with force against the
vertical frame.
FOR MORE DETAILED
ACCESSORIES 1 BOX.
