Safety Prior to handling the machine this instruction manual should be read and understood. If anything needs to be clarified please contact your Busch representative. Read carefully before use and keep for future reference. This instruction manual remains valid as long as the customer does not change anything on the product.

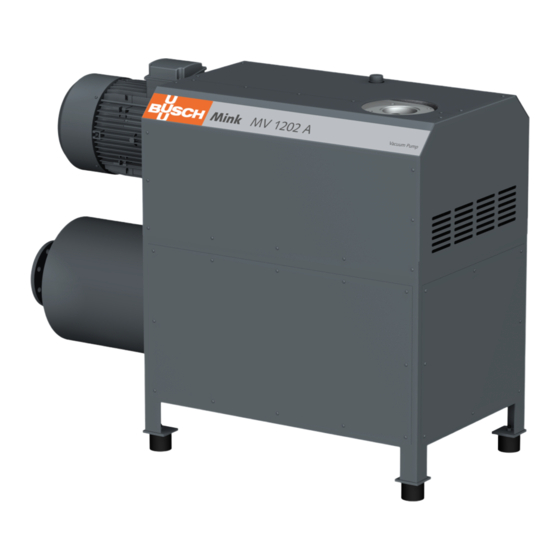

All manuals and user guides at all-guides.com 2 | Product Description Product Description Suction connection Oil drain plug Discharge connection Motor terminal box Oil fill plug (=Venting valve) Cooling air inlet Oil sight glass Cooling air outlet NOTE Technical term. In this instruction manual, we consider that the term ‘machine’...
Conveying of other media leads to an increased thermal and/or mechanical load on the machine and is permissible only after a consultation with Busch. The machine is intended for the placement in a non-potentially explosive environment. The machine is suitable for continuous operation.
All manuals and user guides at all-guides.com 4 | Storage • Check the machine for transport damage. In case of the machine being secured to a base plate: • Remove the fixations. WARNING Lifting the machine using the motor eye bolt. Risk of severe injury! •...
In case of very long connection lines it is advisable to use larger line sizes in order to avoid a loss of efficiency. Seek advice from your Busch representative. 5.2.1 Suction Connection NOTICE Intruding foreign objects or liquids.
All manuals and user guides at all-guides.com 5 | Installation For oil type and oil capacity see Technical Data [} 18] and Oil [} 18]. Check oil level 5.4 Electrical Connection DANGER Live wires. Risk of electrical shock. • Electrical installation work must only be executed by qualified personnel. •...
Page 9
All manuals and user guides at all-guides.com Installation | 5 Delta connection (low voltage): Star connection (high voltage): Double star connection, multi-voltage Star connection, multi-voltage motor motor with 9 pins (low voltage): with 9 pins (high voltage): Double star connection, multi-voltage Star connection, multi-voltage motor motor with 12 pins (low voltage): with 12 pins (high voltage):...
6.1 Conveying Condensable Vapours Water vapour within the gas flow is tolerated within certain limits. The conveyance of other vapours shall be agreed upon with Busch. In order to use the machine for the conveyance of condensable vapours, the machine must be equipped with a corrosion protection coating (Aqua version) and a drain cock in the silencer.
Every 20000 hours • Change the oil. The change interval of 20000 operating hours is valid for Busch approved oils only. The change interval de- pends very much on the operating conditions. Border- line operation may reduce the change interval down to approximately 5000 operating hours.
All manuals and user guides at all-guides.com 7 | Maintenance The oil level should stay constant over the lifetime of the oil. If the level does fall, the gear is leaky and the machine requires repair. • Fill up if necessary, see Oil Filling [} 7]. 7.3 Cleaning from Dust and Dirt 4 mm hex key Clean the ventilation grilles...
All manuals and user guides at all-guides.com Maintenance | 7 7.4 Oil Change Drain pan Cleaning cloth The oil level should stay constant over the lifetime of the oil. If the level does fall, the gear is leaky and the machine requires repair. Check oil level 0870159870_MV1202A_A0001_IM_en 13 / 20...
• Decontaminate the machine as good as possible and state the contamination status in a ‘Declaration of Contamination’. Busch will only accept machines that come with a complete filled in and legally binding signed ‘Declaration of Contamination’. (Form downloadable from www.buschvacuum.com) Decommissioning •...
Use of non-Busch genuine spare parts. Risk of premature failure! Loss of efficiency! • The exclusive use of Busch genuine spare parts and consumables is recommended for the proper function of the machine and for granting of warranty. Spare part Description Part no.
(VRE) is misadjusted or de- valve (VRE) fective. The inlet filter cartridge (op- • Replace the inlet filter tional) is partially clogged. cartridge. Internal parts are worn or • Repair the machine (con- damaged. tact Busch). 16 / 20 0870159870_MV1202A_A0001_IM_en...
Page 17
(CPL). Oil level too low. • Top up oil. Defective bearings. • Repair the machine (con- tact Busch). The machine runs too hot. Insufficient cooling. • Remove dust and dirt from the machine. Ambient temperature too • Observe the permitted high.
This Declaration of Conformity and the CE-mark affixed to the nameplate are valid for the machine within the Busch scope of delivery. This Declaration of Conformity is issued under the sole responsibility of the manufacturer. When this machine is integrated into superordinate machinery the manufacturer of the superordinate machinery (this may be the operating company) must conduct the conformity assessment process for the superordinate ma- chine or plant, issue the Declaration of Conformity for it and affix the CE-mark.
