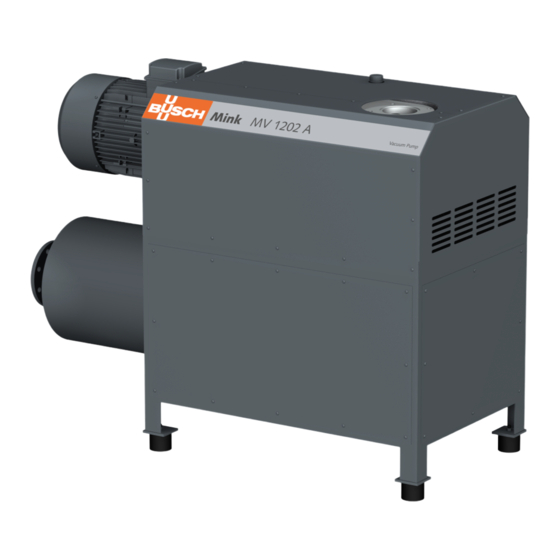

BUSCH MINK MV 1202 A Instruction Manual
  1. Manuals
  2. Brands
  3. BUSCH Manuals
  4. Water Pump
  5. Mink MV 1202 A
  6. Instruction manual

BUSCH MINK MV 1202 A Instruction Manual

Claw vacuum pumps
Hide thumbs Also See for MINK MV 1202 A:
Table of Contents

Advertisement

Quick Links

Download this manual

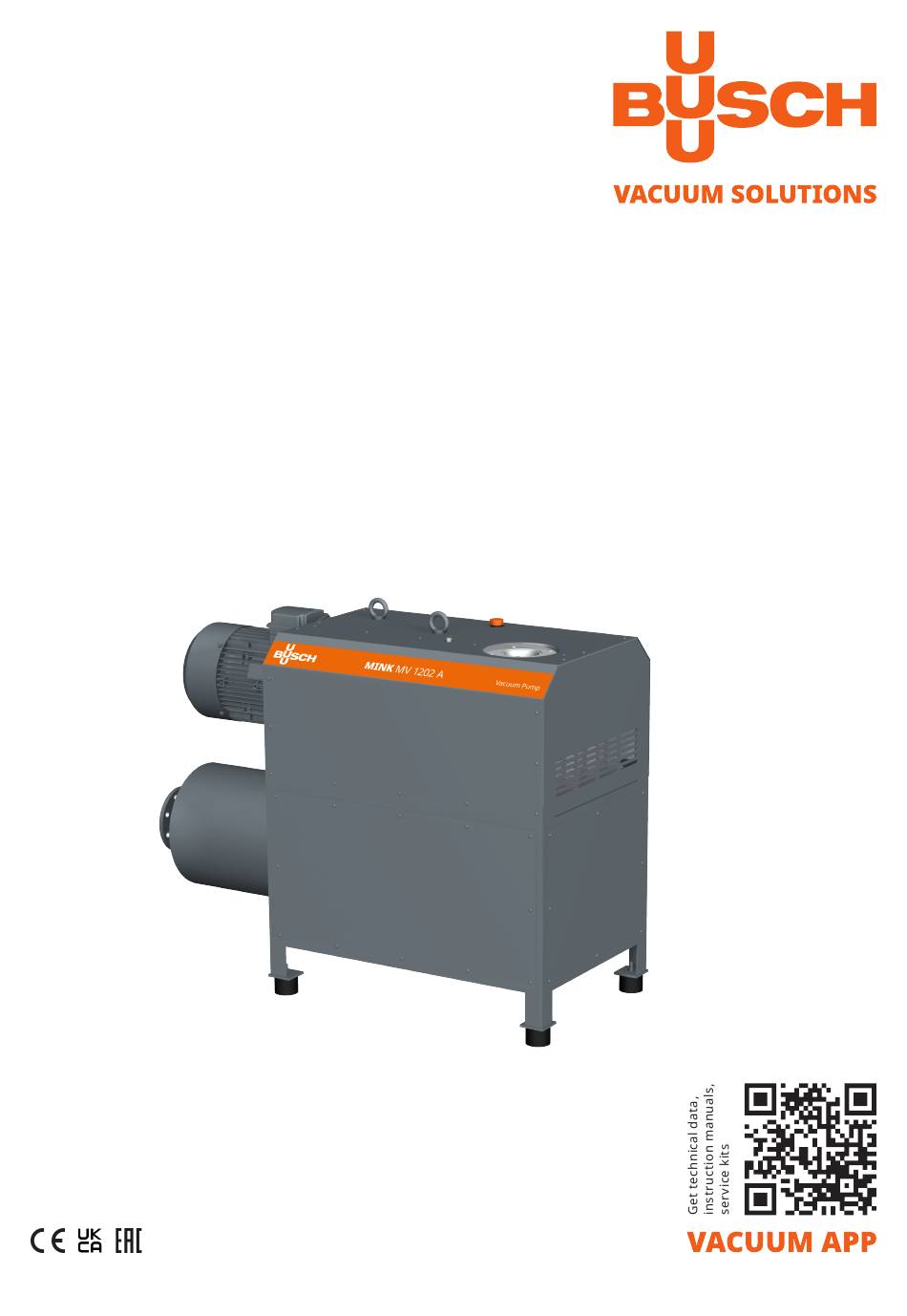

Instruction Manual
MINK
Claw Vacuum Pumps
MV 1202 A
0870159870/A0003_en / Original instructions / Modifications reserved
22/06/2021

Advertisement

Table of Contents
loading

Related Manuals for BUSCH MINK MV 1202 A

Summary of Contents for BUSCH MINK MV 1202 A

  • Page 1 Instruction Manual MINK Claw Vacuum Pumps MV 1202 A 0870159870/A0003_en / Original instructions / Modifications reserved 22/06/2021...

  • Page 2: Table Of Contents

    Table of Contents Table of Contents 1 Safety ............................3 2 Product Description.......................4 2.1 Operating Principle......................5 2.2 Application........................5 2.3 Design Options........................ 5 2.3.1 Gas Tight Version....................5 2.3.2 Aqua Version ......................6 2.4 Start Controls ........................6 2.5 Optional Accessories ...................... 7 2.5.1 Inlet Filter......................

  • Page 3: Safety

    Safety Prior to handling the machine, this instruction manual should be read and understood. If anything needs to be clarified, please contact your Busch representative. Read this manual carefully before use and keep for future reference. This instruction manual remains valid as long as the customer does not change any- thing on the product.

  • Page 4: Product Description

    2 | Product Description Product Description EB EB PRL1* PRL2* Suction connection Oil drain plug Discharge connection Motor terminal box Oil fill plug (=Venting valve) Cooling air inlet Oil sight glass Cooling air outlet PRL1 Pressure relief line (IN) PRL2 Pressure relief line (OUT) *Gas tight version only NOTE...

  • Page 5: Operating Principle

    Conveying of other media leads to an increased thermal and/or mechanical load on the machine and is permissible only after a consultation with Busch. The machine is intended for the placement in a non-potentially explosive environment. The machine is not capable of maintaining ultimate pressure.

  • Page 6: Aqua Version

    2 | Product Description 2.3.1 Gas Tight Version WARNING Media potentially dangerous. Risk of poisoning! Risk of infection! • Wear appropriate personal protective equipment in case of high concentration of the medium in the ambient atmosphere of the machine. The gas tight version is a design option for applications where the process gas re- mains in the machine and does not escape to the environment.

  • Page 7: Optional Accessories

    Transport | 3 2.5 Optional Accessories 2.5.1 Inlet Filter The inlet filter protects the machine against dust and other solids in the process gas. The inlet filter is available with a paper or polyester cartridge. 2.5.2 Vacuum Relief Valve The ultimate pressure is limited by a vacuum relief valve. The vacuum relief valve is adjusted ex-works to the minimum permitted ultimate pressure (see nameplate).

  • Page 8: Storage

    ~1 m ~1 m ~1 m Other values may apply after Busch approval • Make sure that the environment of the machine is not potentially explosive. • Make sure that the ambient conditions comply with the Technical Data [► 24]. • Make sure that the environmental conditions comply with the protection class of the motor and the electrical instruments.

  • Page 9: Connecting Lines / Pipes

    • Make sure that all provided covers, guards, hoods, etc. are mounted. If the machine is installed at an altitude greater than 1000 meters above sea level: • Contact your Busch representative, the motor should be derated or the ambient temperature limited.

  • Page 10: Filling Oil

    Risk of premature failure! Loss of efficiency! • Only use an oil type which has previously been approved and recommended by Busch. For oil type and oil capacity see Technical Data [► 24] and Oil [► 24]. Check oil level The oil level should stay constant over the lifetime of the oil. If the level does fall, this indicates a leak and the machine requires repair.

  • Page 11: Electrical Connection

    • Busch recommends installing a K-curve circuit breaker. • Make sure that the motor of the machine will not be affected by electric or electro- magnetic disturbance from the mains; if necessary seek advice from Busch. • Connect the protective earth conductor.
  • Page 12 5 | Installation 5.4.1 Wiring Diagram Three-Phase Motor NOTICE Incorrect direction of rotation. Risk of damage to the machine! • Operation in the wrong direction of rotation can destroy the machine in a short time! Prior to start-up, ensure that the machine is operated in the right direction. •...

  • Page 13: Commissioning

    The Aqua version is a design option for conveying condensable vapours (water). Water vapour within the gas flow is tolerated within certain limits. The conveyance of other vapours shall be agreed upon with Busch. If condensable vapours are to be conveyed: Before process: •...

  • Page 14: Maintenance

    Risk of injuries! Risk of premature failure and loss of efficiency! • Respect the maintenance intervals or ask your Busch representative for service. • Shut down the machine and lock against inadvertent start up. • Vent the connected lines to atmospheric pressure.

  • Page 15: Maintenance Schedule

    Every 20000 hours • Change the oil. The change interval of 20000 operating hours is valid for Busch approved oils only. The change interval de- pends very much on the operating conditions. Border- line operation may reduce the change interval down to approximately 5000 operating hours.

  • Page 16: Cleaning From Dust And Dirt

    7 | Maintenance 7.3 Cleaning from Dust and Dirt 4 mm hex key Clean the ventilation grilles and cooling fins 16 / 28 0870159870_MV1202A_A0003_IM_en_MD...

  • Page 17: Oil Change

    Use of an inappropriate oil. Risk of premature failure! Loss of efficiency! • Only use an oil type which has previously been approved and recommended by Busch. Drain pan Cleaning cloth For oil type and oil capacity see Technical Data [► 24] and Oil [► 24].

  • Page 18: Pressure Relief Lines Maintenance (Gas Tight Version Only)

    Risk of damage to the machine! • Adjust the pressurised air to 0.2 bar(g) by means of a pressure regulator. In case of clogged pressure relief lines: • Remove the clogging or have the machine repaired (contact Busch). 18 / 28 0870159870_MV1202A_A0003_IM_en_MD...
  • Page 19 Maintenance | 7 4 mm hex key Remove the cover 4 mm hex key Remove PRL1 line Unscrew nuts Remove Remove nut Unscrew nut Blow into the pipe and removed lines PRL1 and PRL2 with compressed air max. 0.2 bar (overpressure) Remove PRL2 line 0870159870_MV1202A_A0003_IM_en_MD 19 / 28...

  • Page 20: Overhaul

    • Decontaminate the machine as much as possible and state the contamination status in a ‘Declaration of Contamination’. Busch will only accept machines that come with a completely filled in and legally bind- ing signed ‘Declaration of Contamination’ (form downloadable from www.buschvacuum.com).
  • Page 21 Includes appropriate seal ring 0415 134 870 Seal ring For oil drain plug 0482 137 352 Inlet screen 0534 159 449 If other parts are required: • Contact your Busch representative for the detailed spare parts list. 0870159870_MV1202A_A0003_IM_en_MD 21 / 28...

  • Page 22: Troubleshooting

    • Replace the inlet filter tional) is partially clogged. cartridge. Internal parts are worn or • Repair the machine (con- damaged. tact Busch). The machine runs very nois- Worn coupling (CPL). • Replace the coupling (CPL). ily. Oil level too low.
  • Page 23 Technical Data [► 24]. Oil level too low. • Top up oil. For the solution of problems not mentioned in the troubleshooting chart contact your Busch representative. 0870159870_MV1202A_A0003_IM_en_MD 23 / 28...

  • Page 24: Technical Data

    Inlet gas temperature range °C 0 … 40* Ambient pressure Atmospheric pressure Oil capacity Weight approx. * In case of higher or lower temperatures, please consult your Busch representative. 13 Oil VS 220 ISO-VG Part number 1 L packaging 0831217852 Part number 5 L packaging...

  • Page 25: Eu Declaration Of Conformity

    14 EU Declaration of Conformity This Declaration of Conformity and the CE-mark affixed to the nameplate are valid for the machine within the Busch scope of delivery. This Declaration of Conformity is issued under the sole responsibility of the manufac- turer.
  • Page 26 Note...
  • Page 27 Note...
  • Page 28 Busch Vacuum Solutions We shape vacuum for you. Argentina Denmark Malaysia South Africa info@busch.com.ar info@busch.dk busch@busch.com.my info@busch.co.za Australia Finland Mexico Spain sales@busch.com.au info@busch.fi info@busch.com.mx contacto@buschiberica.es Austria France Netherlands Sweden busch@busch.at busch@busch.fr info@busch.nl info@busch.se Bangladesh Germany New Zealand Switzerland sales@busch.com.bd info@busch.de sales@busch.co.nz...
