Johnson Controls TCSC Series Installation Operation & Maintenance page 22

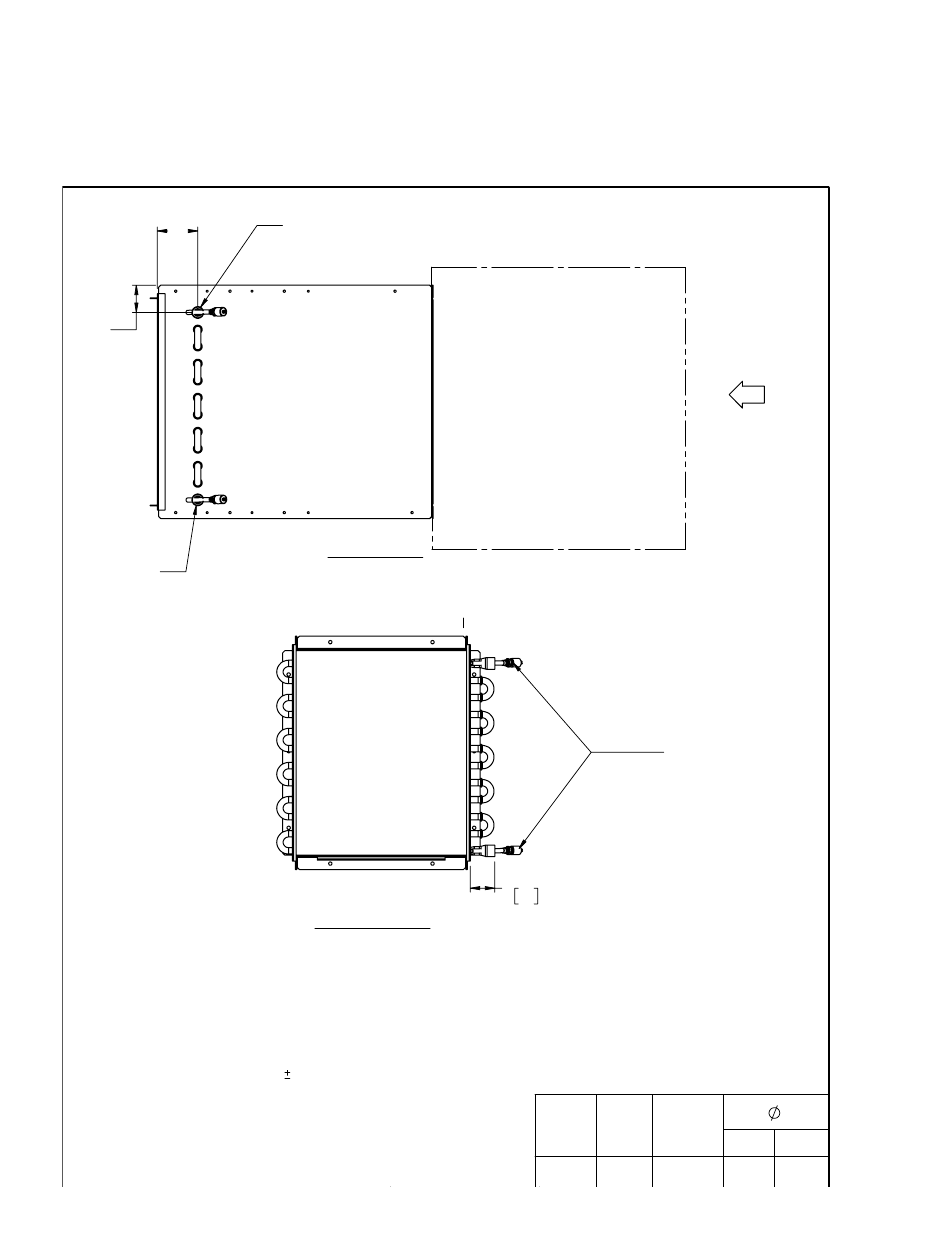

3/8" Hot Water Coil Connections, Single Circuit
B
A
SUPPLY (IN)
NOTES:
1. All dimensions are in inches [millimeters]
2. All dimensions may vary in 1/2 [13mm].
Metric values are soft conversion.
3. All drawings are subject to change without notice.
4. Connection Size: 5/8 ODM (1/2" NOM.)
5. This sheet applies to single circuit coils only.
For multiple circuit coils refer sheet no 1.
22
MODEL TCSC SIZE 07
RETURN (OUT)
SIDE VIEW
LEFT HAND SHOWN
RIGHT HAND OPPOSITE
FRONT VIEW
LEFT HAND SHOWN
RIGHT HAND OPPOSITE
SUBMITTAL DRAWING
ALL DRAWINGS ARE SUBJECT TO CHANGE
WITHOUT PRIOR NOTICE
DO NOT SCALE DRAWING
FORM 130.13-NOM8 (1021)
(OPTIONAL)
1 3/8"
36
SINGLE CIRCUIT COILS ONLY
Unit Coil
No. of
Size Rows
Circuits
7
1 1
TITLE:
MODEL TCSB, TCSQ & TCSC
HOT WATER, 3/8" DIA COIL CONNECTIONS
DATE SHEET
AIR
(3/8" Coil)
A B
1-3/4" 2-3/8"
[46] [60]
JOHNSON CONTROLS
DRAWING NO REV
