Johnson Controls TCSC Series Installation Operation & Maintenance page 14

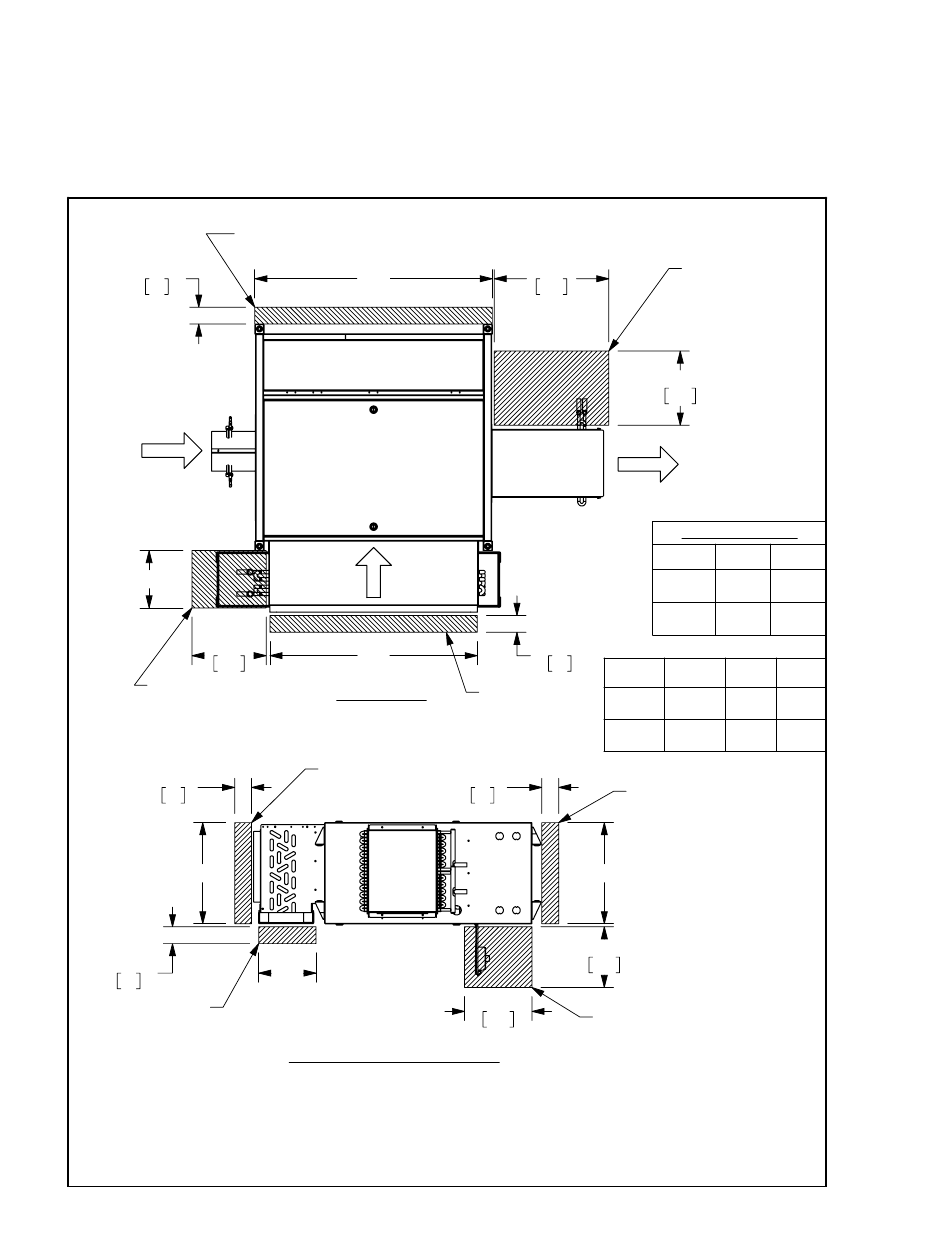

MODEL TCSC SIZES 07-23 WITH HOT WATER COIL
Drawings not for installation purposes. Refer to unit and size-specific
ADDITIONAL ELECTRICAL
ENCLOSURE SIDE ACCESS
2-1/2"
64
PRIMARY
AIR
FLOW
"A"
11"
279
OPTIONAL
VALVE PACKAGE
ACCESS
2-1/2"
64
"D"
2-1/2"
64
DRIP TRAY
REMOVAL
BOTTOM ACCESS
NOTES:
1. All dimensions in Inches [millimeters]. All dimensions
2. Left Hand unit shown, Right Hand unit opposite.
3. Standard Electrical Enclosure is integrated into unit side. Includes (4) knockouts on (2) sides. Provide
sufficient clearance to access electrical controls and comply with applicable codes and ordinances.
4. NEC clearance can be from the bottom or side of the unit. When using side access, 9" of bottom
clearance recommended to access optional electrical disconnect and EC motor control.
14
Service And Clearance Requirements
submittal drawings for installation.
"C"
INDUCED
AIR FLOW
"B"
TOP VIEW
OPTIONAL FILTER
REMOVAL
SIDE ACCESS
"A"
DISCHARGE END VIEW
±
1/4" [6mm].
SUBMITTAL DRAWING
ALL DRAWINGS ARE SUBJECT TO CHANGE
WITHOUT PRIOR NOTICE
DO NOT SCALE DRAWING
17"
432
AIR
FLOW
2-1/2"
64
UNIT
SIZE
OPTIONAL FILTER
07&10
REMOVAL
15,20,23 40-1/2"
SIDE ACCESS
2-1/2"
ADDITIONAL
64
ELECTRICAL
ENCLOSURE
SIDE ACCESS
"E"
9"
229
10"
254 ELECTRICAL ENCLOSURE
BOTTOM ACCESS
DOOR (OPEN POSITION)
TITLE:
MODEL TCSC SIZES 07-23, HOT WATER COIL,
EXTERNAL SPACE REQUIREMENTS
DATE SHEET
FORM 130.13-NOM8 (1021)
OPTIONAL VALVE
PACKAGE
BOTTOM ACCESS
11"
279
COOLING COIL
"A" "B"
# ROWS
8-1/2" 31"
2 - 4
[216] [787]
13" 36"
6 - 8
[330] [914]
"C" "D" "E"
35-1/2" 15" 15"
[902] [381] [381]
18" 18"
[1029] [457] [457]
JOHNSON CONTROLS
DRAWING NO REV
