Chilled Water Coil Connections - Johnson Controls TCSC Series Installation Operation & Maintenance

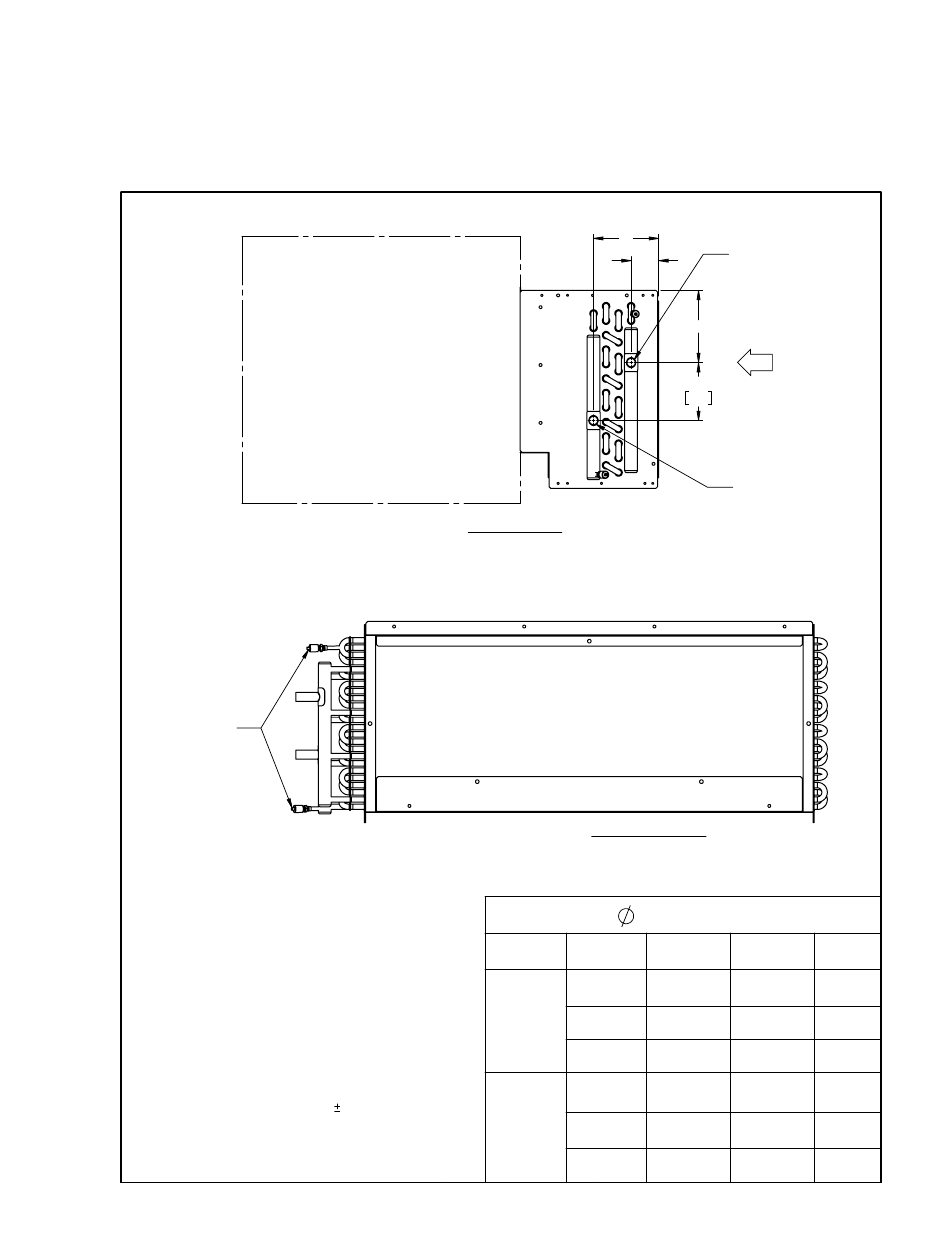

3/8" Chilled Water Coil Connections, 2-4 Rows
(OPTIONAL)
NOTES:
1. All dimensions are in inches [millimeters]
2. All dimensions may vary in 1/2 [13mm].
Metric values are soft conversion.
3. All drawings are subject to change without notice.
4. Connection Size: 5/8 ODM (1/2" NOM).
JOHNSON CONTROLS
THIS DRAWING CONTAINS PROPRIETARY DATA. UNAUTHORIZED DISCLOSURE,
MODEL TCSC SIZES 07-23
SIDE VIEW
LEFT HAND SHOWN
RIGHT HAND OPPOSITE
Unit Type Coil Rows
7/10
12/15/20/23
SUBMITTAL DRAWING SUBMITTAL DRAWING
ALL DRAWINGS ARE SUBJECT TO CHANGE ALL DRAWINGS ARE SUBJECT TO CHANGE
WITHOUT PRIOR NOTICE WITHOUT PRIOR NOTICE
DO NOT SCALE DRAWING DO NOT SCALE DRAWING
DIMENSIONS ARE IN INCH [MM] FORMAT DIMENSIONS ARE IN INCH [MM] FORMAT
B
RETURN(OUT)
C
A
4"
102
SUPPLY(IN)
FRONT VIEW
LEFT HAND SHOWN
RIGHT HAND OPPOSITE
3/8'' COILS
A
5"
2
[127]
5"
3
[127]
5"
4
[127]
6"
2
[152]
6"
3
[152]
6"
4
[152]
TITLE: TITLE:
MODEL TCSC, CHILLED WATER, 3/8"
DIA COIL CONNECTIONS 2 - 4 ROWS
DATE DATE SHEET SHEET
FORM 130.13-NOM8 (1021)
AIR
B C
3 5/8" 2 3/4"
[92] [70]
3 5/8" 1 7/8"
[92] [48]
4 1/2" 1 7/8"
[114] [48]
3 5/8" 2 3/4"
[92] [70]
3 5/8" 1 7/8"
[92] [48]
4 1/2" 1 7/8"
[114] [48]
17
DRAWING NO DRAWING NO REV REV
