Johnson Controls TCSC Series Installation Operation & Maintenance page 13

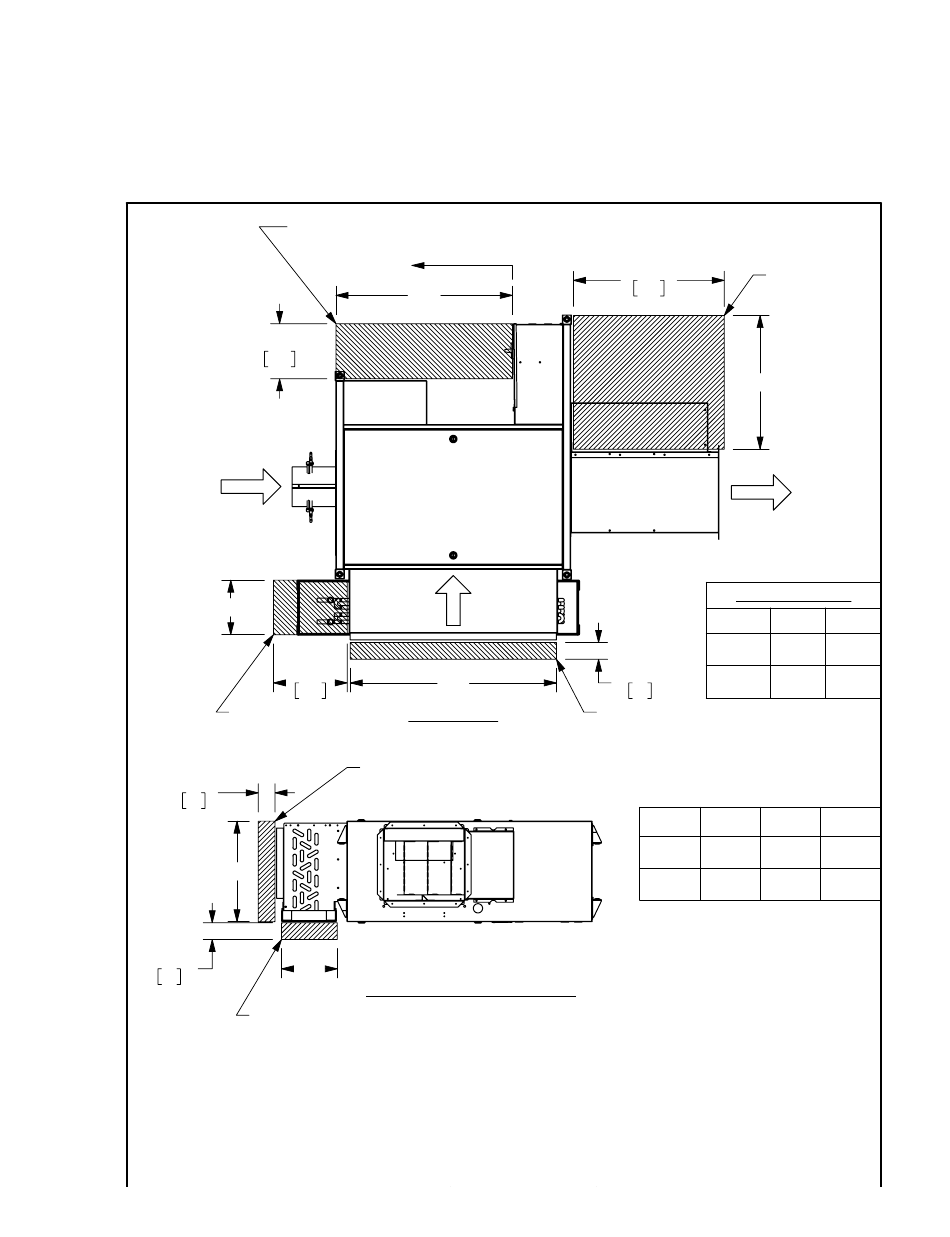

MODEL TCSC SIZES 07-23 WITH ELECTRIC HEAT / 90° ENCLOSURE
8 1/2"
216
PRIMARY
AIR
FLOW
"A"
OPTIONAL
VALVE PACKAGE
ACCESS
2-1/2"
64
"D"
2-1/2"
64
DRIP TRAY
REMOVAL
BOTTOM ACCESS
NOTES:
1. All dimensions in Inches [millimeters]. All dimensions
2. Left Hand unit shown, Right Hand unit opposite.
3. 90 degree Electrical Enclosure is perpendicular to the unit side. Includes (4) knockouts on both side and bottom.
Provide sufficient clearance to access electrical controls and comply with applicable codes and ordinances.
4. Maintain clearance per NEC (in direction of arrow).
JOHNSON CONTROLS
Service And Clearance Requirements
Drawings not for installation purposes. Refer to unit and size-specific
submittal drawings for installation.
ELECTRICAL ENCLOSURE
SIDE ACCESS
SEE NOTE 4
"C"
INDUCED
AIR
11"
"B"
279
TOP VIEW
OPTIONAL FILTER
REMOVAL
SIDE ACCESS
"A"
DISCHARGE END VIEW
±
ALL DRAWINGS ARE SUBJECT TO CHANGE
DO NOT SCALE DRAWING
22-1/2"
572
FLOW
2-1/2"
64
OPTIONAL FILTER
REMOVAL
SIDE ACCESS
15,20,23 31-1/2"
1/4" [6mm].
TITLE:
SUBMITTAL DRAWING
MODEL TCSC SIZES 07-23, ELECTRIC HEAT,
EXTERNAL SPACE REQUIREMENTS
WITHOUT PRIOR NOTICE
DATE
FORM 130.13-NOM8 (1021)
ELECTRIC HEAT
SIDE ACCESS
"E"
AIR
FLOW
COOLING COIL
"A"
# ROWS
8-1/2"
2 - 4
[216]
13"
6 - 8
[330]
UNIT
"C" "D"
SIZE
26-1/2" 15"
07&10
[673] [381]
18"
[800] [457]
SHEET DRAWING NO
"B"
31"
[787]
36"
[914]
"E"
14"
[356]
17"
[432]
13
REV
