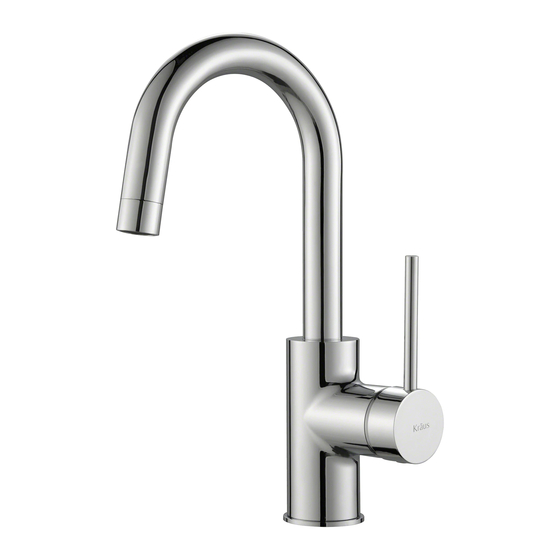

- Page 1 INSTALLATION MANUAL Oletto Single Lever Bar/Prep Faucet KPF-2600 www.kraususa.com Toll Free: 1.800.775.0703 © 2019 Kraus USA Inc. REV. January 4, 2021...
- Page 2 Congratulations on the purchase of your new Kraus plumbing fixture! Please keep the box and packaging materials until your product is completely installed. If you have any questions, require technical assistance or have any problems with your product: STOP DO NOT RETURN TO STORE Please contact our Customer Service Team 1-800-775-0703 / customerservice@kraususa.com...
-
Page 3: Prior To Installation
Prior to Installation: Make sure you have all necessary parts by checking the diagram and · parts list. If any part is missing or damaged, please contact Kraus Customer Service at 800-775-0703 for a replacement. · Turn off the hot and cold water supply at the angle stops and turn on the old faucet to release any built up pressure. - Page 4 Diagram and Parts List Aerator B. Faucet Body C. Base D. Hot & Cold Waterlines E. Hex Wrench Set E1. 2.5mm E2. 4mm F. Base Ring...
-
Page 5: Faucet Dimensions
Faucet Dimensions 7" (178mm) 4 1/8" (105mm) 5 1/2" (141mm) 2-9/16-24UNEF-2B Installer Tip: Shut off main water supply before installing new faucet. -
Page 6: Step 2: Install Faucet
Step 1: Install base Insert base (C) into base ring (F) on sink or countertop with “FR↑NT” facing forward. Tighten screws on base (C) with 4mm hex wrench (E) until base is secure on base ring (F) on sink or countertop. Half Moon Locking Nuts Installer Tip: Rotate the two... - Page 7 Step 3: Secure faucet Secure faucet body (B) by tightening the set screw with 2.5mm hex wrench (E). Step 4: Connect waterlines Thread the nut (1) on the supply line onto the outlet of the water supply valve (2) and tighten with wrench.
-
Page 8: Troubleshooting
Step 5. Flush faucet Remove aerator (A). Turn faucet on for 1 minute to flush any debris. Reconnect aerator (A). Troubleshooting If you have followed the instructions carefully and your faucet still does not work properly, take the following corrective steps: PROBLEM CAUSE ACTION... -
Page 9: Replacement Parts
Replacement Parts Replacement Parts List Finish/Color Part # 1. Handle Assembly CH, SFS* KP07100 KP07101 2. Cartridge Cover CH, SFS* KP07102 3. Locking Nut KP07047 4. Cartridge KP07103 5. Seal Kit KP07104 6. Set Screw CH, SFS* KP07105 7. Aerator Assembly CH, SFS* KP07108 8. - Page 10 Any product reported to the authorized dealer or to Kraus as being defective within the warranty period will be repaired or replaced with a product of equal value at the option of Kraus. This warranty extends to the original owner or end-user, and is not transferable to a subsequent owner.
- Page 11 This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. KRAUS USA has the right to change, modify, and/or update the warranty policy at any time. For the latest, most up to date comprehensive warranty, go to www.kraususa.com/warranty...
- Page 12 IMPORTANT Register Your Kraus Product Activate Your Warranty Access Premium Customer Support Get Product Information REGISTER TODAY http://www.kraususa.com/registration www.kraususa.com...
