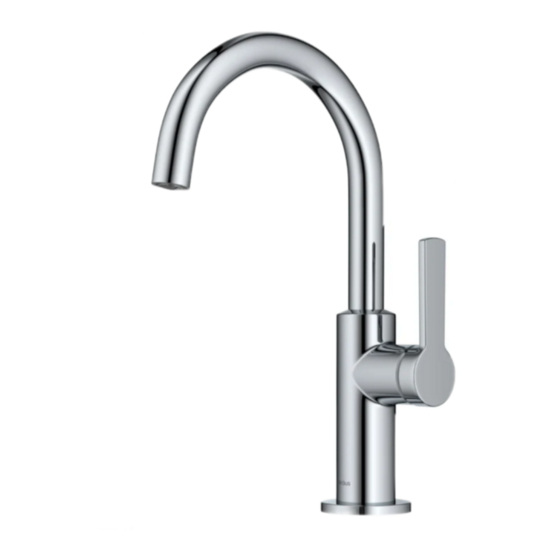

- Page 1 INSTALLATION MANUAL Oletto™ Single Handle Kitchen Bar Faucet KPF-2822 www.kraususa.com I Toll Free: 1.800.775.0703 I © 2023 Kraus USA Plumbing LLC I Rev. March 29, 2023...
- Page 2 Congratulations on the purchase of your new Kraus plumbing fixture! Please keep the box and packaging materials until your product is completely installed. If you have any questions, require technical assistance or have any problems with your product: DO NOT RETURN TO STORE...
-
Page 3: Prior To Installation
Make sure you have all necessary parts by checking the diagram and · parts list. If any part is missing or damaged, please contact Kraus Customer Service at 800-775-0703 for a replacement. Read all instructions and safety warnings and ensure you have all tools, ·... - Page 4 Diagram and Parts List F. Mounting Nut A. Faucet Body B. Aerator G. Screws C. Flange H. Hex Wrench D. Plastic Washer E. Metal Washer...
-
Page 5: Faucet Dimensions
Faucet Dimensions 8 1/8" [204.9mm] 6 1/2" 3 1/2" [165.1mm] [90.1mm] Ø2 1/4" [57.0mm] 3/8” compression Installer Tip:... -
Page 6: Step 2: Installing The Faucet
Step 1. Remove mounting hardware Shut off the water supply. Remove the old faucet. Clean the mounting surface. Remove the mounting nut & screws (F&G), metal washer (E) and plastic washer (D) from the faucet (A). F&G Step 2: Installing the faucet Place the faucet (A) through the hole in the sink or countertop. - Page 7 Step 3: Connect waterlines to main valve Attach waterlines to angle stops and tighten until snug. Turn on angle stops and check for leaks (DO NOT TURN FAUCET ON). NOTE: Please make sure filter washers are installed before connecting to the main valve.
-
Page 8: Replacement Parts
Replacement Parts Replacement Parts List Finish / Color Part # 1. Aerator KP27199 2. Washer KP27201 3. Block KP27030 4. O-ring KP27029 5. Screw KP27223 6. Cover Button GR, BL* KP27222 7. Cartridge KP27069 8. Bonnet Nut KP27202 SFS, MB, BB,CH 9. -
Page 9: Troubleshooting
Troubleshooting If you have followed the instructions carefully and your faucet still does not work properly, take the following corrective steps: PROBLEM CAUSE ACTION Leakage under the handle. Bonnet nut (8) has Remove the cover button (12). Loosen the screw (11) with the hex wrench (18). come loose. - Page 10 Kraus warrants the structure and finish of the Faucet to be free from defects in material and workmanship under normal usage for as long as the original purchaser resides in the residence in which the Faucet was first installed.
- Page 11 TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS WARRANTY DOES NOT COVER, AND KRAUS USA PLUMBING, LLC SHALL NOT BE LIABLE FOR, ANY SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING LABOR CHARGES TO REPAIR, REPLACE, INSTALL OR REMOVE THIS PRODUCT), WHETHER ARISING OUT OF BREACH OF ANY EXPRESS OR IMPLIED WARRANTY, BREACH OF CONTRACT, TORT, OR OTHERWISE.
- Page 12 IMPORTANT Register Your Kraus Product Activate Your Warranty Access Premium Customer Support Get Product Information REGISTER TODAY http://www.kraususa.com/registration www.kraususa.com...
