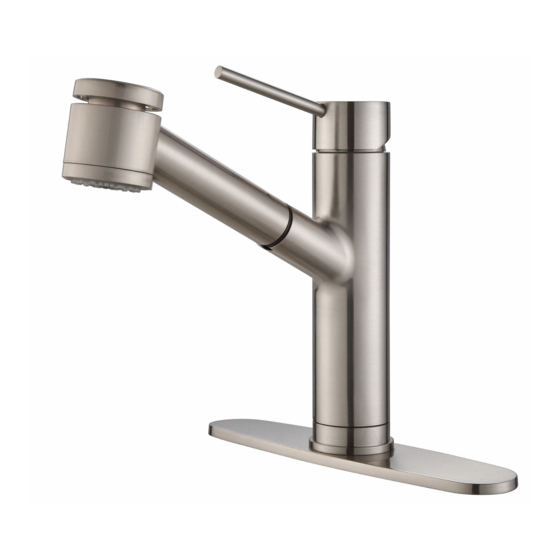

- Page 1 I N S TA L L AT I O N MA N UA L Oletto Single Lever Pull Out ™ Kitchen Faucet KPF-2610 www.kraususa.com I toll free: 1.800.775.0703 I © 2014-2015 Kraus USA Inc. I REV. August 16, 2016...
- Page 2 Thank you for your purchase We would like to take this opportunity to thank you for choosing Kraus. We hope that you are completely satisfied with your purchase, and enjoy it for years to come. If you have any questions, or require technical assistance, please contact us at 800.775.0703 and one of our representatives will be happy to help.
-
Page 3: Prior To Installation
8 5/16” • (257mm) (21mm) Make sure you have all necessary parts by checking the diagram and parts list. If any part is missing or damaged, please contact Kraus Customer Service at 800- 1 15/16” ∅ 775-0703 for a replacement 50mm) 1 3/8”... - Page 4 Diagram and Parts List Tools You Wil Adjustable w Silicone Se A. Spray Head G. Hot & Cold Waterlines B. Faucet Body H. Weight C. Deck & Putty Plate I. Quick Connect D. Base J. Hex Wrench Set E. Spray Hose J1.
-
Page 5: Faucet Dimensions
Faucet Dimensions 10-3/8” 10-1/4” (262mm) 8-1/8" (258mm) (207mm) º Ø2" (Ø50mm) 2-1/2" (63mm) Chec 10-3/8” (262mm) 10-1/4” (258mm) 8-1/8" (207mm) º Ø2" (Ø50mm) 9/16-24UNEF (3/8” Compression) Check Value... - Page 6 Step 1A: Install base without deck & putty plate Insert base (D) into sink or countertop with “FR↑NT” facing forward. Tighten screws on base (D) with 4mm hex wrench (J) until base is secure on sink or countertop Installer Tip: Rotate the two half-moon shaped locking nuts inward before inserting base (D) into sink or...
- Page 7 1/16” (1mm) min. 1” (25.4 mm) max. Ø 1-3/8” (35 mm) min. Ø 1-1/2” (38 mm) max. Step 2: Install faucet Half Moon Loc Insert spray hose (E) into small hole of base (D). Insert hot & cold waterlines (G) and supply hose (F), one by one, in large hole of base Installer Tip: Please...
- Page 8 Half Moon Loc Half Moon Locking Nuts Step 4: Connect waterlines to main valve Thread hot & cold waterlines (G) onto angle stops. Tighten with adjustable wrench until snug. Turn on the angle stops and check for leaks (DO NOT TURN FAUCET ON) Rubber Caps Cold Installer Tip: Use two...
- Page 9 Half Moon Locking Nuts Step6: Install weight Attach weight (H) on the designated mark on the spray hose (E) Cold Designated Mark Step 7: Flush faucet Remove spray head (A). Hold tip of spray hose (E). Turn faucet on for 1 minute to fl ush any debris. Reconnect spray head (A)
-
Page 10: Replacement Part List
Replacement Part List 1. Metal Assembly Handle 2. Cartridge Cover 3. Locking Nut 4. Cartridge 5. Set Screw 6. Base 7. Cover & Putty Plate 8. Spray Head 9. Quick Connect 10. Spray Hose 11. Weight 12. Hex Wrench 2.5mm 13. -
Page 11: Troubleshooting
Trouble - Shooting If you have followed the instructions carefully and your faucet still does not work properly, take the following corrective steps: P R O B L E M C A U S E A C T I O N Leakage under the Locking nut (3) has Unscrew joystick from... - Page 12 Trouble - Shooting If you have followed the instructions carefully and your faucet still does not work properly, take the following corrective steps: P R O B L E M C A U S E A C T I O N Hose does not retract Weight (11) may be Readjust weight (11)
-
Page 13: Care And Maintenance
Do not clean with soaps, acid, polish, abrasives, or harsh cleaners Do not use cloth with a coarse surface Unscrew the aerator and clean when necessary *This installation manual is subject to change without further notice. Download the Kraus Care & Maintenance Guide at: http://www.kraususa.com/maintenance... - Page 14 Kraus USA, Inc. 12 Harbor Park Drive Port Washington, NY 11050 Toll-free 800-775-0703 Customerservice@kraususa.com If you are a plumbing contractor or trade professional please contact a Kraus Pro Representative at: Kraus USA, Inc. 12 Harbor Park Drive Port Washington, NY 11050 516-801-8955 Proservice@kraususa.com...
- Page 15 www.kraususa.com...
- Page 16 Please take a moment to share your experience. Visit http://www.kraususa.com/review to let us know what you think about your new Kraus product. Contact Us to Learn More 1.800.775.0703 / www.kraususa.com / customerservice@kraususa.com Like & Follow KrausUSA Download the Kraus Care & Maintenance Guide at: http://www.kraususa.com/maintenance www.kraususa.com...
