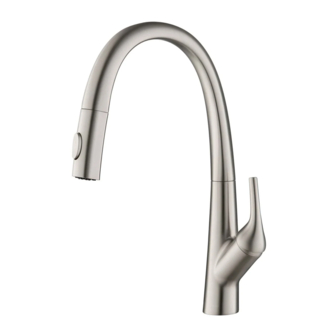

- Page 1 INSTALLATION MANUAL Arqo M Pull Down Kitchen Faucet KPF-2523 www.kraususa.com Toll Free: 1.800.775.0703 © 2018 Kraus USA Inc. REV. August 27, 2019...
- Page 2 Congratulations on the purchase of your new Kraus plumbing fixture! Please keep the box and packaging materials until your product is completely installed. If you have any questions, require technical assistance or have any problems with your product: STOP DO NOT RETURN TO STORE Please contact our Customer Service Team 1-800-775-0703 / customerservice@kraususa.com...
-
Page 3: Prior To Installation
Prior to Installation: · Make sure you have all necessary parts by checking the diagram and parts list. If any part is missing or damaged, please contact Kraus Customer Service at 800-775-0703 for a replacement. · Turn off the hot and cold water supply at the angle stops and turn on the old faucet to release any built up pressure. - Page 4 Diagram and Parts List E3. Mounting Nut Aerator Key Spray Head Faucet Body E4. Mounting Screws Hex Wrench Base O-Ring Spray Hose M. 2.2 GPM Flow Deck Plate Assembly EZ-Connect Restrictor (WHITE) Mounting Hardware EZ-Weight E1. Rubber Washer Supply Hose E2.
- Page 5 Faucet Installation Procedure 11" (280.31mm) 11.9° 8 5/8" (219.16mm) 1 3/8”~1 1/2” Ø 2 1/4" (35~38 mm) (55.93mm) 10 1/2" (280.31mm) Installer Tip: Shut off main water supply before installing new faucet.
- Page 6 Step 1. Remove mounting hardware Shut off the water supply. Remove the old faucet. Clean the mounting surface. Remove mounting hardware (E) from faucet body (B). Step 2A. Install the faucet assembly (with deckplate) Insert the faucet assembly (B) through the hole in the deck plate assembly (D).
- Page 7 Step 2B. Install the faucet assembly (without deckplate) For single-hole installation, deck plate assembly (D) and silicone sealant are NOT required. Step 3. Secure the faucet assembly Insert faucet body (B) into hole on countertop or deck plate assembly (D) with base o-ring (C) attached.
- Page 8 Step 4. Secure the faucet assembly Adjust faucet body (B). Tighten mounting nut (E3) with wrench and mounting screws (E4) with Phillips head screwdriver. Step 5. Attach spray hose and counterweight Connect spray hose (F) to quick connector (G) attached to supply line.
- Page 9 Step 6. Connect waterlines Thread hot & cold waterlines (J) onto angle stops. Tighten with adjustable wrench until snug. Turn on the angle stops and check for leaks. (DO NOT TURN FAUCET ON) Step 7. Flush spray hose Remove spray head (A). Hold tip of spray hose (F).
- Page 10 Step 8. Attach spray head Attach spray head (A) to spray hose (F). Step 9. Check spray head Turn faucet on. Press rocker switch to check if spray head (A) switches modes properly. Press Press...
- Page 11 Please note that doing so will remove the capability of this product to meet specific low-flow standards. Kraus is not liable for any alterations made to the product post-sale, and highly advises that you consult with your local or...
-
Page 12: Replacement Parts
Replacement Parts *Denotes faucet component color options: SFS - Spot Free Stainless Steel MB - Matte Black BL - Black WH - White Replacement Parts List Finish/ Part # Replacement Parts List Finish/ Part # Color Color 1A. Aerator KP26058 10. -
Page 13: Troubleshooting
Trouble-Shooting If you have followed the instructions carefully and your faucet still does not work properly, take the following corrective steps: PROBLEM CAUSE ACTION Leakage under the handle Locking nut has come loose Remove cap. Loosen set screw with a hex wrench. - Page 14 Any product reported to the authorized dealer or to Kraus as being defective within the warranty period will be repaired or replaced with a product of equal value at the option of Kraus. This warranty extends to the original owner or end-user, and is not transferable to a subsequent owner.
- Page 15 This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. KRAUS USA has the right to change, modify, and/or update the warranty policy at any time. For the latest, most up to date comprehensive warranty, go to www.kraususa.com/warranty...
- Page 16 IMPORTANT Register Your Kraus Product Activate Your Warranty Access Premium Customer Support Get Product Information REGISTER TODAY http://www.kraususa.com/registration www.kraususa.com...
