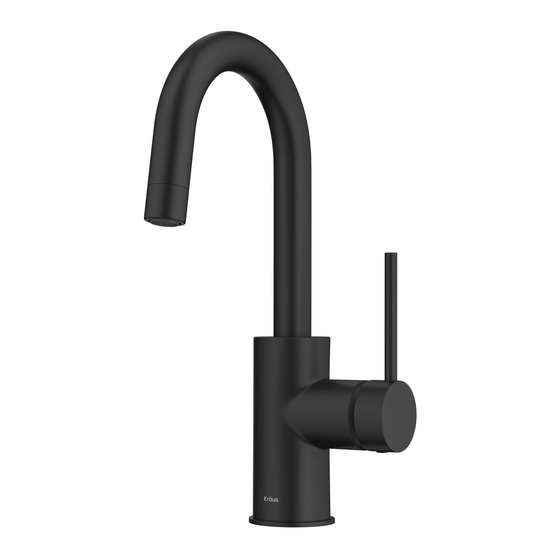

Summary of Contents for Kraus Oletto KPF-2600SFS
- Page 1 INSTALLATION GUIDE Oletto™ Single Handle Kitchen Bar Faucet KPF-2600 www.kraususa.com I Toll Free: 1.800.775.0703 I © 2019 Kraus USA Inc. I REV. DEC 21, 2020...
- Page 2 Congratulations on the purchase of your new Please keep the box and packaging materials until your product is completely installed. If you have any questions, require technical assistance, or have any problems with your product: DO NOT RETURN TO STORE Please contact our Customer Service Team 1-800-775-0703 / customerservice@kraususa.com Have the model number available, and retain a copy of your receipt...
- Page 3 Prior to Installation: • Make sure you have all necessary parts by checking the diagram and parts list. If any part is missing or damaged, please contact Kraus Customer Service at 800-775- 0703 for a replacement • Turn o the hot and cold water lines at the angle stops and turn on the old faucet to release any built-up pressure •...
- Page 4 Diagram and Parts List A. Faucet Body B. Easy Install Assembly C. 6mm Hex Wrench D. 2.5mm Hex Wrench...
- Page 5 Faucet Dimension [178.7mm] 4 1/4'' 5 1/2'' [109.1mm] [140.8mm] [52.0mm] 3/8”-compression Installer Tip:...
- Page 6 Step 1: Installing the easy install assembly Shut o the water supply. Remove the old faucet. Clean the mounting surface. Check for the proper thickness of the sink. Insert the base (a) into sink. NOTE : “Front” on the base (a) must face the front of the sink.
- Page 7 Step 3: Installing the faucet Insert the supply lines (1) through the hole of the base (a). Carefully insert the hoses into the base. Place the faucet assembly (A) onto the base (a) as shown in the above gure. Secure the faucet assembly (A) by tightening the set screw with the provided hex wrench (D, Hex: 2.5 mm).
- Page 8 Step 4: Connect waterlines to main valve Attach waterlines to angle stops and tighten until snug. Turn on angles stops and check for leaks (DO NOT TURN FAUCET ON) Step 5: Flush faucet After installing faucet, remove aerator. Turn water on for 30 seconds to remove any debris.
- Page 9 Replacement Parts Replacement Parts List Finish / Color Part # 1. Aerator Assembly CH, SFS* KP27295 2. Washer KP27031 3. Block KP27030 4. O-ring KP27029 5. Index KP27222 6. Set Screw KP27033 7. Cartridge KP27257 8. Bonnet Nut KP27258 9. Cap CH,SFS* KP27259 10.
- Page 10 Troubleshooting If you have followed the instructions carefully and your faucet still does not work properly, take the following coorective steps: P R O B L E M C A U S E A C T I O N Leakage under the Bonnet nut (8) has Remove the cover button (12).
- Page 11 Any product reported to the authorized dealer or to Kraus as being defective within the warranty period will be repaired or replaced with a product of equal value at the option of Kraus. This warranty extends to the original owner or end-user, and is not transferable to a subsequent owner.
- Page 12 Rico shipping charges may apply). International shipping fees are not included. Commercial Warranty Kraus extends the above warranty for a period of one (1) year to purchasers of products for industrial, commercial, and business use. All incidental or consequential damages are specifically excluded. No additional warranties, express or implied, are given, including but not limited to any implied warranty of merchantability or fitness for a particular purpose.
- Page 13 IMPORTANT Register Your Kraus Product Activate Your Warranty Access Premium Customer Support Get Product Information REGISTER TODAY http://www.kraususa.com/registration www.kraususa.com...
