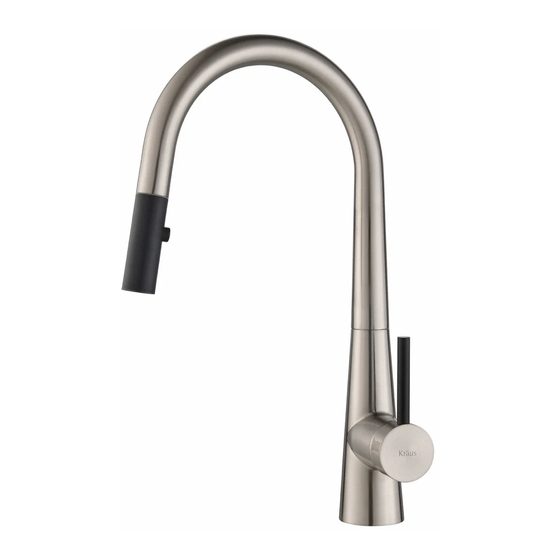

- Page 1 I N S TA L L AT I O N MA N UA L Crespo™ Single Lever Pull Down Kitchen Faucet KPF-2720 www.kraususa.com I toll free: 1.800.775.0703 I © 2014-2015 Kraus USA Inc. I REV. March 30, 2017...
- Page 2 Thank you for your purchase We would like to take this opportunity to thank you for choosing Kraus. We hope that you are completely satisfied with your purchase, and enjoy it for years to come. If you have any questions, or require technical assistance, please contact us at 800.775.0703 and one of our representatives will be happy to help.
-
Page 3: Prior To Installation
8 5/16” • Make sure you have all necessary parts by checking the diagram and parts list. (257mm) (21mm) If any part is missing or damaged, please contact Kraus Customer Service at 1 15/16” ∅ 800-775-0703 for a replacement 50mm) 1 3/8”... - Page 4 Diagram and Parts List A. Spray Head B. Faucet Body C. Deck & Putty Plate D. Base E. Spray Hose F. Supply Hose G. Hot & Cold Waterlines H. Weight I. Quick Connect J. Hex Wrench Set J1. 2.5mm J2. 4mm...
-
Page 5: Faucet Dimensions
Faucet Dimensions 10-1/8” 10-1/8” (257mm) (258mm) 8-3/8” 4-3/8” (213.5mm) (110mm) º 2-1/2” (63mm) Check Value 9/16-24 UNEF (3/8” Compression) - Page 6 Step 1A: Install base without deck & putty plate Insert base (D) into sink or countertop with “FR↑NT” facing forward. Tighten screws on base (D) with 4mm hex wrench (J) until base is secure on sink or countertop Installer Tip: Rotate the two half-moon shaped locking nuts inward before inserting base (D) into sink or...
- Page 7 Step 1B: Install base with deck & putty plate Place a bead of clear silicone sealant (not included) around the edge of the putty plate (C). Secure deck & putty plate (C) on sink or countertop. Insert base (D) into hole of deck &...
-
Page 8: Step 2: Install Faucet
Step 2: Install faucet Remove Quick Connect (I) from spray hose (E). Insert spray hose (E) into small hole of base (D). Insert hot & cold waterlines (G) and supply hose (F), one by one, in large hole of base Step 3: Secure faucet Align arrow on faucet body (B) with arrow on base (D). - Page 9 Step 4: Connect waterlines to main valve Thread hot & cold waterlines (G) onto angle stops. Tighten with adjustable wrench until snug. Turn on the angle stops and check for leaks (DO NOT TURN FAUCET ON) Installer Tip: Use two wrenches when securing waterlines to angle stops to Cold...
- Page 10 Step 6: Install weight Attach weight (H) on the Cold designated mark on the spray hose (E) Cold Designated Mark Step 7: Flush faucet Remove spray head (A). Hold tip of spray hose (E). Turn faucet on for 1 minute to flush any debris. Reconnect spray head (A)
- Page 11 Replacement Part List 1. A Index Button B Set Screw 2. Metal Handle 3. Cartridge Cover 4. Locking Nut 5. Cartridge 6. Plastic Cover 7. Spray Head 8. Set Screw 9. Cover & Putty Plate 10. Quick Connect Assembly 11. Spray Hose 12.
-
Page 12: Troubleshooting
Trouble - Shooting If you have followed the instructions carefully and your faucet still does not work properly, take the following corrective steps: P R O B L E M C A U S E A C T I O N Leaking from spray Quick Connect (10) may Remove Quick Connect... -
Page 13: Care And Maintenance
Do not clean with soaps, acid, polish, abrasives, or harsh cleaners Do not use cloth with a coarse surface Left Unscrew the aerator and clean when necessary Open Hot Water *This installation manual is subject to change without further notice. Download the Kraus Care & Maintenance Guide at: http://www.kraususa.com/maintenance... - Page 14 Kraus USA, Inc. 12 Harbor Park Drive Port Washington, NY 11050 Toll-free 800-775-0703 Customerservice@kraususa.com If you are a plumbing contractor or trade professional please contact a Kraus Pro Representative at: Kraus USA, Inc. 12 Harbor Park Drive Port Washington, NY 11050 516-801-8955 Proservice@kraususa.com...
