Summary of Contents for Kraus KPF-2620

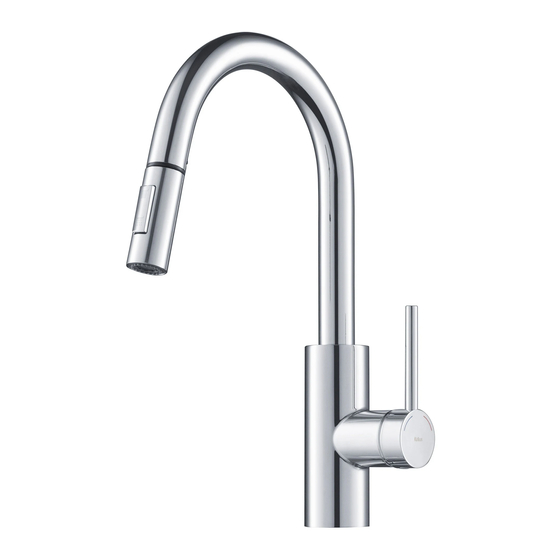

- Page 1 INSTALLATION GUIDE Single Lever Pull Down Kitchen Faucet...
- Page 2 Congratulations on the purchase of your new plumbing fixture! Please keep teh box and packaging materials until your product is completely installed. If you have any questions, require technical assistance, or have any problems with your product: DO NOT RETURN TO STORE Please contact our Customer Service Team Have the model number available, and retain a copy of your receipt with purchase date for reference.
- Page 3 7/8” (22mm) 19.7 º Prior to Installation: 10 1/8” 8 5/16” • Make sure you have all necessary parts by checking the diagram and parts list. (257mm) (21mm) If any part is missing or damaged, please contact Customer Service 1 15/16” ∅...
-
Page 4: Spray Head
Diagram and Parts List A. Spray Head B. Faucet Body C. Deck & Putty Plate D. Supply Hose E. Hot & Cold Waterlines F. Spray Hose G. Weight H. Quick Connect I. Hex Wrench i1. 2.5mm i2. 4mm J. Base... - Page 5 Faucet Dimensions 10 1/2" 10 1/4" 267mm 260mm 8 3/4" 4 1/4" 221mm 109mm 15 º 2 1/2" 62mm Check Value 9/16-24UNEF 3/8” Compression...
- Page 6 Step 1A: Install base without deck & putty plate Insert base (J) into sink or countertop with “FR↑NT” facing forward. Tighten screws on base (J) with 4mm hex wrench (i2) until base is secure on sink or countertop Installer Tip: Rotate the two half-moon shaped locking nuts inward before inserting base (J) into sink or countertop Half Moon Locking Nuts...
- Page 7 Step 1B: Install base with deck & putty plate Place a bead of clear silicone sealant (not included) around the edge of the putty plate (C). Secure deck & putty plate (C) on sink or countertop. Insert base (J) into hole of deck & putty plate (C) with “ FR↑NT” facing forward. Tighten screws on base (J) with 4mm hex wrench (i2) until base is secure on deck &...
-
Page 8: Set Screw
Step 2: Install faucet Remove Quick Connect (H) from spray hose (F). Insert spray hose (F) into small hole of base (J). Insert hot & cold waterlines(E) and supply hose (D), one by one, in large hole of base Step 3: Secure faucet Align arrow on faucet body (B) with arrow on base (J). -
Page 9: Quick Connect
Step 4: Connect waterlines to main valve Thread hot & cold waterlines (E) onto angle stops. Tighten with adjustable wrench until snug. Turn on the angle stops and check for leaks (DO NOT TURN FAUCET ON) Installer Tip: Use two wrenches when securing waterlines to angle stops to prevent kinking, as... -
Page 10: Spray Hose
Step 6: Install weight Attach weight (G) on the designated mark on the spray hose (F) Designated Mark Step 7: Flush faucet Remove spray head (A). Hold tip of spray hose (F). Turn faucet on for 1 minute to flush any debris. Reconnect spray head (A) - Page 11 Replacement Part List 1. Spray Head 2. Washer 3. Hose Guide Hexagon Nut 4. Spout Clip 5. Set Screw 6. Catridge 7. Locking Nut 8. Catridge Cover 9. Metal Handle 10. A Set Screw Cold B Index Button Water Water 11.
- Page 12 Trouble - Shooting If you have followed the instructions carefully and your faucet still does not work properly, take the following corrective steps: P R O B L E M C A U S E A C T I O N Leaking from spray Quick Connect (8) may Remove Quick Connect...
- Page 13 Codes / Standards Applicable: GREEN LEAD FREE Meets ASME A112.18.1M/A112.18.1 NSF/ANSI Standard 61 certified by IAPMO 1.75gpm 6.6L/min maximum & T NSF/ANSI Standard 372 certified by IAPMO Water Efficiency FAUCET WARRANTY...
- Page 14 In requesting warranty service, please be ready to provide: 1. Proof of purchase. 2. A description of the problem.
- Page 15 IMPORTANT...
