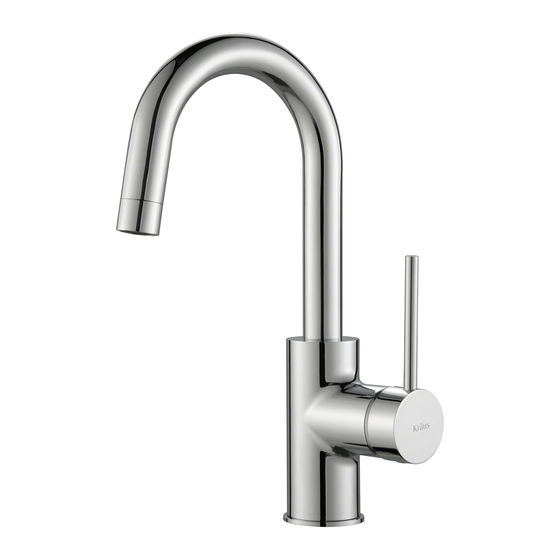

- Page 1 INSTALLATION GUIDE Oletto™ Single Handle Kitchen Bar Faucet KPF-2600 www.kraususa.com I Toll Free: 1.800.775.0703 I © 2022 Kraus USA Plumbing LLC I REV. Jul 18, 2022...
- Page 2 Congratulations on the purchase of your new Please keep the box and packaging materials until your product is completely installed. If you have any questions, require technical assistance, or have any problems with your product: DO NOT RETURN TO STORE Please contact our Customer Service Team 1-800-775-0703 / customerservice@kraususa.com Have the model number available, and retain a copy of your receipt...
-
Page 3: Prior To Installation
Prior to Installation: • Make sure you have all necessary parts by checking the diagram and parts list. If any part is missing or damaged, please contact Kraus Customer Service at 800-775- 0703 for a replacement • Read all instructions and safety warnings and ensure you have all tools, parts, and equipment necessary for a safe installation. - Page 4 Diagram and Parts List A. Faucet Body C. 6mm Hex Wrench D. 2.5mm Hex Wrench B. Easy Install Assembly...
- Page 5 Faucet Dimension [178.7mm] 4 1/4'' 5 1/2'' [109.1mm] [140.8mm] [52.0mm] 3/8”-compression Installer Tip:...
- Page 6 Step 1: Installing the easy install assembly Remove the old faucet. Clean the mounting surface. Check for the proper thickness of the sink. Insert the base (a) into sink. NOTE : “Front” on the base (a) must face the front of the sink. The two mounting plates (b) on the base (a) must be loose and movable during the installation of the base (a).
-
Page 7: Step 3: Installing The Faucet
Step 3: Installing the faucet Insert the supply lines (1) through the hole of the base (a). Carefully insert the hoses into the base. Place the faucet assembly (A) onto the base (a) as shown in with the provided hex wrench (D, Hex: 2.5 mm). - Page 8 Step 4: Connect waterlines to main valve Attach waterlines to angle stops and tighten until snug. Turn on angle stops and check for leaks (DO NOT TURN FAUCET ON). NOTE are installed before connecting to the main valve. Step 5: Flush faucet After installing faucet, remove aerator.
-
Page 9: Replacement Parts
Replacement Parts Replacement Parts List Finish / Color Part # CH, SFS, MB, 1. Aerator Assembly KP27295 BB, SFACB* 2. Washer GR, BL* KP27031 3. Block KP27030 4. O-ring KP27029 5. Index GR, BL* KP27222 6. Set Screw KP27033 7. Cartridge KP27257 8. -
Page 10: Troubleshooting
Troubleshooting If you have followed the instructions carefully and your faucet still does not work properly, take the following coorective steps: P R O B L E M C A U S E A C T I O N Leakage under the Bonnet nut (8) has Remove the cover button (12). - Page 11 Kraus warrants the structure and finish of the Faucet to be free from defects in material and workmanship under normal usage for as long as the original purchaser resides in the residence in which the Faucet was first installed.
- Page 12 TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS WARRANTY DOES NOT COVER, AND KRAUS USA PLUMBING, LLC SHALL NOT BE LIABLE FOR, ANY SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING LABOR CHARGES TO REPAIR, REPLACE, INSTALL OR REMOVE THIS PRODUCT), WHETHER ARISING OUT OF BREACH OF ANY EXPRESS OR IMPLIED WARRANTY, BREACH OF CONTRACT, TORT, OR OTHERWISE.
- Page 13 IMPORTANT Register Your Kraus Product Activate Your Warranty Access Premium Customer Support Get Product Information REGISTER TODAY http://www.kraususa.com/registration www.kraususa.com...
