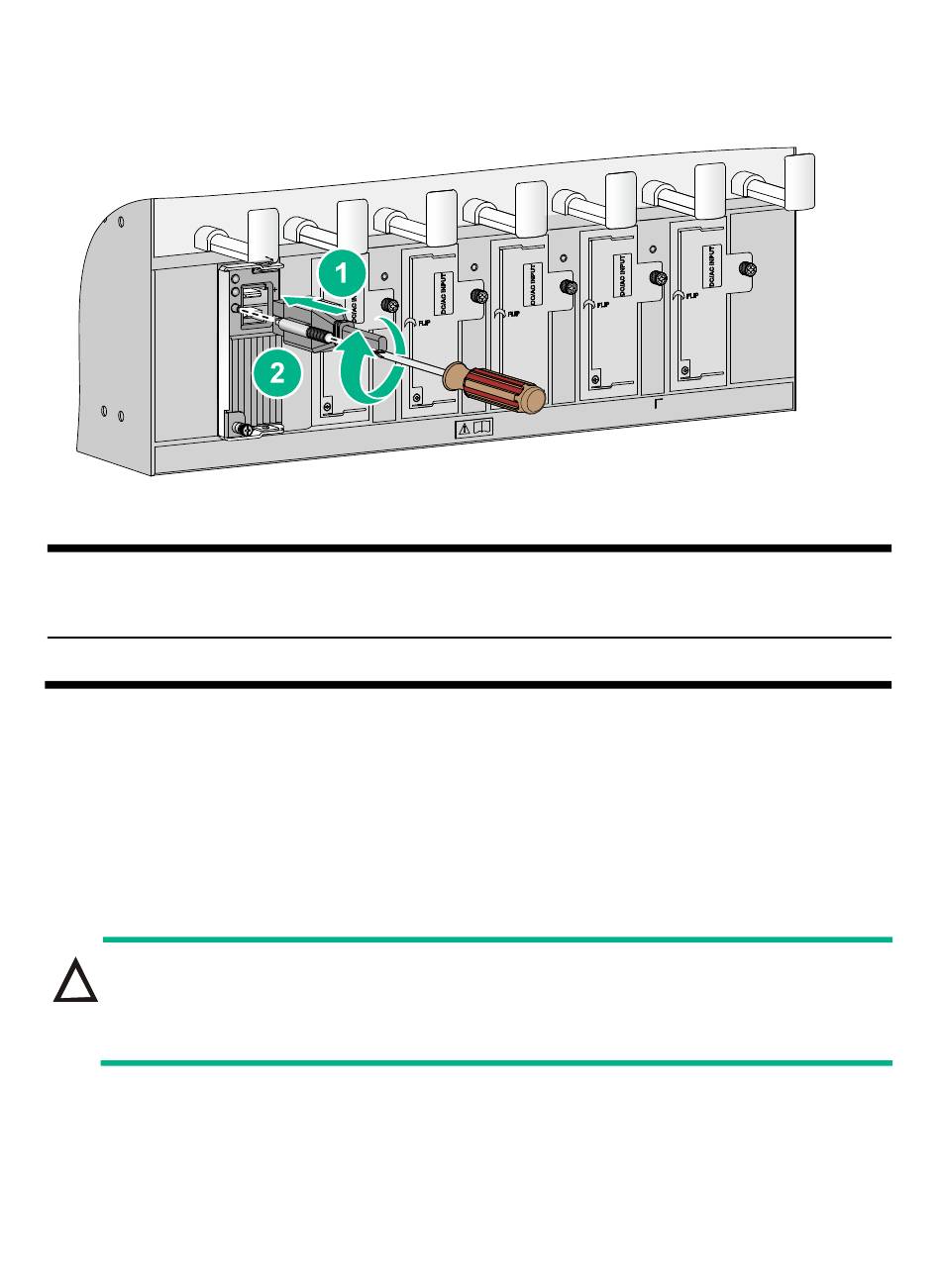

Figure 6 Connecting the power cord (vertical power module
slot)
(1) Plug the DC power cord connector into the receptacle of the
power module.
(2) Fasten the screw on the plug.
3. Connect the other end of the DC power cord to the circuit
breaker, with the negative wire (–) in blue to the negative
terminal (–) and the positive wire (+) in black to the positive
terminal (+).

Removing the power module

CAUTION:
Before you insert a removed power module into a power module
slot, make sure the LEDs on the power module are off.
To avoid device damage and bodily injury, follow the procedure
in Figure 7 to remove the power module.
