Summary of Contents for Puretec TSI Series

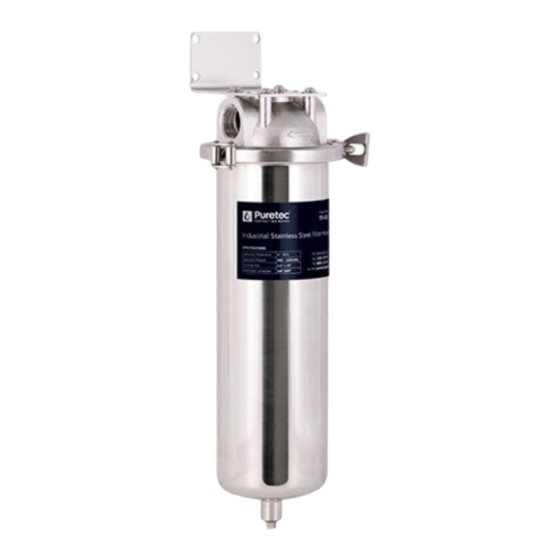

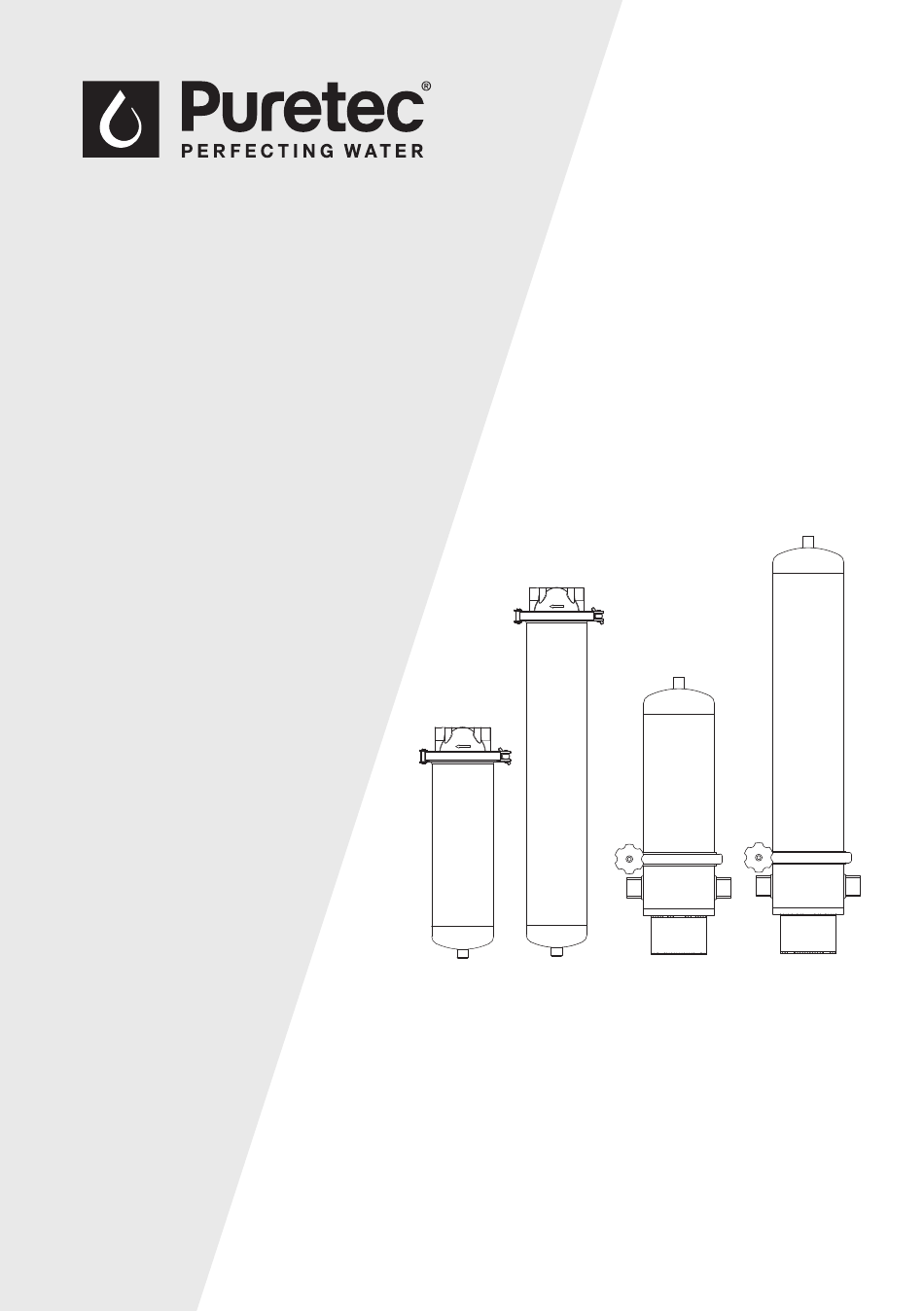

- Page 1 User Guide TSI / TSI-MP Series Stainless Steel Water Filtration Housings For correct operation & installation, it is essential to observe these instructions. AUG2021...
-
Page 2: Table Of Contents
Warranty ............................ 15 Puretec Customer Service Thank you for purchasing a Puretec water filter housing. Your housing is a proven performer manufactured from only quality materials and components and will give years of ‘spring fresh’ water free of impurities if maintained properly. -
Page 3: Guidelines And Warnings
• Chemicals absorbed by the skin can be removed for use in the shower. The Puretec filter housing cartridges need replacing regularly to maintain optimum performance. Replace cartridges when water flow is reduced, taste or odour returns to water (carbon cartridges only) or every 6 to 12 months. For cartridge replacements contact your nearest Puretec stockist. - Page 4 Housing Head Cartridge Rod Mounting Bracket O-ring Housing Head Cartridge Guide Cartridge Rod O-ring Cartridge Guide Clamp Clamp 20" x 2.5" Housing Bowl 10" x 2.5" Housing Bowl Drain Drain Installation & Operation Manual Copyright © Puretec Pty Ltd 2021...
- Page 5 Diagram Fig. 2 - Diagram - TSI-MP Models Vent Vent 20" x 4.5" 10" x 4.5" Housing Bowl Housing Bowl Cartridge Guide Cartridge Guide Cartridge Rod Cartridge Rod Cartridge Guide Gasket Clamp Housing Head Gasket Drain Clamp Mounting Bracket Housing Head Drain Mounting Bracket TSI / TSI-MP Series Water Filtration Housings...
- Page 6 Dimensions Fig. 3 - Dimensions - TSI Models TSI-151, TSI-201 TSI-252 & TSI-251 Installation & Operation Manual Copyright © Puretec Pty Ltd 2021...
- Page 7 Dimensions Fig. 4 - Dimensions - TSI-MP Models TSI-25MP1 TSI-25MP2 TSI / TSI-MP Series Water Filtration Housings...
-
Page 8: Model Information
106 (W) x 645 (H) mm Cartridge Size: 2.5" x 20" Replacement Parts ORDER CODE DESCRIPTION Replacement clamp, suits TSI-151, TSI-201, TSI-251 and TSI-CLMP TSI-252 Replacement O-ring, suits TSI-151, TSI-201, TSI-251 and TSI-OR TSI-252 Installation & Operation Manual Copyright © Puretec Pty Ltd 2021... - Page 9 Model Information TSI-MP 10" Model Information Specifications Model: TSI-25MP1 Operating Pressure Min/Max: 200 - 1034 kPa Operating Temperature Min/Max: 0 - 75 °C (protect from freezing) Inlet/Outlet Connection: 1" BSPT Vent Connection: ¼" BSPT Drain Connection: ¼" BSPT Material: Dimensions: 127 (W) x 494 (H) mm Cartridge Size: 4.5"...
-
Page 10: Positioning Your Filter
Securely fix the mounting bracket and pipework with suitable clips. Allow enough clearance under (above for TSI-MP models) the housing bowl for filter changes. Flush debris from pipework. Install filter cartridge as per cartridge replacement instructions. 10 Installation & Operation Manual Copyright © Puretec Pty Ltd 2021... - Page 11 Typical Installation Diagrams Fig. 5 - Typical Installation - TSI Models Inlet Outlet Vent Pressure Connecting Isolation Limiting Valve Pipework Valve (recommended) Isolation Valve Drain Fig. 6 - Typical Installation - TSI-MP Models Vent Inlet Outlet Drain Pressure Connecting Isolation Limiting Valve Pipework Valve (recommended)
- Page 12 Housing Head Housing Bowl O-ring Cartridge (not included) Cartridge Cartridge Guide (not included) Gasket Housing Bowl Cartridge Rod INLET OULET Cartridge Guide Housing Head Cartridge Rod Drain Mounting Bracket Drain 12 Installation & Operation Manual Copyright © Puretec Pty Ltd 2021...
-
Page 13: Replacement Guide
Replacement Guide Replacement Guide You can obtain replacements from your local Puretec dealer. To maintain performance, warranty and standards use genuine Puretec replacements. To maintain the high quality of the purified water the cartridge need changing every 6 - 12 months, dependent on water quality and usage. You can obtain replacement cartridges from your local Puretec stockist. - Page 14 12 Close down stream tap and check for leaks. Flush system for 10 minutes after any period of non-use more than 2 days. For a period of non-use of 2 weeks or more, it may be necessary to replace the cartridge. 14 Installation & Operation Manual Copyright © Puretec Pty Ltd 2021...
-
Page 15: Warranty
Use PTFE thread seal tape on all connections. Use of liquid pipe sealant/dope will void warranty. Warranty/Australia This warranty is given by Puretec Pty Ltd, ABN 44 164 806 688, 37-43 Brodie Road, Lonsdale SA 5160, telephone no. 1300 140 140 and email at sales@puretec.com.au.
