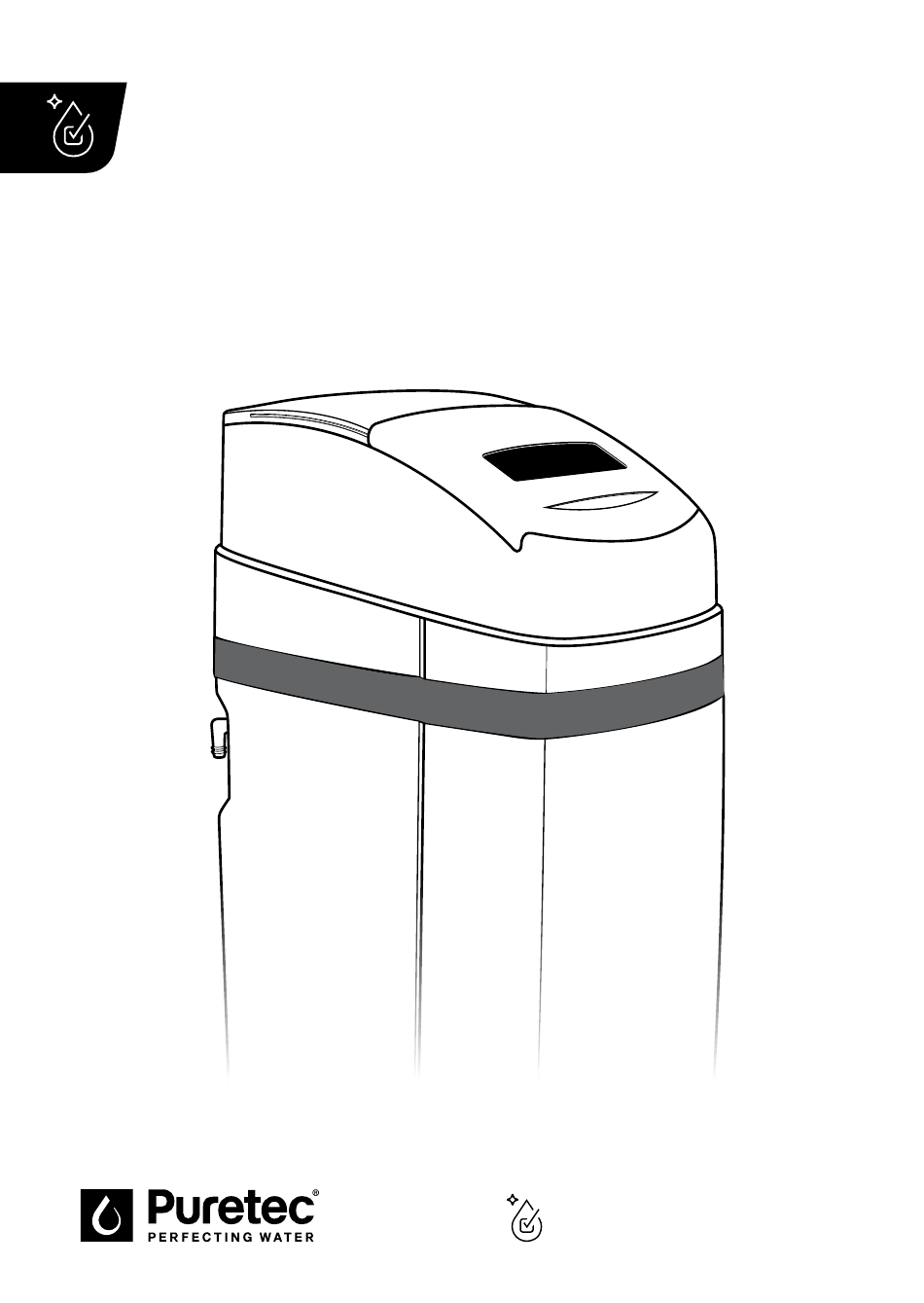

- Page 1 TAN-E3 TAN-E3 Volumetric Domestic Tannin Reduction System User Guide W A T E R T R E A T M E N T...
-
Page 2: Table Of Contents
Bypass Valve Operation - optional accessory .................21 Troubleshooting Guide ..........................22 Warranty ................................26 WMTS103 Licence No. WM 74593 Pro-Switch Pty Ltd DO NOT OVERTIGHTEN. DO NOT USE LIQUID SEALANTS. Installation & Operation Manual Copyright © Puretec Pty Ltd 2024 SURGE PROTECTION... -
Page 3: Puretec Customer Service
It will give years of reliability and trouble free operation if maintained properly. This user guide is designed for Puretec TAN-E3 Water Treatment Systems. Be careful to ensure the information and illustration is applicable to your particular unit. -
Page 4: Installation Record
TDS (Total Dissolved Salts): ___________ ppm / mg/L Conductivity: ___________ EC / uS/cm Chloride: ___________ ppm / mg/L Sodium: ___________ ppm / mg/L NOM (Natural Organic Matter): ___________ ppm / mg/L Installation & Operation Manual Copyright © Puretec Pty Ltd 2024... -
Page 5: Before Installation
• Install as close as possible to a drain. • Install in correct relationship to other water treatment equipment. Contact Puretec for assistance. • Install the tannin reduction system in the supply line BEFORE the water heater. - Page 6 & is not covered under warranty. If chlorine is present, a carbon pre-filter must be installed prior to the tannin reduction system such as the WH2 or CFS Series. Please refer to Puretec for a specific recommendation. A carbon pre- filter protects against chlorine spikes & prolongs the resin life.
-
Page 7: Specifications
32 kg. * Where line pressure exceeds 500 kPa, an approved pressure limiting device must be installed to comply with Australian & New Zealand Plumbing Standards. (Ref. AS/NZS 3500.1:2021, Clause 3.3.4). Copyright © Puretec Pty Ltd 2024 TAN-E3 User Guide... -
Page 8: Exploded Diagram
Exploded Diagram Exploded Diagram Installation & Operation Manual Copyright © Puretec Pty Ltd 2024... -
Page 9: Parts Identification
Brine Well Blank KTU6BK Tubing High Pressure 3/8" Black Brine Well Lid WTV3030 Pressure Tank Collar UV Shield Diagram Identification Outlet 1" Inlet 1" ⅜” Brine ⅝” Drain Tube Control Panel Copyright © Puretec Pty Ltd 2024 TAN-E3 User Guide... -
Page 10: Dimensions
Dimensions Dimensions 10 Installation & Operation Manual Copyright © Puretec Pty Ltd 2024... -
Page 11: Installation Procedure
18 for the type of salt to pressure for drain and be used). overflow (refer to page14). Ensure Water Has Been Tested Input values into Table on page 4 and the analysis has been inspected by Puretec. Water Analysis Information Hardness ___________ ppm / mg/L Iron... - Page 12 Uninstall the plastic fittings by turning the knob counter Connect the bypass assembly followed clockwise. by the plastic fittings. Hand tighten the knobs, do not overtighten. Refer to Bypass Valve Operation section. 12 Installation & Operation Manual Copyright © Puretec Pty Ltd 2024...
- Page 13 Leave at least 6” between the fitting and solder joints when soldering pipes. Failure to do this could cause heat damage to the fittings. This should be carried out by a qualified tradesman. Copyright © Puretec Pty Ltd 2024 TAN-E3 User Guide...
- Page 14 6.1 Plug into an uninterrupted electrical outlet. Note: the system transformers are not weather resistant and should be adequately protected. All electrical connections must be connected accordingly to local codes. 6.2 Proceed to ‘Programming’ section. 14 Installation & Operation Manual Copyright © Puretec Pty Ltd 2024...
-
Page 15: Programming
Step 3: Current Time (minutes) : Set the min- utes of the day using ▲ or ▼ buttons. Press NEXT to exit Set Clock. Press REGEN to return to the previous step. Copyright © Puretec Pty Ltd 2024 TAN-E3 User Guide... -
Page 16: Regeneration
When the system begins to Regenerate, the display will change to include information about the step of the regeneration process and the time remaining for that step to be completed. 16 Installation & Operation Manual Copyright © Puretec Pty Ltd 2024... -
Page 17: Manual Regeneration
The request cannot be cancelled. Power Loss Your Puretec electronic control valve maintains the time for up to 8 hours using the internal PCB battery if power is interrupted. Nonvolatile memory stores the stats & programming & are not affected by power outages. -
Page 18: Start-Up
Wait until the water is flowing out of the tap and then increase the flow slowly up to full flow. Allow to run for 5-10 minutes. Close the opened tap and check for leaks. Conduct a full manual regeneration. Your system is ready for use. 18 Installation & Operation Manual Copyright © Puretec Pty Ltd 2024... -
Page 19: Replenishment Of Salt Supply
Do not place screwdriver in slots on caps and/or tap with a hammer. Maintenance If microbial growth is suspected, sterilise the resin by passing 25-75 litres of diluted TankSafe™ through the media bed (1 litre of TankSafe™ per 74 litres of water). Copyright © Puretec Pty Ltd 2024 TAN-E3 User Guide... -
Page 20: Replace The Backup Battery
The battery should be replaced annually or after extended periods without power. Replacement batteries can also be ordered using code: BA-CR2032 through your local Puretec dealer. 1. Turn off the power to the unit and remove If swallowed, a lithium button bettery can cause severe or the valve cover. -
Page 21: Bypass Operation
SUPPLY WATER EXITS ENTERS EXITS ENTERS Diagnostic Mode Shut Off Mode SUPPLY WATER IS SHUT OFF SUPPLY WATER SUPPLY WATER FROM THE HOUSE ENTERS EXITS NO WATER EXITS & THE VALVE Copyright © Puretec Pty Ltd 2024 TAN-E3 User Guide... -
Page 22: Troubleshooting Guide
E. Contact Puretec for assistance. immediate regeneration. Time of day flashes on and off. A. Power outage(s). A. Reset time of day, replace battery (CR2032) and then perform a ‘dry’ reset. 22 Installation & Operation Manual Copyright © Puretec Pty Ltd 2024... - Page 23 D. Meter not registering/faulty. D. Remove meter and check for rotation or foreign material/replace meter. E. Water quality fluctuation. E. Test water and contact Puretec for assistance. F. No regenerant or low level of regenerant. F. Refill regenerant tank. G. Valve fails to draw regenerant.
- Page 24 C. Leak from seal/spacer stack assembly. C. Clean/replace spacer stack assembly. D. Piston assembly failure. D. Clean/replace piston assembly. E. Loose/damaged drive cap assembly. E. Tighten/replace drive cap assembly. 24 Installation & Operation Manual Copyright © Puretec Pty Ltd 2024...
- Page 25 MOTOR on PC Board. C. Restricted/stalled meter turbine. C. Remove meter and check for rotation or foreign material/replace meter. D. Defective meter. D. Replace meter. E. Defective PC Board. E. Replace PC Board. Copyright © Puretec Pty Ltd 2024 TAN-E3 User Guide...
-
Page 26: Warranty
Warranty/Australia This warranty is given by Puretec Pty Ltd, ABN 44 164 806 688, 37-43 Brodie Road, Lonsdale SA 5160, telephone no. 1300 140 140 and email at sales@puretec.com.au. - Page 27 Copyright © Puretec Pty Ltd 2024 TAN-E3 User Guide...
- Page 28 MAR2024...
