A2
H
G
F
E
D
C
B
A
WMTS103:2016
Certificate No. WM 74593
Australian Certification
Services
NOV2020
SURGE PROTECTION
REQUIRED /
NO EXTENSION CORDS.
12
11
10
DO NOT SCALE
12
11
10
For correct operation & installation, it is essential to observe these instructions.
9
8
User Guide
WU-UV Series
9
8
Filtration & Ultraviolet All-in-One Unit
DO NOT OVERTIGHTEN.
DO NOT USE
LIQUID SEALANTS.
SURGE PROTECTION
REQUIRED /
NO EXTENSION CORDS.
7
6
DIMS.
0
+- 1.0mm
0.0
+- 0.5mm
0.00 +- 0.1mm
DIMENSIONS ARE IN MILLIMETRES
ANGLES:
0
+- 1.0deg.
7
6
5
4
A
INTRODUCTION
REV.
SUPPLY SPECIFICATION
DE
N/A
DRAWN BY
DATE
25/02/2020
PETER KENNEDY
5
4
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Puretec WU-UV Series
Summary of Contents for Puretec WU-UV Series
- Page 1 REQUIRED / NO EXTENSION CORDS. User Guide INTRODUCTION REV. SUPPLY SPECIFICATION DRAWN BY DATE 25/02/2020 PETER KENNEDY WU-UV Series DIMS. +- 1.0mm +- 0.5mm 0.00 +- 0.1mm DO NOT SCALE DIMENSIONS ARE IN MILLIMETRES ANGLES: +- 1.0deg. WMTS103:2016 Certificate No. WM 74593 Filtration &...
-
Page 2: Table Of Contents
Cartridge Replacement Procedure ................13 Lamp Replacement Procedure ..................14 Quartz Sleeve Maintenance/Replacement Procedure ........15 Troubleshooting Guide ...................... 17 Warranty ............................ 19 Product Information Distributor: Installer: Phone: Date Installed: Installation & Operation Manual Copyright © Puretec Pty Ltd 2020... -
Page 3: Puretec Customer Service

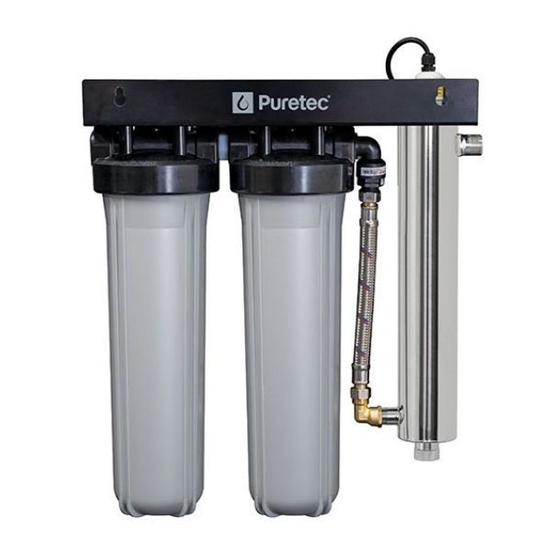

Introduction Puretec Customer Service Thank you for purchasing a Puretec WU-UV Series Whole House UV Water Treatment System. Your system is a proven performer manufactured from quality materials and components and will give years of ‘spring like’ water, free of impurities, if maintained and installed properly (refer installation requirements p.6). -
Page 4: Preparing Your System
Preparing the system Preparing Your System Puretec systems are designed to run economically for many years, dependent on the initial installation and periodical maintenance. Please read all instructions carefully as failures caused by incorrect installation or operation are not covered by warranty. -
Page 5: Positioning Your System
A suitable surge protection device must be installed with this product (not included). Puretec recommends the use of a surge protector or warranty may be voided. It would usually be sufficient for the surge protector to be installed under the eaves of a house and/or out of the weather, otherwise, it would need to be suitably protected. -
Page 6: Installation Requirements
Installation Requirements Installation Requirements • All Puretec WU-UV models are intended for indoor installation (must be protected from weather, frost, water and have adequate ventilation). • All Puretec WU-UV models should be protected from harsh environments where overexposure to salt or aggressive chemicals can occur. - Page 7 INSTALLATION SHOULD BE COMPLETED BY QUALIFIED TRADESPEOPLE. FAULTY OPERATION DUE TO UNQUALIFIED PERSONS WILL RESULT IN VOIDED WARRANTY COVERAGE. WU-UV SERIES | Filtration & Ultraviolet Disinfection All-in-One Unit...
-
Page 8: Initial Installation Procedure
Installation Procedure Initial Installation Procedure The Puretec WU-UV Series has 1" [25mm] plumbing connections. Before attempting installation check the unit to ensure the quartz sleeve is intact within the Radfire UV Unit. Locate a suitable position for the WU-UV system remembering to allow 120mm under units with 20"... - Page 9 Fig. 5 through the whole unit. Turn on a downstream tap to let water flow through the unit for 2-3 minutes to release air and impurities from the system. 13. Turn the power on and ensure that the lamp is operating. Make sure that the GREEN LED is illuminated (refer Lamp Replacement Procedure on pg.14). WU-UV SERIES | Filtration & Ultraviolet Disinfection All-in-One Unit...
-
Page 10: Operation
'delay' appears on the screen. Radfire UV Unit Specifications AC 240V | 50Hz Lamp Power: 35W~95W Lamp Current: 0.8A~0.9A Ambient Temperature: 4~40°C Lamp Rated Life: 365 days Caution: Ground the ballast casing to avoid possible high voltage shock hazard 10 Installation & Operation Manual Copyright © Puretec Pty Ltd 2020... -
Page 11: Uv Chamber Diagram
UV Chamber Diagram Fig. 6 UV Chamber Diagram Lamp Power Connector Grounding Wire & Safety Cap Aluminium Nut O-Ring UV Lamp Quartz Sleeve Mounting Flange Water Outlet Water Inlet Spring O-Ring Aluminium Nut WU-UV SERIES | Filtration & Ultraviolet Disinfection All-in-One Unit... -
Page 12: Replacement Parts Guide
To maintain a high quality of purified water, the cartridges will need changing periodically (dependent on water quality and usage). You can obtain replacement cartridges from your local Puretec dealer. To maintain performance, warranty and Australian Standards use genuine Puretec replacements. -
Page 13: Cartridge Replacement Procedure
Remove old cartridges and dispose in the correct manner. Clean bowls with Puretec Housing Sanitiser or detergent and warm water and then rinse thoroughly. Check O-rings for damage and replace if necessary. -
Page 14: Lamp Replacement Procedure
We recommend replacing UV lamp annually to ensure high sterilising rate with best water quality. Always keep UV lamp on, as power fluctuation will shorten the service life of the UV lamp. O Ring 14 Installation & Operation Manual Copyright © Puretec Pty Ltd 2020... -
Page 15: Quartz Sleeve Maintenance/Replacement Procedure
Quartz Sleeve. If you need to purchase a new sleeve, for now continue with the next steps and install the new sleeve once you have received it. Replacing UV Lamp WU-UV SERIES | Filtration & Ultraviolet Disinfection All-in-One Unit O Ring O Ring... - Page 16 1 hour for leaks. Note: For initial use, wait 3-5 minutes to allow water to pass through the whole unit. Turn on a Replacing UV Lamp Replacing UV Lamp downstream tap to let the water flow through the unit for 2-3 minutes to release any air and impurities from system. VALVE O Ring O Ring 16 Installation & Operation Manual Copyright © Puretec Pty Ltd 2020...
-
Page 17: Troubleshooting Guide
No power at AC power outlet. • Replace fuse or reset • Power cord is damaged. breaker. • Power surge caused damage • Replace power cord. to electrical assembly. • Replace ballast. cont. over page. WU-UV SERIES | Filtration & Ultraviolet Disinfection All-in-One Unit... - Page 18 Display flashing. • Power interruption. • Reset ballast. Error Code ‘A3’ on • Ballast countdown has • Replace lamp. ballast. reached 0, lamp life expired. 18 Installation & Operation Manual Copyright © Puretec Pty Ltd 2020...
-
Page 19: Warranty
Applicable to all above, is that the warranties need to be approved by Puretec to ensure product was not incorrectly used, installed or claimed. False and incorrect claims will be pursued at Puretec’s discretion, including chargeable inspection and labour costs...
Need help?
Do you have a question about the WU-UV Series and is the answer not in the manual?
Questions and answers
How do you reset the ballast
To reset the ballast on a Puretec Series:
1. Plug in the ballast power connector and turn the power on.
2. Press and hold the silver button for 15 seconds.
3. Wait until "reset" is shown on the screen and a single beep is heard.
4. The display will show "365 days" and the green "on" LED button will be lit.
This answer is automatically generated
