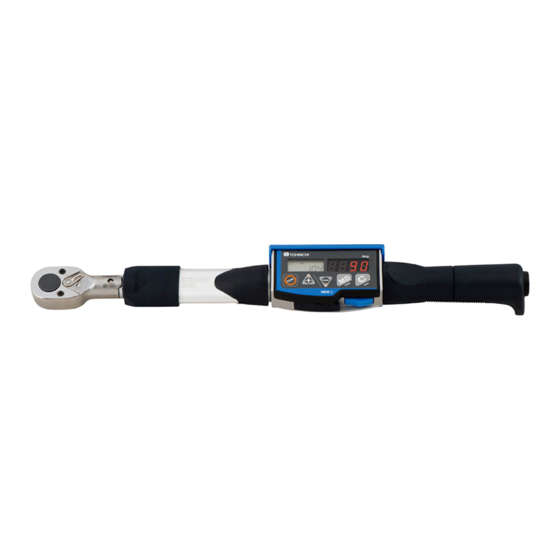

CTA2-G,Torque & Angle Wrench

Quick Start

1) Install and charge battery using Tohnichi charger until green light goes on.

2) Set on stable surface (do not move), Power ON ,wait for GOOD

3) Using arrow keys set counter to "000"

4) Press "MD" key for 2 seconds to enter set up menu

5) Setup Menu Select using arrow keys and save by pressing MEM key

SEL

USEL Select Unit N*m, Kg*fm/Kg*fcm,Ft*lbs/In*lbs

Sng

AN-H Set angle upper limit

tUrn Set measurement direction CW or CCW

PoFF Auto Power Off, 3min.or 10, 30 or None

bpS

Prt

dFLt DFT-N do not reset or DFT-Y reset defaults

rtC1

Mode-S (Single) or Mode-P (Production)

Set snug torque value

Set angle value

Auto Reset set time 0.00 = OFF or 0.1~5.0 seconds

Keypad beeping On/Off

Data Output:, PC, or PRN (printer),

Baud Rate: 9600 or 2400, 4800, 19200

Data length 8bit or 7 bit

Parity Even or Odd

Set Clock (Hour/Month/Second)
