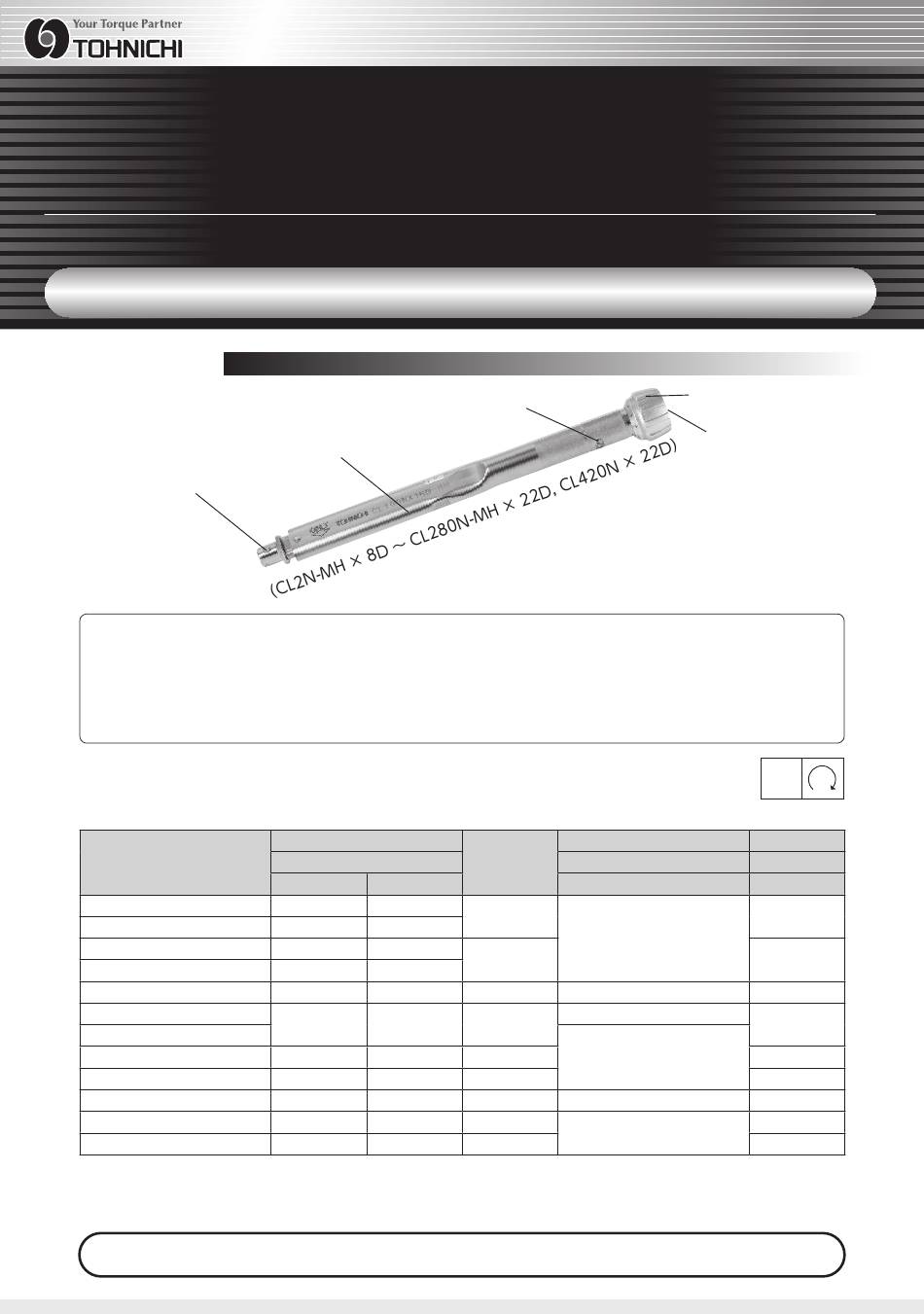

東日トルクレンチ
TOHNICHI TORQUE WRENCHES CL-MH
取扱説明書

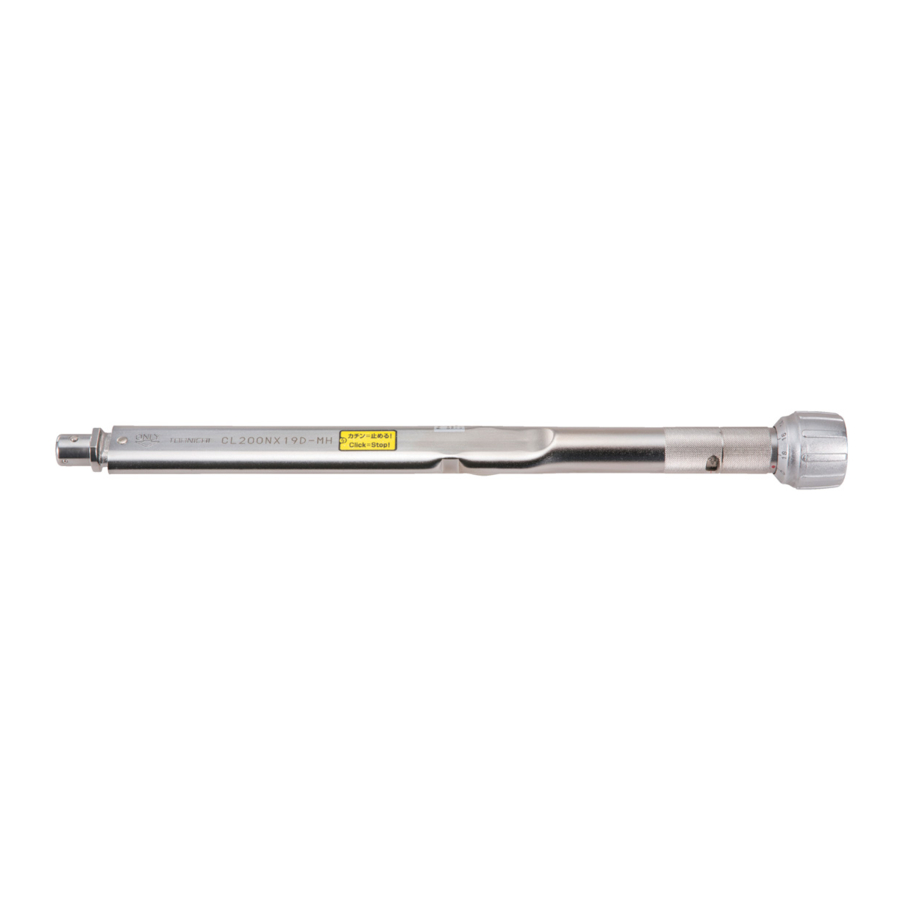

CL-MH型
CL-MH Model
ヘッド
Head
本製品を正しく安全にご使用いただく
為に、ご使用に先立ち本取扱説明書を
必ず熟読し、ご不明の点がありました
ら、販売店又は東日へご連絡下さい。
CL-MH、CL420N仕様
型式
Model
CL2N × 8D-MH
CL5N × 8D-MH
CL10N × 8D-MH
CL15N × 8D-MH
CL25N × 10D-MH
CL50N × 12D-MH
CL50N × 15D-MH
CL100N × 15D-MH
CL140N × 15D-MH
CL200N × 19D-MH
CL280N × 22D-MH
CL420N × 22D
注 1 全長は、本体のみの長さです。
注 2 交換ヘッドは別売です。
注 3 交換ヘッドの PH(パイレンヘッド)は使用できません。
注 4 検査用には使用できません。
計量法により重力単位系(kgf・cm, kgf・m)製品は、日本国内での販売ができません。
Metric unit (kgf・cm, kgf・m) products are legally not available to sell in the Japanese market.
CL-MH型
OPERATING INSTRUCTION
主目盛
Main
Graduation
チューブ
Tube
トルク調整範囲
[N・m]
最小(Min)
最大(Max)
0.4
2
1
5
2
10
3
15
5
25
10
50
20
100
30
140
40
200
40
280
60
420
In order to use the torque wrench properly
and safely, please read this instructions before
operation. If any questions, please contact to
Tohnichi authorized distributor or Tohnichi office.
Keep this operating instruction for future use.
Specifi  cations
適用交換ヘッド
全長
Interchangeable Head
[mm]
別売  (Optional)
140
175
200
235
310
370
455
655
945
1. Overall length does not include interchangeable head.
2. Interchangeable heads are optional.
3. PH type interchangeable head is not available for this model.
4. Not for inspection purpose.
副目盛
Supplementary Graduation
ロッカー
Locker
負荷
方向
精度 Accuracy ± 3%
質量(約)
Weight
[kg]
0.13
8D
0.16
10D
0.25
12D
0.45
15D
0.69
0.79
19D
1.4
1.9
22D
3.1
