Soundoff Signal mpower EMPSC07M Series Manual

7x3 quick mount, screw mount, & stud mount
Hide thumbs Also See for mpower EMPSC07M Series:
Table of Contents

Advertisement

Quick Links

Download this manual

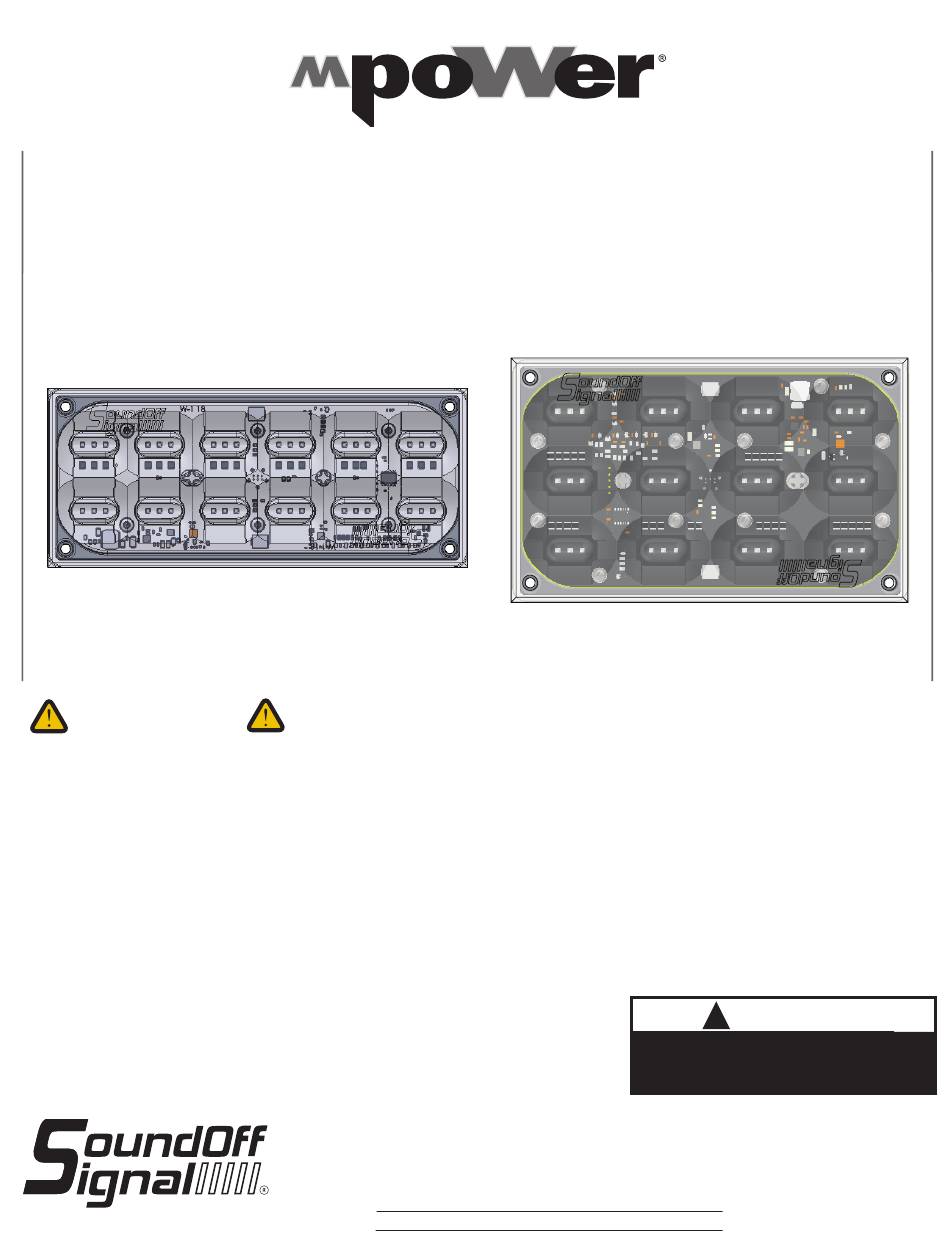

EMPSC07M(x)-(x) - 7X3 Quick Mount, Screw Mount, & Stud Mount
EMPSB0C9(x)-(x) - 6X4 Quick Mount, Screw Mount, & Stud Mount
Protected by U.S. Patent 10,703,260 and Patents Pending
https://soundoffsignal.com/legal/patent-notification/
WARNING
• HIGH CURRENT interconnects must be properly terminated. Poor crimp
quality can cause heat build-up and fire. Follow the crimp connector
manufacturer instructions.
• DO NOT install this product or route any wires in the Air Bag Deployment
Zone. Refer to vehicle Owner's Manual for deployment zones.
• Do NOT use system to disconnect headlights, brake lights or other safety
equipment.
• Unit may become hot to touch during normal operation.
• Failure to properly install connectors, fuses or wiring may cause vehicle
failure or fire.
• Installation must only be performed by trained technician. Installer must
determine vehicle wiring configuration and proper integration of system.
• Use proper wire gauge. All power wires connecting to positive (+) or
negative (-) battery terminal or local chassis ground (-) must be sized to
supply at least 125% of max. current and properly fused at power source.
• Install protective grommets when routing wire through firewall or metal.
• Petroleum/silicone based lubricants will cause the silicone lens to discolor.
1.800.338.7337 / www.soundoffsignal.com
WARNING LIGHT

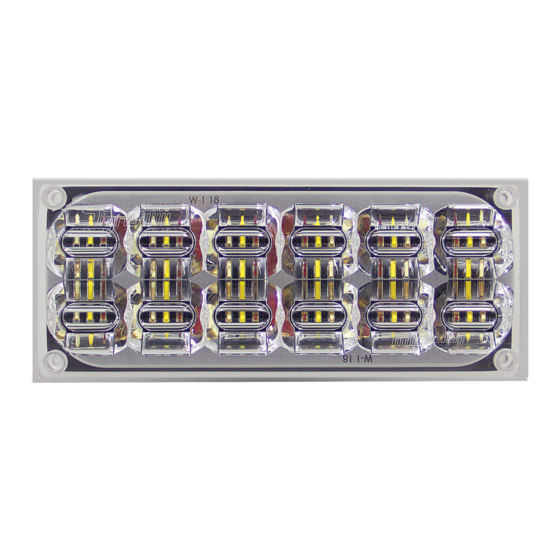

7x3 Tri-color Shown
NOTICE:
Installers and users must comply with all applicable federal, state and local laws regarding use and installation of warning
devices. Improper use or installation may void warranty coverage.To review our Limited Warranty Statement & Return Policy
for this or any SoundOff Signal product, visit our website at www.soundoffsignal.com/tech-services/returns/. If you have
questions regarding this product, contact Technical Services, Monday - Friday, 8 a.m. to 5 p.m. ET at 1.800.338.7337 (press
#4). Questions or comments that do not require immediate attention may be emailed to techservices@soundoffsignal.com.
E N H A N C I N G S A F E T Y T H R O U G H I N N O VAT I O N
With Clear Duty® Technology
DIMENSIONS . . . . . . . . . . . . . . . . . . 2
WARNING LIGHT OPTIONS . . . . . . 2
WIRING INFORMATION . . . . . . . 4-7
6x4 Tri-color Shown
!
ROUTE WIRES ONLY IN LOCATIONS THAT ARE NOT SUBJECTED TO
POTENTIAL WEAR. MAKE SURE TO AVOID ROUTING WIRES IN THE
DEPLOYMENT AREA OF YOUR AIR BAG. REFER TO YOUR VEHICLE'S
OWNER'S MANUAL FOR AIRBAG DEPLOYMENT ZONES.
00KPJL 0822 REV C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the mpower EMPSC07M Series and is the answer not in the manual?

Questions and answers

Related Manuals for Soundoff Signal mpower EMPSC07M Series

Summary of Contents for Soundoff Signal mpower EMPSC07M Series

  • Page 1: Table Of Contents

    Improper use or installation may void warranty coverage.To review our Limited Warranty Statement & Return Policy for this or any SoundOff Signal product, visit our website at www.soundoffsignal.com/tech-services/returns/. If you have questions regarding this product, contact Technical Services, Monday - Friday, 8 a.m. to 5 p.m. ET at 1.800.338.7337 (press #4).

  • Page 2: Dimensions

    • 7x3 - EMPSC0 XXX-X** • NFPA 1901-2009 • 6x4 - EMPSB0 XXX-X** • KKK-A-1822 (July 2021) **See SoundOff Signal configurator or sales representative for specific color, lens, and mounting options. 1.800.338.7337 / www.soundoffsignal.com 7X3 / 6X4 Silicone_WARNING 00KPJL 0822 REV C...

  • Page 3: Technical Specifications

    TECHNICAL SPECIFICATIONS: MPOWER 7X3 & 6X4 WARNING LIGHT ® TECHNICAL SPECIFICATIONS 9-32Vdc Input Voltage: WARNING LIGHT CURRENT CONSUMPTION (Amps) 12.8Vdc 25.6Vdc Peak Average Peak Average 1.55 0.78 0.78 0.39 Amber, Blue, Green, or White 1.90 0.95 0.95 0.48 AFTER POWER IS ON, touching the WHITE wire to the ground will allow you to change various settings on the module. (Refer to page 5) 1.800.338.7337 / www.soundoffsignal.com 7X3 / 6X4 Silicone_WARNING...

  • Page 4: Wiring Information

    WIRING AND TABLE INFORMATION: OVER-VOLTAGE PROTECTION WIRE HOOK-UP TABLE When an over-voltage condition is detected, the module will flash an overvolt- age warning pattern of 50mS ON/950mS OFF to alert of the overvoltage condi- WIRE COLOR: FUNCTION: tion and protect the electronics from damage due to heat/voltage. Power (Primary) THERMAL COMPENSATION PROTECTION BLACK...
  • Page 5 WIRING AND TABLE INFORMATION (CONT.): FUNCTION TABLES EXAMPLE The functional operation of the LED module can be changed while If the light is using Function Table 2 with the Orange applying the +V to the Red wire with the Black wire connected wire to power, which steady burns color 2, and you then apply the to ground.
  • Page 6 WIRING AND TABLE INFORMATION (CONT.): REMOTE MODE: For use with bluePRINT® system only Connecting the Green wire to ground before applying power to the Red or Orange wires will place the LED module into remote mode and the light output color will be directly controlled by the input wires as shown below.
  • Page 7 WIRING AND TABLE INFORMATION (CONT.): COLOR SWAP BACKUP PATTERN This function is only valid for dual and tri-color warning light mod- This function is only valid when the LED module is in a flashing ules and can only be changed when the light module is in a flash- mode (disabled in cruise or steady ON functions).

  • Page 8: Quick Mount Installation

    QUICK MOUNT INSTALLATION: FIG. 6 1. Drill a 3/4" wire hole (see Fig. 7). WIRE HOLE 2. Insert (4) Silicone Plugs into Light to Seal Screw Holes. (Use a 50% VHB QUICK MOUNT Isopropyl alcohol, 50% deionized water mix for lubrication if necessary).

  • Page 9: Screw Mount Installation

    SCREW MOUNT INSTALLATION: Drill (4) 5/16" holes to mount light. Drill 3/4" wire hole. See FIG. 10 Fig. 11(7x3) or Fig. 12(6x4). WIRE HOLE PLACE LIGHT INTO BEZEL, P AND GASKET AGAINST MO If a bezel is being used, place the light into the bezel. WIRE HARNESS Place the gasket on the back of the light and bezel (if GASKET...

  • Page 10: Retention Clip Instructions

    RETENTION CLIP INSTRUCTIONS: NOTE: In the event the harness needs to be disengaged from the light, these instructions can be used to reattach and apply the retention clip. 1. Plug harness into light housing, aligning tab to window, as shown in Fig 13. 2.
