ADS7043EVM-PDK Initial Setup

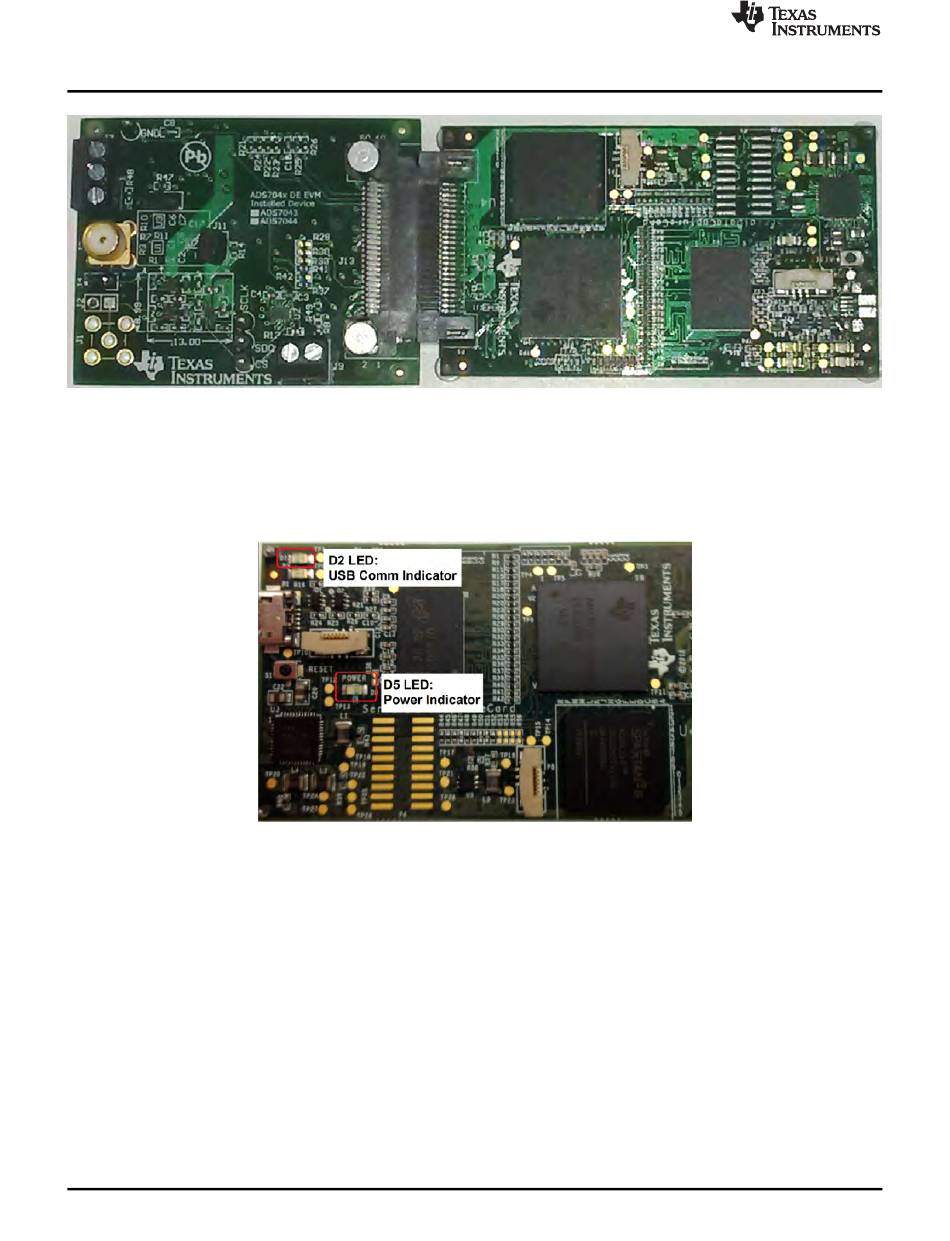

Figure 5. Connecting ADS7043EVM Board to Simple Capture Card
Step 5. Connect the Simple Capture Card to the PC through the micro USB cable.
Step 6. Verify that the LED D5 Power Good indicator is illuminated. Wait approximately ten seconds
and verify that diode D2 blinks, indicating that USB communication with the host PC is
functioning properly.
Card.
5.2.3 Install the ADS7043EVM-PDK Software
The ADS7043 EVM V#.#.# software must be installed on the PC. This software supports the ADS7043-
PDK. Administrator privileges are required to install the EVM software. The following steps list the
directions to install the software:
Step 1. Open Windows Explorer and find the microSD memory card in the browser as a storage
device.
Step 2. Navigate to the ...\ADS7043 EVM Vx.x.x\Volume\ folder.
Step 3. Run the installer by double-clicking the file setup.exe. This action installs the EVM GUI
software and the required and device driver components.
Step 4. After the installer begins, a welcome screen displays. Click Next to continue.
Step 5. A prompt appears with the destination directory; select the default directory
under: ...\Program Files(x86)\Texas Instruments\ADS7043evm\.
8
ADS7043EVM-PDK
Figure 6 shows the location of the LED indicators in the Simple Capture
Figure 6. LED Indicators on the Simple Capture Card
