6.3 Capturing Data with the ADS7043-PDK
Access the Data Capture page in the GUI to monitor data acquired by the ADS7043. This GUI page
displays the acquired data versus time. To access the Data Capture page, hover the cursor over the blue
arrow at the left center side of the GUI screen; a menu with different GUI pages appears. Click on the
Data Capture option in the menu as shown in
SBAU241 – November 2014
Submit Documentation Feedback
Figure

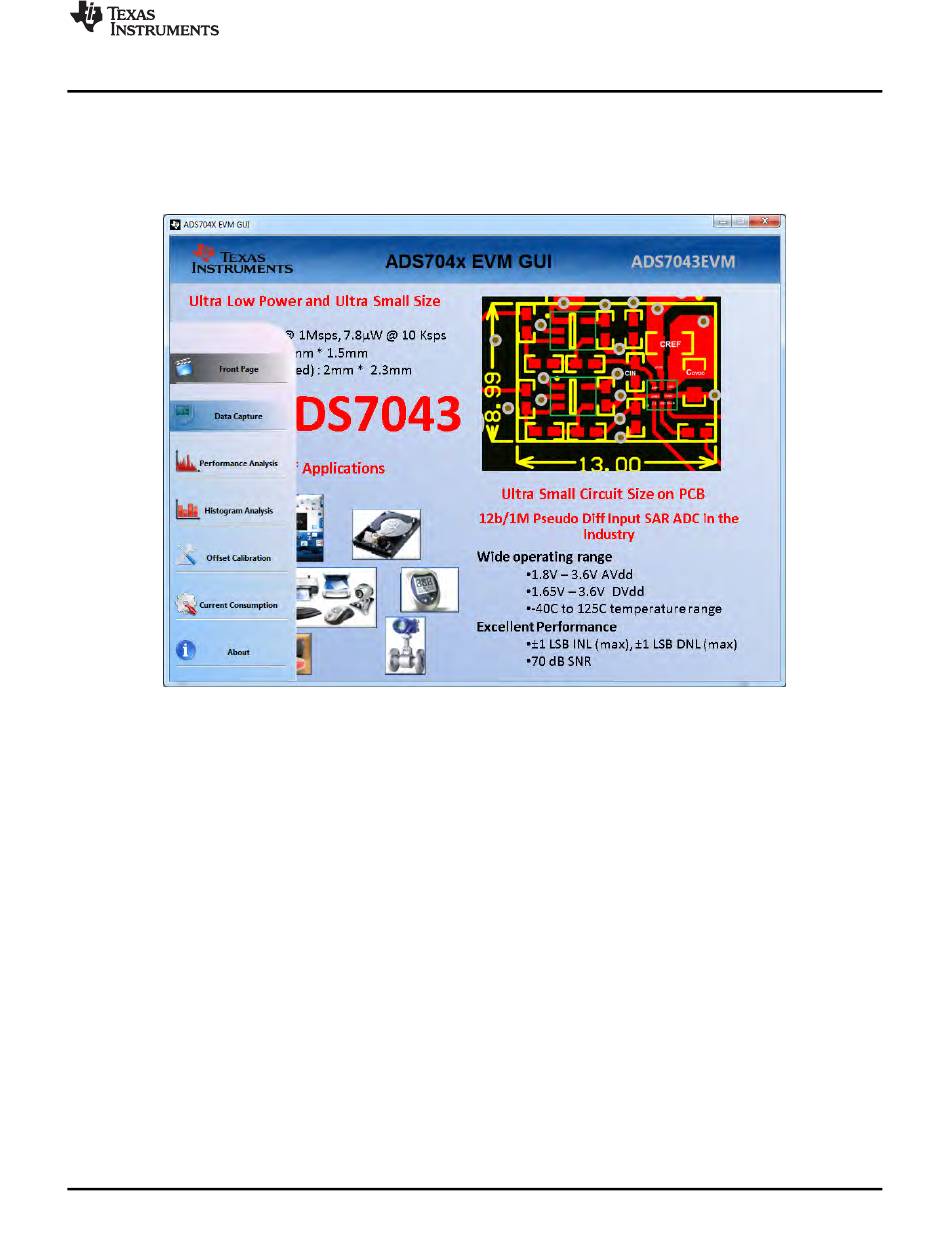

Figure 14. Open the Data Capture Page on the GUI
