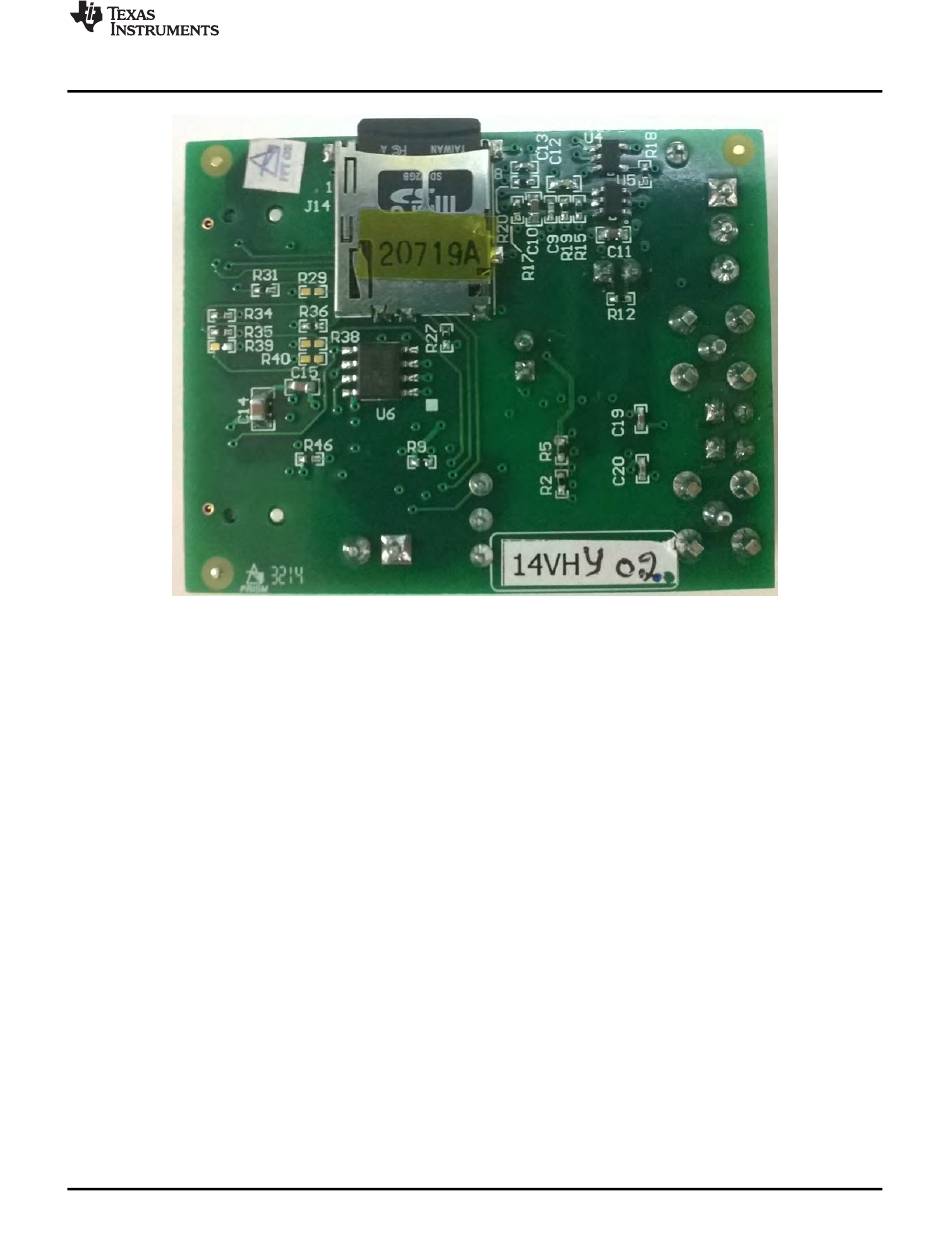

Figure 4. Bottom View of ADS7043EVM Board with microSD Memory Card Installed
The microSD memory card is formatted at the factory with the necessary firmware files for the Simple
Capture Card to boot properly. In addition to this the microSD card on the EVM contain Simple Capture
Card firmware files (app and MLO files) and the ADS7043EVM-PDK software installation files inside the
ADS7043 EVM V#.#.# folder. <V#.#.#> refers to the installation software version number, and increments
with software installer releases.
5.2.2 Verify Jumpers are in the Factory-Default Position and Connect the Hardware
The ADS7043EVM-PDK includes both the ADS7043EVM and the Simple Capture Card; however, the
boards are shipped unconnected.
Follow these steps to verify that ADS7043EVM-PDK kit is configured and connected properly:
Step 1. Verify the ADS7043EVM jumpers are configured as shown in
Step 2. Verify the microSD card is installed on the back of the Simple Capture Card, as shown in
Figure
Step 3. Verify the microSD card is installed on the back of the EVM board, as shown in
Step 4. Connect the ADS7043EVM board to the Simple Capture Card as
SBAU241 – November 2014
Submit Documentation Feedback
3.
Copyright © 2014, Texas Instruments Incorporated
ADS7043EVM-PDK Initial Setup
Figure 2.
Figure 4.
Figure 5 illustrates.
