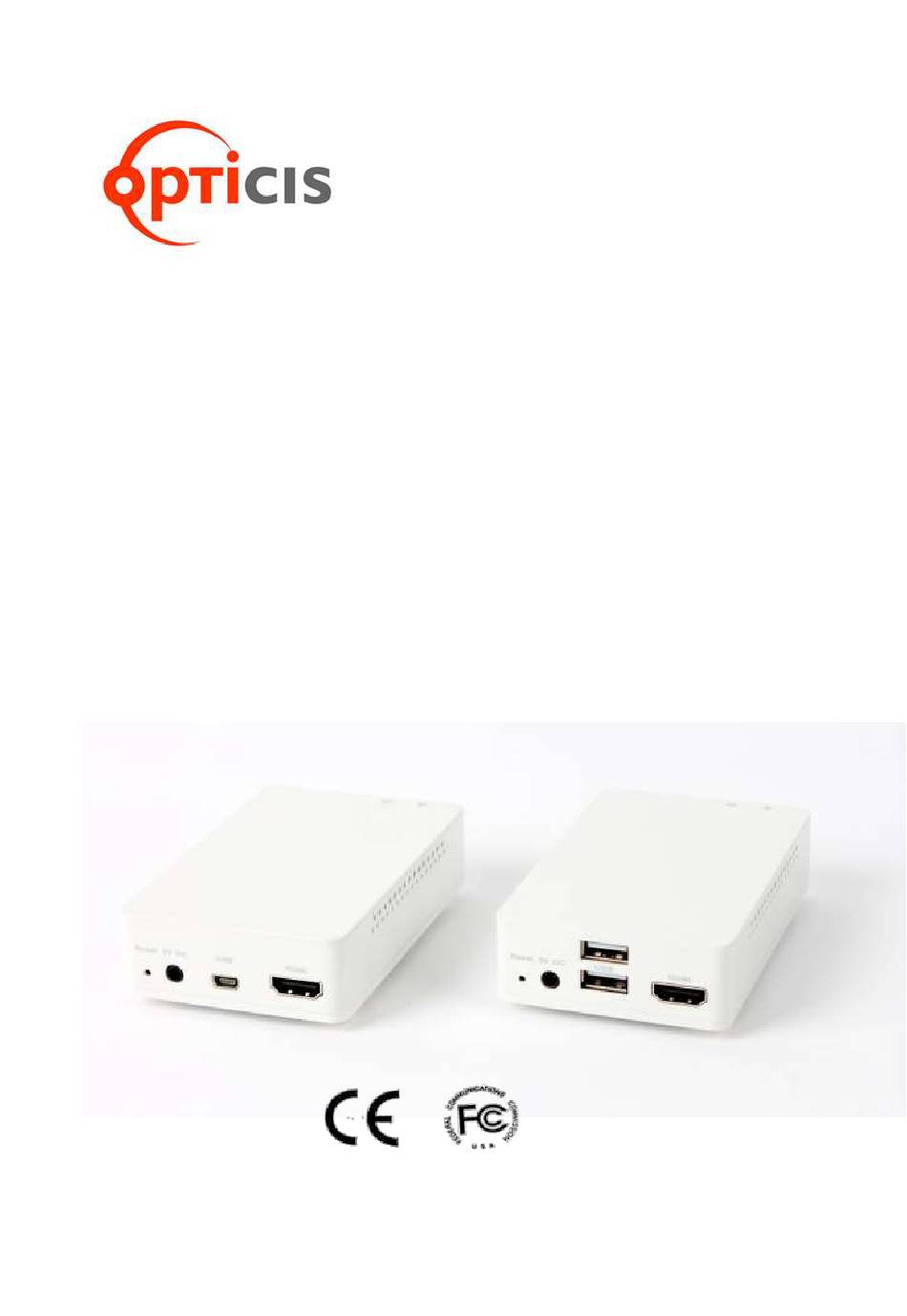

- Page 1 Ver. 2.0 WWW.OPTICIS.COM Wireless HDMI Extender, HDWX-100-TR User’s Manual Doc No. : OE-HW150102 / Rev2.0 - 1 -...
-
Page 2: Table Of Contents
Contents Welcome! .............................- 3 - Product Description ..........................- 3 - Shipping Group ............................- 3 - Supporting Resolutions ........................- 3 - Applications ............................- 4 - Systems Requirements for Setup ......................- 4 - Installation ............................- 5 - LED Indication ............................- 6 - SW &... -
Page 3: Welcome
Product Description The OPTICIS wireless Extender, HDWX-100-TR is designed for wireless signals extending of HDMI, keyboard and mouse. The transmitter module HDWX-100-T connected to the HDMI source encodes the HDMI by H.264 and transmits the signal via advanced Wi-Fi, 802.11a/n technology. The receiver module, HDWX-100-R connected to the display receives and decodes wireless signal into HDMI for display. -
Page 4: Applications
1080p24, 1080p30, 1080p50, 1080p60 640x480p60 800x600p60 1024x768p60 1280x768p60 1280x960p60 1280x1024p60 1600x1200p60 1920x1080p60 Note: Some PC resolutions may not be displayed properly. Applications Home AV Video Control room Digital signage ... -
Page 5: Installation
Installation Important: Please keep the installation procedure below. Improper or no operation may result if the start-up sequence is not followed correctly. Note: If you change a source to another source such as PC, Camcorder, DVD Player or Blu-ray player, you have to reset the power of all Txs and Rxs by re-plugging of the +5V power adaptor. -
Page 6: Led Indication
Fig. 2: Configuration of Receiver, HDWX-100-R LED Indication HDWX-100-T and HDWX-100-R have two (2) LEDs for Power and Wireless status located on the top. • Power status LED (Blue) When power is applied, the blue LED will be turned on. •... - Page 7 (S): Move Down Note: (S) means press shortly and release the button, (L) means press the button and hold for 2~3sec and release the button. Note: Basically, GUI is operated on the receiver side and it shall be operated in cases as below; (1) When you connect the transmitter and receiver for the first time (2) To change another transmitter to be connected (3) To change general setting or check system information...
- Page 8 To select a menu, press [M] button. To return the main menu, press and hold [M] button for 2~3sec. To move to the right, press [ ▶ ] button. Step 3 Connectivity menu: To connect to the other transmitter. Step 3-1-1 PIN method for connectivity [default] If user want to find a transmitter to connect or change the other transmitter, press [▼] button to select and press [M] button to connect the transmitter.
- Page 9 Note: When the connection is completed, it exits from GUI menu automatically. Step 3-2 Disconnection To disconnect the transmitter, press [ ] button. ▶ To exit from GUI menu, press and hold [M] button for 2~3sec. To return to the previous page, press and hold [ ▶...
- Page 10 Select one of menus to be used from by pressing [▼] and [M] button. User can edit the name in ‘New title’ by selecting the characters as below. Press [ ▶ ] and [▼] buttons to move and press [M] button to select it. Then, press Complete to save the name.
- Page 11 There are four (4) sub menus in General Settings, Latency Mode, Wireless Channel, WPS method and Black Screen Mode as shown below. Step 4-1 Latency Mode User can select Theater mode or Game mode. Game mode has lower latency than Theater mode. ...
- Page 12 Step 4-3 WPS Method User can select PIN Code or PBC Button. In case of PBC Button mode, user needs to press PBC button on the Tx side for pairing. To exit from GUI menu, press and hold [M] button for 2~3sec. ...
- Page 13 Step 5 System Info menu Press and hold the [M] button for 2~3sec to enter GUI menu. After selecting System Info, press [M] button. To exit from GUI menu, press [M] button for 2~3sec. There are 2 sub menus in System Info, Signal Strength and System Information as below. Step 5-1 User can monitor the current Signal Strength of the receiver as below.
-
Page 14: Product Specifications
Step 5-2 User can check the information of transmitter and receiver such as IP address and MAC address as below. Product Specifications Designed in a small shape with plastic enclosure so as to directly hook up the PC or display ... -
Page 15: Bracket Installation
Storage Temperature: -20~60°C Power Consumption: 7.5W (~1.5A@5V) Size(WDH): 66 x 105 x 25mm Certification: FCC/CE Mechanical Drawing [66x105x25mm] HDWX-100T (Transmitter) and HDWX-100R (Receiver) Bracket Installation Installation of a Bracket to the device (Tx or Rx) After install a bracket to the HDWX-100T/R, fix the bracket to under a desk as a picture below. -
Page 16: 5Ghz Wi-Fi Channels
5GHz Wi-Fi Channels Because of wireless signal regulations, HDWX-100-TR is managed by two different firmwares (including only available channels in specific nations) according to the shipment locations (US version and Europe version). - US Version: US, Korea and others. - Europe Version: Europe, Japan, and others. Available Channels Band DFS (US &Japan) -
Page 17: Warranty Information
(1) year from the date of purchase from Opticis or its authorized resellers. If a product does not work as warranted during the applicable warranty period, Opticis shall, at its option and expense, repair the defective product or part, deliver to customer an equivalent product or part to replace the defective itemor refund to customer the purchase price paid for the defective product. - Page 18 Sungnam-si, Gyunggi-do, 463-782 South Korea Te l: +82 (31) 719-8033 Fax: +82 (31) 719-8032 www.opticis.com tosales@opticis.com For order support, please contact your Distributor or Reseller. For technical support, check with the Opticis web site www.opticis.com or contact techsupp@opticis.com. - 18 -...
