Four (4) fibers Detachable

HDMI Extender

User's Manual for the
HDFX-150-TR
Doc No. : OE-H130903-150 / Rev1.1
Manual Contents
__________________________________________
Manual Contents
Pictorials
Figure 1 - Overall Connection of HDFX-150-TR
Figure 2 - Position of the LED
Figure 3 - Fiber numbering & Caution on both fiber ports
Figure 4 - Connection of optical fiber
1-0 Manual Contents
1-0
1-1
1-2
1-3
1-5
1-6
1-7
1-8
1-9
1-1
1-3
1-3
1-4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HDFX-150-TR and is the answer not in the manual?

Questions and answers

Related Manuals for opticis HDFX-150-TR

Summary of Contents for opticis HDFX-150-TR

  • Page 1: Table Of Contents

    Regulatory Statements Four (4) fibers Detachable HDMI Extender Pictorials Figure 1 – Overall Connection of HDFX-150-TR Figure 2 – Position of the LED Figure 3 – Fiber numbering & Caution on both fiber ports Figure 4 – Connection of optical fiber User’s Manual for the...

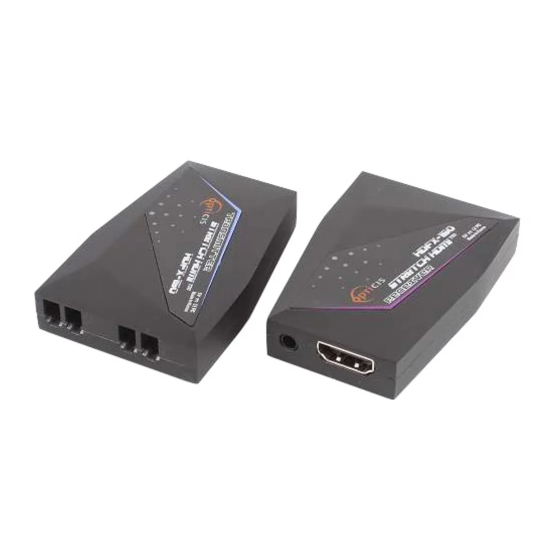

  • Page 2: Welcome! Product Description

    Product Description ▪ Only HDMI TVs or monitors are applicable. New optical HDMI extender, HDFX-150-TR is designed compact enough to be ▪ Proper initial trial of the entire platform with its application using fitted into various installation environments, and enables to transmit WUXGA...

  • Page 3: Installation

    Installation Note 1: The maximum extension length by multi-mode fiber is 300 meters. Important: Please keep the installation procedure below. Improper or no operation may result if the start-up sequence is not correctly followed. Step 1 Carefully unpack the contents in the shipping group. Step 2 Power on the HDMI source and display.

  • Page 4: Troubleshooting

    - Ensure that the HDMI ports are firmly plugged in to the source and display. There are no user serviceable parts. Refer all service and repair issues to Opticis - Ensure that the transmitter and receiver modules plugged correctly to the source or its authorized distributor.

  • Page 5: Product Specifications

    300 meters (985feet) for WUXGA (1920x1200) or 1080p at 60Hz If a product does not work as warranted during the applicable warranty period, Opticis shall, at its option and expense, repair the defective product or part, d refresh rate over four (4) LC multi-mode fibers (50/125um).

  • Page 6: Regulatory Statements

    For order support, please contact your Distributor or Reseller. For technical support, check with the Opticis web site www.opticis.com or contact techsupp@opticis.com...
