Stretch DVI
User's Manual
(For M1-201SA-TR)
Doc No. : OE-D150316-201SA / Rev2.9
TM
Manual Contents
__________________________________________
Manual Contents
Pictorials

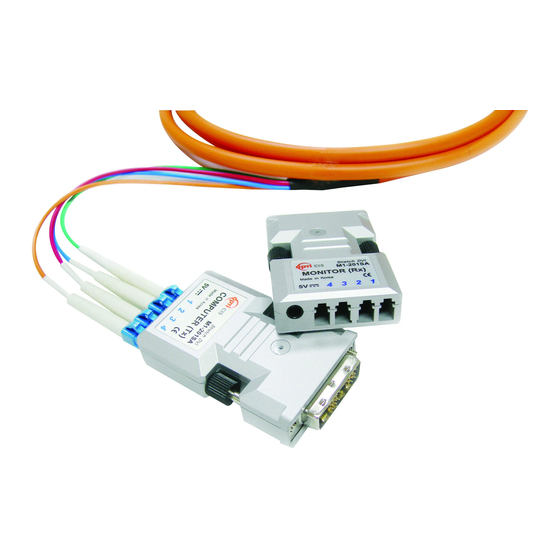

Figure 1 - Optical DVI Extension Module System
Figure 2 - Auto EDID button
Figure 3 - Connection of optical fiber
1-0 Manual Contents
1-0
1-1
1-2
1-3
1-5
1-6
1-8
1-9
1-10
1-1
1-3
1-4
