1500w breaker

Advertisement

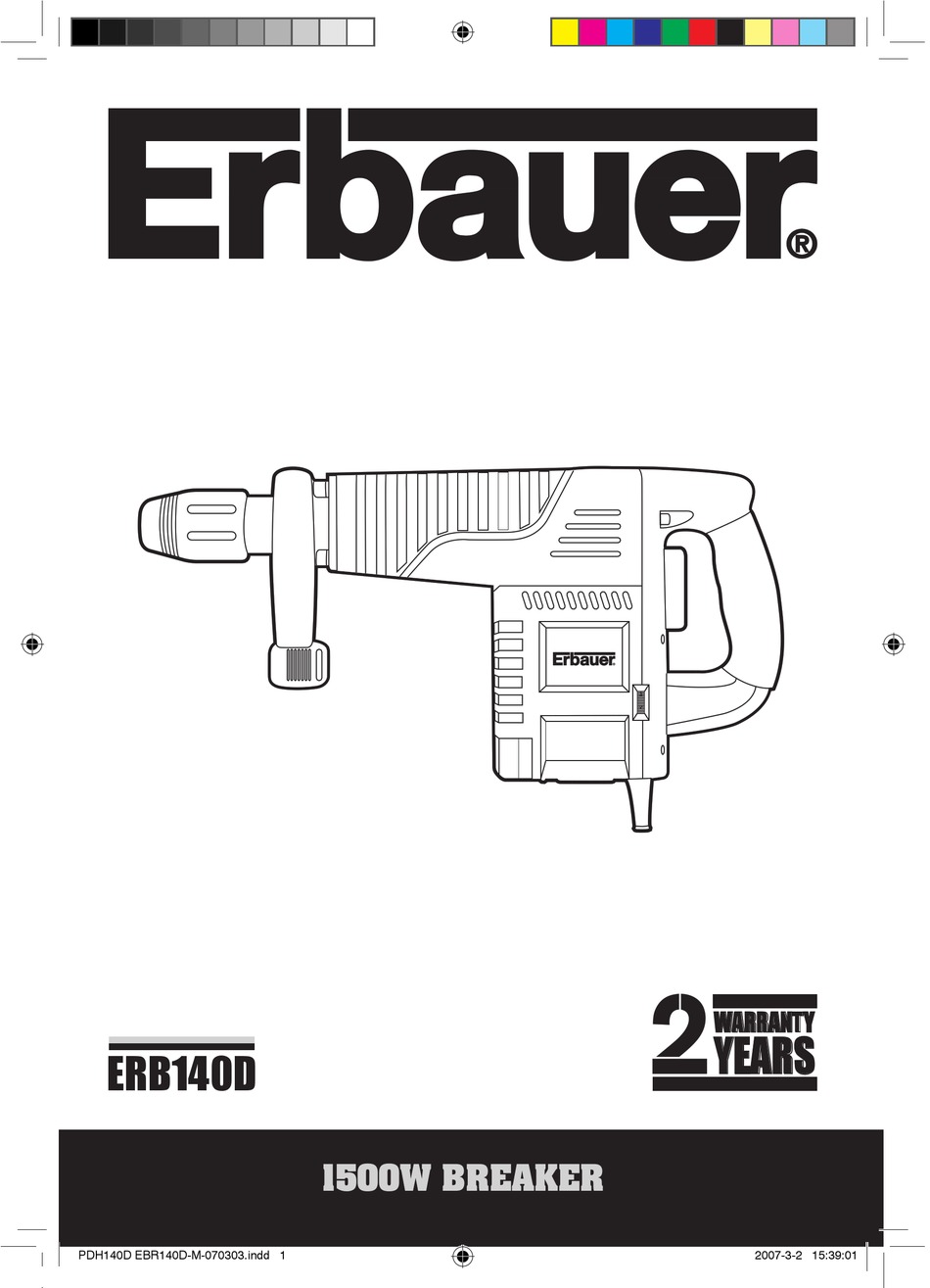

WARRAN TY
YEAR S
ERB140D
1500W BREAKER
PDH140D EBR140D-M-070303.indd 1
2007-3-2 15:39:01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ERB140D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Erbauer ERB140D

  • Page 1 WARRAN TY YEAR S ERB140D 1500W BREAKER PDH140D EBR140D-M-070303.indd 1 2007-3-2 15:39:01...
  • Page 2 PDH140D EBR140D-M-070303.indd 2 2007-3-2 15:39:01...
  • Page 3 Congratulations on your purchase of a quality power tool from Screwfix Direct Ltd. This product should give you reliable service but for your peace of mind this power tool does carry a 24-month guarantee, the terms of which are detailed below. If this product develops a fault within the guarantee period contact Screwfix Direct Ltd on Freephone 0500 41 41 41.
  • Page 4: Safety Instructions

    SAFETY INSTRUCTIONS Warning! Read all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. The term “power tool” in all of the warnings listed below refers to your mains operated (corded) power tool. SAVE THESE INSTRUCTIONS WORK AREA a.
  • Page 5 clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of these devices can reduce dust related hazards.
  • Page 6: Double Insulation

    ADDITIONAL SAFETY RULES FOR YOUR BREAKER 1. Always wear ear protectors. Exposure to noise can cause hearing loss. 2. Always use auxiliary handles supplied with the tool. Loss of control can cause personal injury. 3. Safety boots are recommended at all times. 4.
  • Page 7 FASTENING SLEEVE AUXILIARY HANDLE GREASE BOX COVER ON/OFF SWITCH KNOB POINT CHISEL AND FLAT CHISEL GREASE SPANNER 1500W BREAKER PDH140D EBR140D-M-070303.indd 7 2007-3-2 15:39:02...
  • Page 8: Technical Data

    TECHNICAL DATA Rated voltage: 230V~50Hz Rated power: 1500W Impact frequency: 900-1800/min Impact energy: Protection class: Net weight: 11kg NOISE AND VIBRATION DATA Sound pressure level: 83.5dB Sound power level: 105.0dB Vibration level: 14.73m/s ACCESSORIES Auxiliary handle Flat chisel 25x350mm Point chisel 350mm Spanner Plastic container grease Carbon brush...
  • Page 9 Note: Before using the tool, read the instruction book carefully. Point chisel Total length: 350mm Flat chisel Total length: 350mm Point chisel General description The machine uses a single phase alternating current 230V, 50Hz motor, its compact and robust format makes it versatile and efficient for uses described in specific safety instructions.
  • Page 10 4. Remove the chisel Pull back fastening sleeve, hold and remove tool. (See Fig 2) Note: The chisel tools are gripped firmly by the shank and can not be removed once locked in position. If the chisel tool is not located repeat the installation operation again.
  • Page 11: Maintenance

    8. Change the carbon brush (See Fig 6, 7 & 8) Warning: Make sure that the tool is switched off and disconnected from the mains supply before starting any cleaning or maintenance procedures. The only user serviceable item on the hammer is the carbon brush.The spare brush is provided.
  • Page 12: Troubleshooting

    Do not apply excessive pressure to the tool. Expressive force does not speed up the work. TROUBLESHOOTING 1. If your breaker do not start, check the plug and fuse on the mains supply the plug and fuse on the mains supply first. 2.
  • Page 13: Plug Replacement

    PLUG REPLACEMENT(UK Ireland) If you need to replace the fitted plug then follow the instructions below. IMPORTANT The wires in the mains lead are coloured in accordance with the following code: Blue – Neutral Brown – Live As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug,...
  • Page 14: Declaration Of Conformity

    Declaration of Conformity We, Importer Erbauer (UK) Ltd BA22 8RT Declare that the product 1500W BREAKER ERB140D Complies with the essential health and safety requirements of the following directive: 89/336 EEC, 93/68 EEC. –EMC Directive. 2006/95/EC –Low Voltage Directive. 98/37 EC. –Machinery Directive.
  • Page 15 1500W BREAKER PDH140D EBR140D-M-070303.indd 15 2007-3-2 15:39:04...
  • Page 16 PDH140D EBR140D-M-070303.indd 16 2007-3-2 15:39:04...
