Erbauer ERB383WCH User Manual

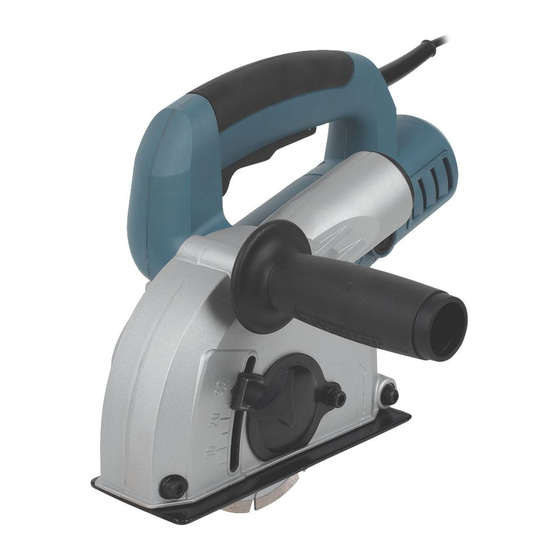

1500w wall chaser
Hide thumbs Also See for ERB383WCH:
Table of Contents

Advertisement

Quick Links

erB383WCh
1500W Wall Chaser

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ERB383WCH and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Erbauer ERB383WCH

Summary of Contents for Erbauer ERB383WCH

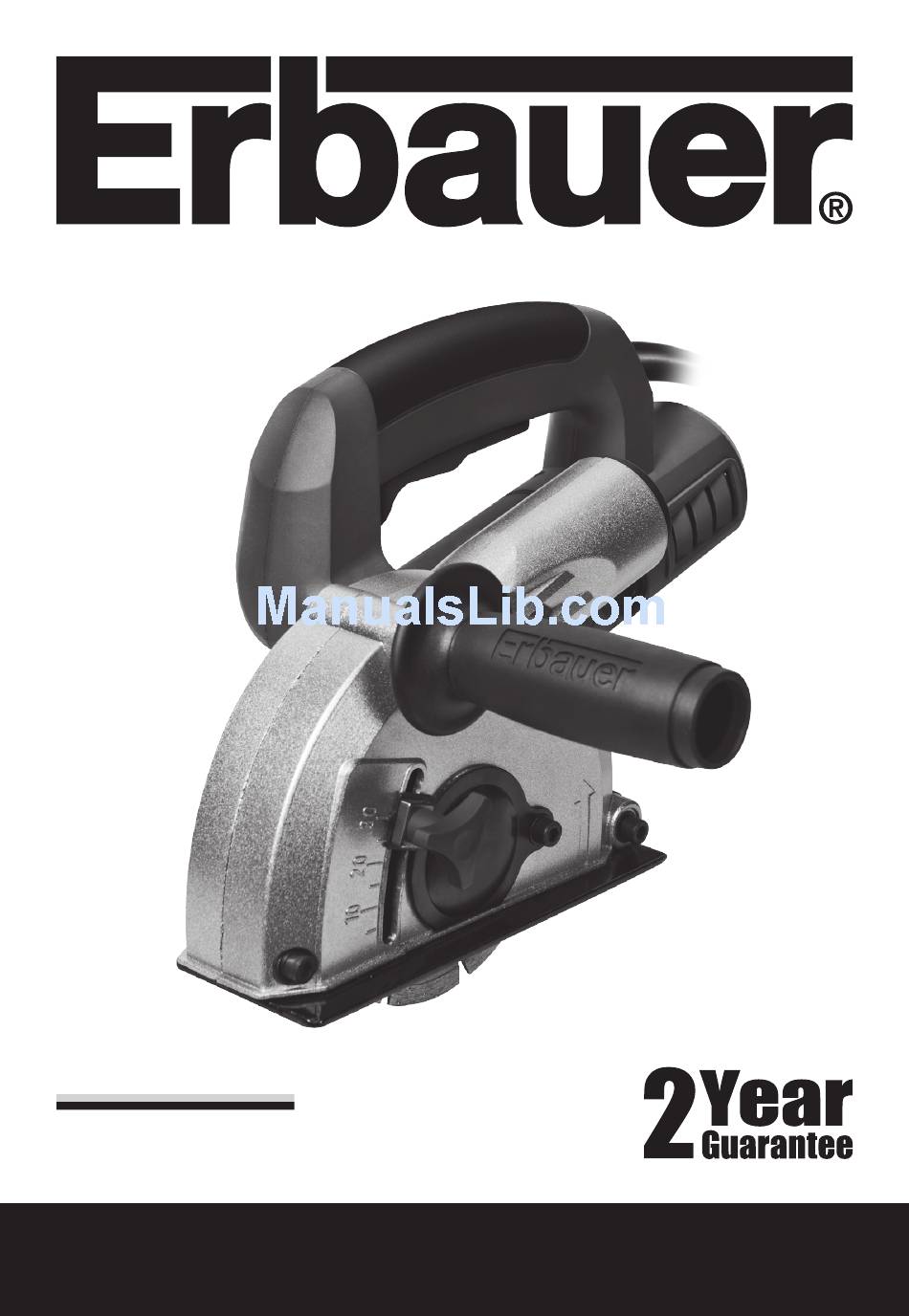

  • Page 1 1500W Wall Chaser...
  • Page 2 Original Instructions (Version 2.0)
  • Page 3 Congratulations on your purchase of a quality power tool from Erbauer (UK) Ltd. This product should give you reliable service but for your peace of mind this power tool does carry a 2 year guarantee, the terms of which are detailed below.

  • Page 4: General Power Tool Safety Warnings

    GeNeral PoWer Tool safeTy WarNiNGs WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
  • Page 5 f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.
  • Page 6 aDDiTioNal safeTy rUles for yoUr Wall Chaser a) The guard provided with the tool must be securely attached to the power tool and positioned for maximum safety, so the least amount of wheel is exposed towards the operator. Position yourself and bystanders away from the plane of the rotating wheel.
  • Page 7 The spinning wheel may grab the surface and pull the power tool out of your control. o) Do not run the power tool while carrying it at your side. Accidental contact with the spinning accessory could snag your clothing, pulling the accessory into your body. p) Regularly clean the power tool’s air vents.

  • Page 8: Additional Safety Rules

    j) Use extra caution when making a “pocket cut” into existing walls or other blind areas. The protruding wheel may cut gas or water pipes, electrical wiring or objects that can cause kickback. aDDiTioNal safeTy rUles: 1. Always wear a dust mask. 2.
  • Page 9 ViBraTioN The European Physical Agents (Vibration) Directive has been brought in to help reduce hand arm vibration syndrome injuries to power tool users. The directive requires power tool manufacturers and suppliers to provide indicative vibration test results to enable users to make informed decisions as to the period of time a power tool can be used safely on a daily basis and the choice of tool.
  • Page 10 Plan your work schedule to spread any high vibration tool use across a number of days. Health Surveillance All employees should be part of an employer’s health surveillance scheme to help identity any vibration related diseases at an early stage, prevent disease progression and help employees stay in work.
  • Page 11 syMBols To reduce the risk of injury, user must read instruction manual Double insulation Warning Wear ear protection Wear eye protection Wear dust mask Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.
  • Page 13 ON/ OFF TRIGGER SWITCH SAFETY BUTTON OF SWITCH ATTACHMENT POINT FOR AUxILIARY HANDLE FIxED GUARD CONNECTION TO DUST ExTRACTION GUIDE WHEEL FLANGE CAP LOCK KNOB FLANGE CAP BASE PLATE OUTER FLANGE DISTANCE WASHERS CAP OF CARBON BRUSH (ON BOTH SIDES) SPINDLE LOCKING BUTTON DIAMOND CUTTING DISC CUTTING DIRECTION...

  • Page 14: Technical Data

    TeChNiCal DaTa Rated voltage 230-240V~50Hz Rated power 1500W Rated speed 8500/min Blade size 125mm Cutting depth 5-30mm Cutting width 8-30mm Protection class Weight 4.1kg Noise iNforMaTioN A weighted sound pressure : 97dB(A) A weighted sound power : 108dB(A) & K 3.0dB(A) Wear ear protection when sound pressure is over 80dB (A)

  • Page 15: Operation

    oPeraTioN NOTE: Before using the tool, read the instruction book carefully. 1. FITTING CUTTING DISCS (See Fig. 1-11) Flange Warning: Please make sure the blade is lock diamond cutting disc which can cut knob concrete, masonry and paving. Always turn off and unplug the tool before fitting the disc.
  • Page 16 Fig. 4 Fig. 5 Fig. 6 Fig. 7 Fig. 8...
  • Page 17 Fig. 8 2. ADJUSTING CHANNEL WIDTH Turn off and unplug the tool. There are 6pcs of distance washers for adjusting the channel width. The thickness of these washers is about 4.3mm. Loose the outer flange anti-clockwise by the spanner (See Fig. 2), take out the distance washers. Position the cutting discs at the expected width (See Fig.

  • Page 18: Replacing Carbon Brushes

    Fig. 12 5. CONNECTING DUST ExTRACTION (See Fig. Your wall chaser is equipped with a dust extraction adapter, which is designed for collect dust task. Make sure it is tightened securely on the dust outlet. Then connect the hose of a vacuum cleaner. First please turn on the vacuum cleaner, then turn on the wall chaser.

  • Page 19: Possible Problems And Solutions

    PossiBle ProBleMs aND solUTioNs Problem Possible cause Solution The electric motor The overheating protection Wait several minutes until the becomes hot and cuts has been activated. machine has cooled down, then out. re-start the machine. The machine switched 1) The overload protection 1) Re-start the machine.

  • Page 20: Maintenance

    MaiNTeNaNCe Remove the plug from the socket before carrying out any adjustment, servicing or maintenance. Your power tool requires no additional lubrication or maintenance. There are no user serviceable parts in your power tool. Never use water or chemical cleaners to clean your power tool.

  • Page 21: Plug Replacement

    PlUG rePlaCeMeNT (UK & irelaND oNly) If you need to replace the fitted plug then follow the instructions below. IMPORTANT The wires in the mains lead are colored in accordance with the following code: BLUE = NEUTRAL BROWN = LIvE As the colors of the wires in the mains lead of this appliance may not correspond with the colored markings identifying the terminals in your plug,...

  • Page 22: Declaration Of Conformity

    Waste Electrical and Electronic Equipment (WEEE) 2002/96/EC and 2003/108/EC Standards conform to: EN 55014-1 EN 55014-2 EN 60745-1 EN 61000-3-2 EN 61000-3-3 Authorised Signatory and technical file holder Date: 07/04/11 Signature: Name / title: Peter Harries / Quality Manager Erbauer (UK) Ltd. Trade House, Mead Avenue, BA22 8RT...
