INSTALLATION INSTRUCTIONS

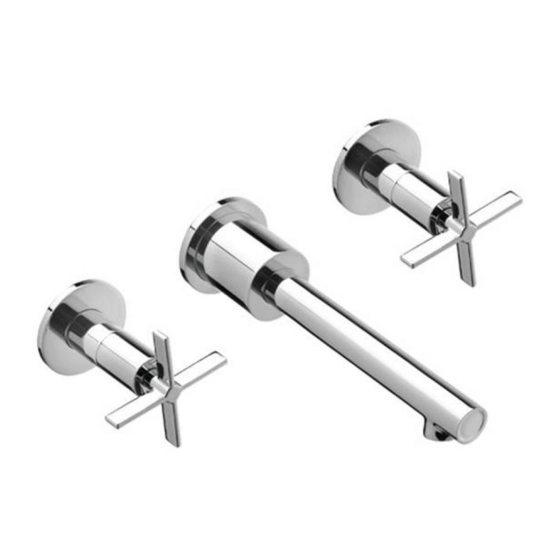

Percy
®
Wall-Mounted Vessel
Lavatory Faucet
Tri-Spoke Handle
Model D35105470
Cross Handle
Models D35105454, D35105454RB
Cylinder Handle
Models D35105450, D35105450RB
To be used with D35000450.191
Dual Control Wall Mount Lavatory
Thank you for selecting DXV. To ensure that your
installation proceeds smoothly, please read these
instructions carefully before you begin.

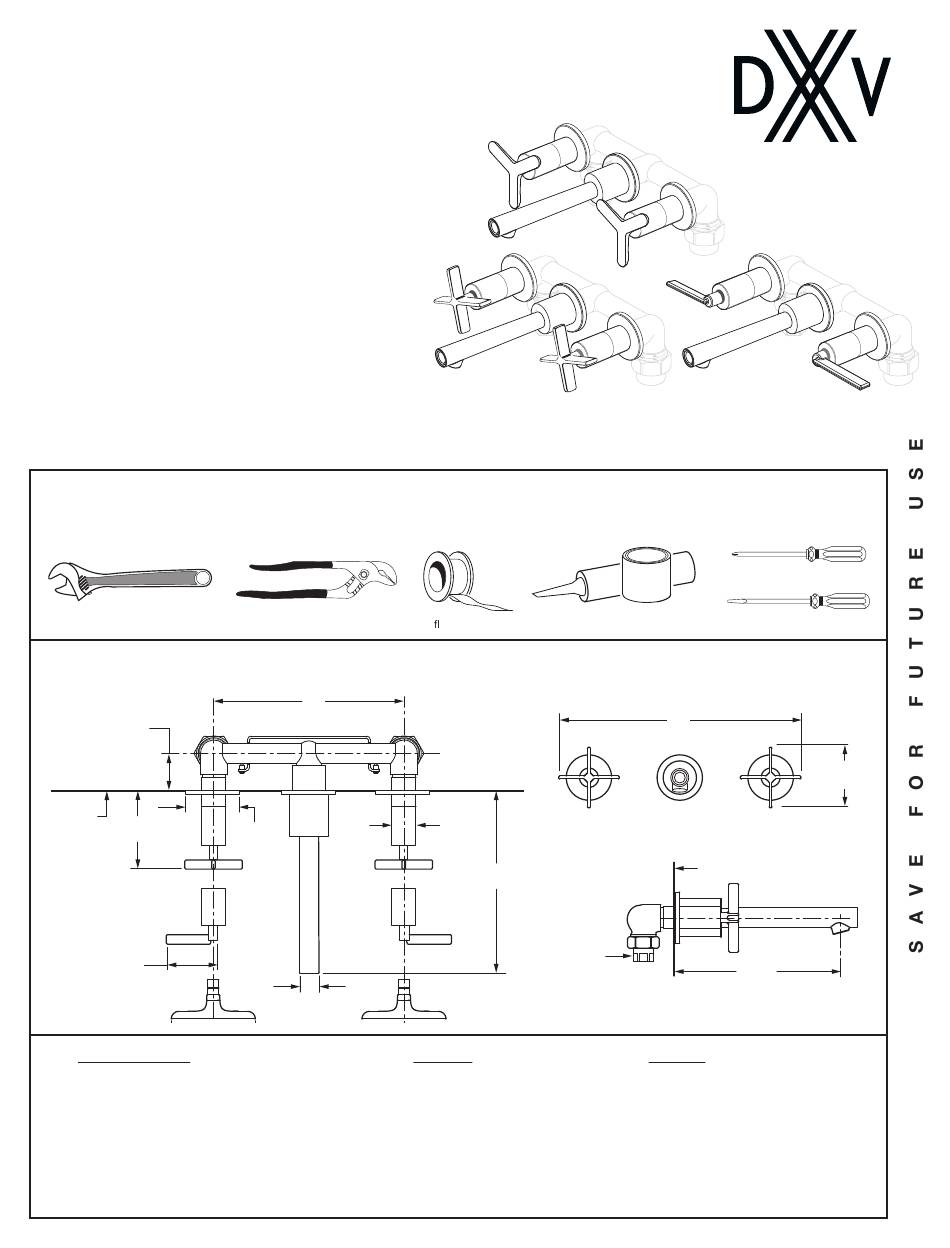

RECOMMENDED TOOLS AND MATERIALS
Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing
supply stores. It is essential that the tools and materials be on hand before work is begun.
Adjustable Wrench
ROUGHING-IN DIMENSIONS:
• For reference
1-5/8" to 2-1/2"
(41 mm to 62 mm)
FINISHED
WALL
2-1/2"
(63 mm)
(77 mm)
In the United States:
DXV
One Centennial Avenue
Piscataway, New Jersey 08855
Attention: Director of Customer Care
For residents of the United States, warranty
information may also be obtained by calling
the following toll free number: (800) 227-2734
www.DXV.com
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2017
Rough
Channel Locks
8"
(203 mm)
2-3/8" D.
(60 mm)
TYP.
CROSS
HANDLE
LEVER
HANDLE
7/8" (22 mm)
3"
D35105454
D35105454RB
Te on Tape
Plumbers' Putty or Caulking
1"
(26mm)
8-3/8"
(213 mm)
1/2" NPT
UNION INLETS
TRI-SPOKE
HANDLE
In Canada:
DXV
5900 Avebury Road
Mississauga, Ontario
L5R 3M3
Canada
Toll Free: 1-800-387-0369
Local: 905-306-1093
Fax: 1-800-395-1498
www.DXV.ca
- 1 -
D35105470
D35105450
D35105450RB
Phillips Screwdriver
Flat Blade Screwdriver
11"
(279 mm)
3-3/16"
(80 mm)
FINISHED WALL
7-5/8"
(194 mm)
In Mexico:
DXV
Via Morelos 330
Col. Santa Clara Coatitla
Ecatepec, Estado de México 55540
Toll Free: 01-800-8391200
www.DXV.mx
M965531 Rev. 1.7 (1/18)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for DXV Percy D35105470
Summary of Contents for DXV Percy D35105470
-
Page 1: Installation Instructions
Models D35105454, D35105454RB Cylinder Handle Models D35105450, D35105450RB To be used with D35000450.191 Rough Dual Control Wall Mount Lavatory Thank you for selecting DXV. To ensure that your D35105454 D35105450 D35105454RB D35105450RB installation proceeds smoothly, please read these instructions carefully before you begin. - Page 2 INSTALL WALL BRACKET WOOD SCREWS CROSS BRACE • Determine where the finished wall location will be. This measurement is very important! Note: The rough-in measurement from the finished wall is; 1-9/16" (40 mm) minimum and 2-7/16" (62 mm) maximum. This is a 7/8" (22 mm) tolerance. See rough-in illustration. •...
- Page 3 INSTALL HANDLES • Slide BARREL SLEEVE WASHER (1) onto VALVE STEM (2) until WASHER (1) is on the smooth section of the VALVE STEM (2). • Thread BARREL SLEEVE (3) onto VALVE BODY (4) and tighten. • Make sure ESCUTCHEON O-RING (5) is in place. Slide ESCUTCHEON (6) onto BARREL SLEEVE (3) flush against finished wall. •...
- Page 4 ® Percy Wall-Mounted Vessel Lavatory Faucet MODEL NUMBERS Tri-Spoke Handle D3510547 Cross Handle D35105454 / D35105454RB Cylinder Handle D35105450 / D35105450RB Replace the “YYY” with appropriate finish code POLISHED CHROME BRUSHED NICKEL M964641-YYY0A SPOUT ESCUTCHEON KIT M964625-YYY0A HANDLE ESCUTCHEON KIT H960854.191 ADAPTER RECEIVER H960853.191...
