INSTALLATION INSTRUCTIONS
Percy
Single Control Lavatory
™
and Vessel Faucet

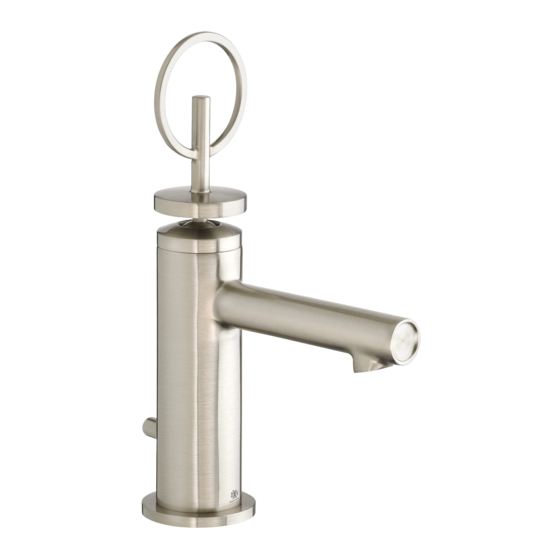

Loop Handle Lavatory - Model D35105104
Pixie Handle Lavatory - Model D35105100
Loop Handle Vessel - Model D35105154
Pixie Handle Vessel - Model D35105150
Thank you for selecting DXV by American Standard.
To ensure that your installation proceeds smoothly,
please read these instructions carefully
before you begin.
RECOMMENDED TOOLS AND MATERIALS
Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing,
supply stores. It is essential that the tools and materials be on hand before work is begun.
Flat Blade Screwdriver
ROUGHING-IN DIMENSIONS:
• For reference
14-7/8"
(378mm)
14-1/8"
(359mm)
In the United States:
DXV by American Standard
One Centennial Avenue
Piscataway, New Jersey 08855
Attention: Director of Customer Care
For residents of the United States, warranty
information may also be obtained by calling
the following toll free number: (800) 227-2734
www.DXV.com
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2013
Channel Locks
6-3/4"
(171mm)
4-1/2"
2-1/4"
(114mm)
(57mm)
8-15/16"
(227mm)
9-5/8"
(244mm)
2-1/4"
(57mm)
NOTE: MOUNTING HOLE
1-1/4" (32mm) D.
In Canada:
DXV by American Standard
5900 Avebury Road
Mississauga, Ontario
L5R 3M3
Canada
Toll Free: 1-800-387-0369
Local: 905-306-1093
Fax:
www.DXV.ca
6-3/4"
(171mm)
3-3/4"
8-13/16"
(95mm)
(223mm)
4-1/4"
4-1/2"
(108mm)
(114mm)
3-5/8"
(92mm)
1-1/2"
(38mm) MAX.
1-1/4" OD
(32mm OD)
SUPPLY CONNECTIONS
ARE 3/8" COMPRESSION
1-800-395-1498
- 1 -
Adjustable Wrench
3"
PIXIE
(76mm)
HANDLE
9-9/16"
(243mm)
2"
(51mm) MAX.
In Mexico:
DXV by American Standard
Via Morelos 330
Col. Santa Clara Coatitla
Ecatepec, Estado de México 55540
Toll Free: 01-800-8391200
www.DXV.mx
M 96 5 53 0 Rev. 1 .3
2-7/16"
(63mm) D.
LOOP
HANDLE
1-13/16"
(46mm) D.
1-11/16"
(43mm) D.
MOUNTING
SURFACE
20"
(508mm)
FLEXIBLE
HOSES
Advertisement
Table of Contents
Related Manuals for DXV Percy D35105104
Summary of Contents for DXV Percy D35105104

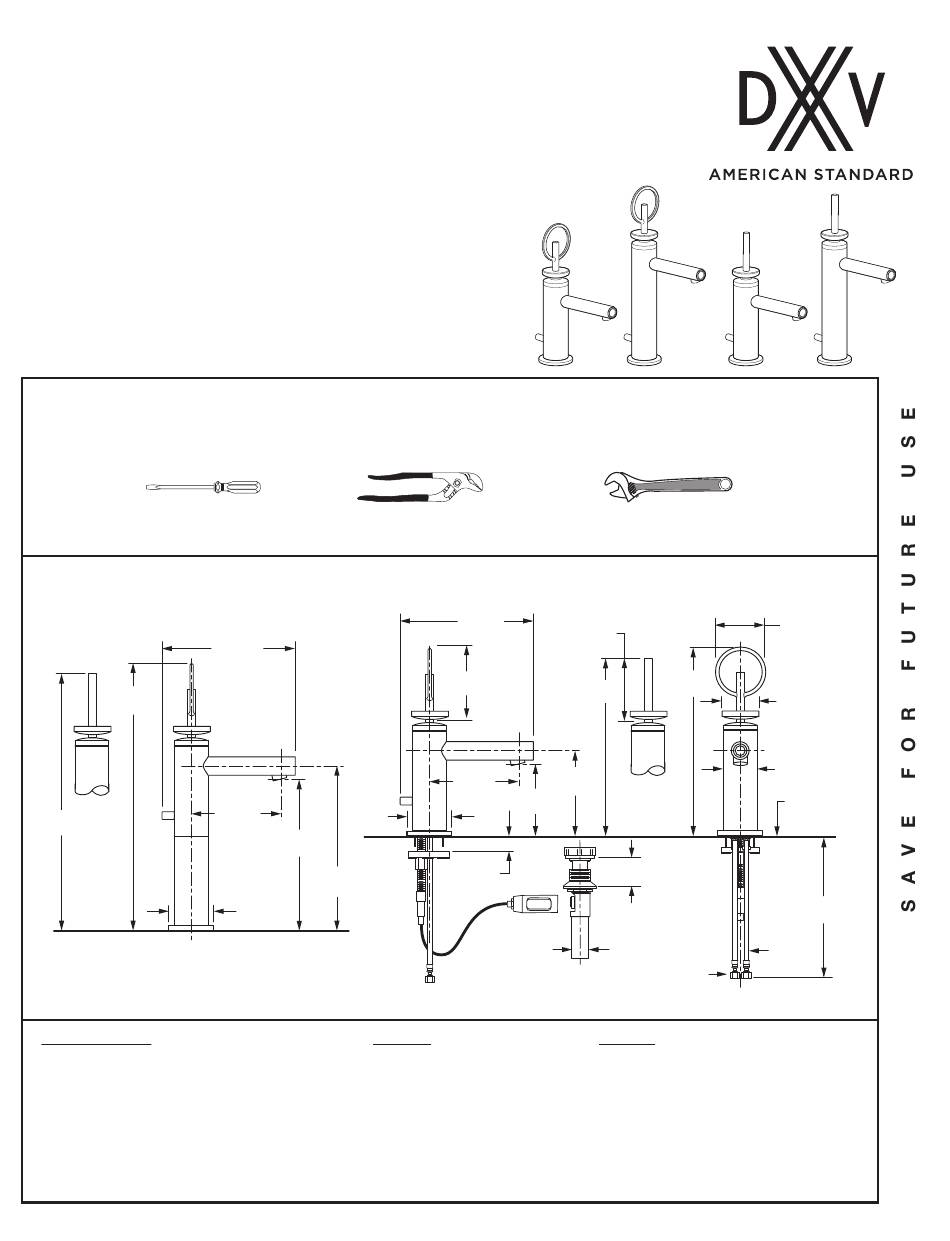

- Page 1 Pixie Handle Lavatory - Model D35105100 Loop Handle Vessel - Model D35105154 Pixie Handle Vessel - Model D35105150 Thank you for selecting DXV by American Standard. To ensure that your installation proceeds smoothly, please read these instructions carefully before you begin.
- Page 2 INSTALL FAUCET CAUTION Turn off hot and cold water supplies before beginning. • Seat O-RING SEAL (1) into under side of FAUCET BASE (2). • Feed FAUCET SUPPLIES (3), MOUNTING STUD (4) and DRAIN CABLE ASSEMBLY (8) through the mounting hole of lavatory or mounting surface.
- Page 3 INSTALL POP-UP DRAIN Fig. A. Fig. B. • Remove CLEAR PLASTIC COVER (1). Fig. A. DRAIN • Remove FOAM SPACER (2) from under BODY DRAIN POP-UP (3). Fig. A. • Tighten TAILPIECE (4) on DRAIN BODY before installing DRAIN BODY. Fig. B. REMOVE MOUNTING WASHERS Fig.
- Page 4 ATTACH CABLE CONNECTOR Fig. A. Fig. B. • Thread CABLE CONNECTOR (1) clockwise onto DRAIN BODY CONNECTION (2) and hand tighten. Fig. A. Your new POP-UP DRAIN installation is now complete. Fig. B. Note: Tailpeice on pop-up drain is 1-1/4" (32mm) O.D. Fig. B. 1-1/4"...
- Page 5 TEST INSTALLED FITTING • With HANDLE (1) in OFF position, remove AERATOR (3). Turn on WATER SUPPLIES (2) and check all connections for leaks. • Operate HANDLE (1) to ush water lines thoroughly. Replace AERATOR (3). CHECK DRAIN CONNECTIONS • Operate POP-UP KNOB (4) and ll lavatory with water. Check that DRAIN STOPPER (5) makes a good seal and retains water in Sink.
- Page 6 Speed Connect Drain ® Troubleshooting Guide If sink does not hold water even though Stopper is in the “down” position: • Follow CABLE ADJUSTMENT PROCEDURE. If Stopper does not raise up fully or sink drains too slowly: • Follow CABLE ADJUSTMENT PROCEDURE. If you need to remove the Stopper: •...
- Page 7 STOPPER INSTALLATION PROCEDURE The Stopper can be installed two ways, “Locked” Mode (Stopper cannot be removed) or “Unlock” Mode (Stopper is removable). Locked Mode: • Look at the Plastic Loop at the bottom of the Stopper and notice Fig. G. that the Loop is on one side of the Stopper.
- Page 8 Percy ™ Single Control Lavatory and Vessel Faucet MODEL NUMBERS Lavatory Fig. G. Loop Handle D35105104 Pixie Handle M964631-YYY0A D35105100 LOOP HANDLE KIT (D35105104, D35105154) Vessel Loop Handle D35105154 Pixie Handle D35105150 DRAIN M964633-0070A Replace the "YYY" or "XXX" with CARTRIDGE KIT appropriate nish code POLISHED CHROME...
