Rf Systems; When Used In Conjunction With Smartstart; D2D Port Configuration - Directed Directechs DS3+ Installation Manual

RF Systems

An RF System consists of one or multiple remotes, a Control Center (antenna), and an antenna cable – various combinations exist.
An RF System allows the vehicle owner to control the system with enhanced range. Two-way models are available. Please follow
the instructions included with the kit for appropriate installation and programming information.

When used in conjunction with SmartStart

To enable D2D communication between the DS3+/DS4+ and the SmartStart one of the following actions must be performed
before providing power to the SmartStart unit:
• SmartStart with Loops – The brown loop must be cut.
• SmartStart with Pigtails – The gray wire must be connected to a ground source.

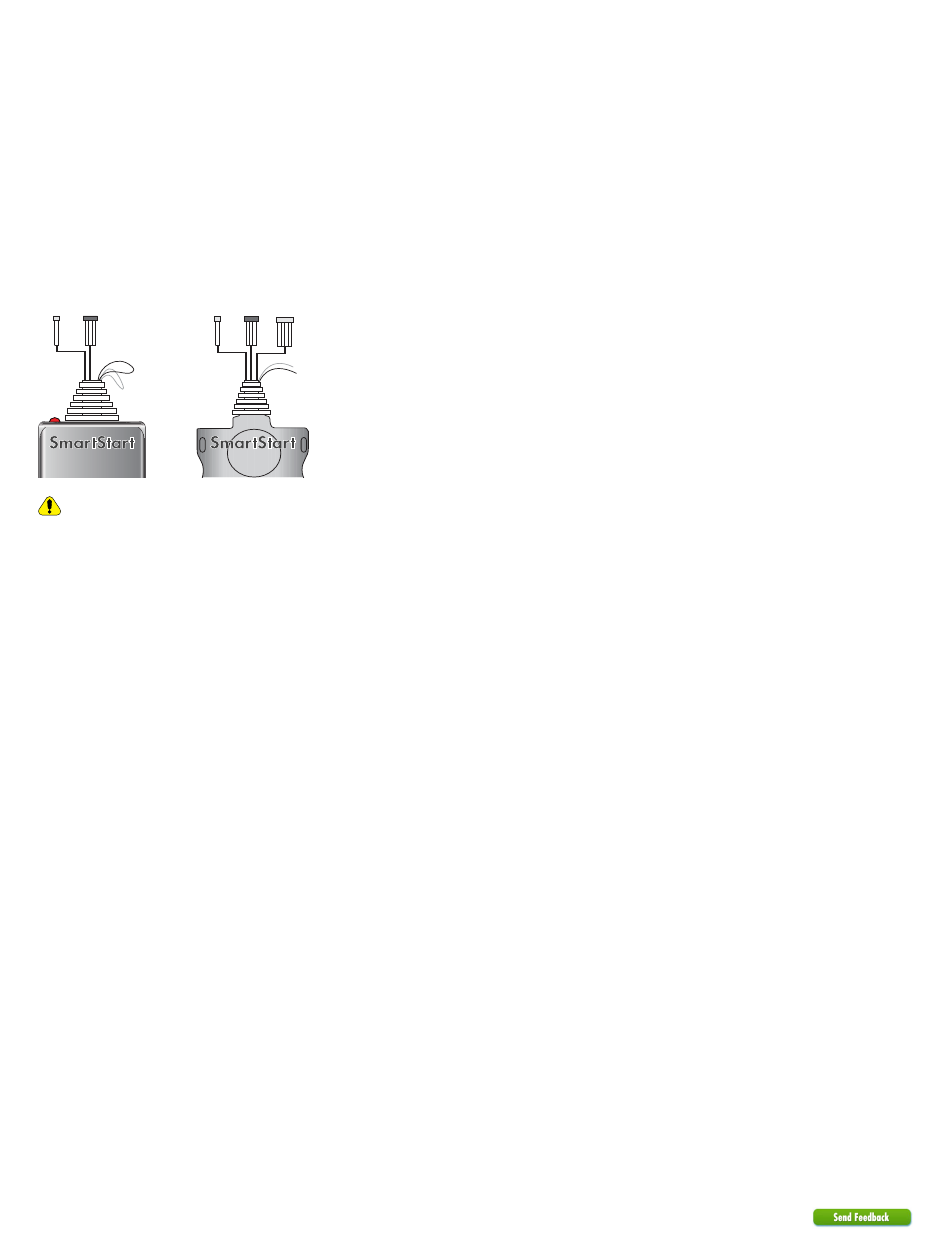

Loops
DO NOT connect the SmartStart 2-pin power harness when using the DS3+/DS4+. Power and ground will be provided by
the D2D connector on the module. Refer to the SmartStart documentation for further details.

D2D port configuration

The system will automatically configure the D2D ports based on your selections in the module programming. The white D2D port is
reserved for SmartStart. To ensure proper functionality with SmartStart, it is important that it is selected in the system programming
of the DirectLink application or via the online web tool.
Note: Both black D2D ports are reserved for the Control Center (antenna) and 8504D Combo Sensor.
